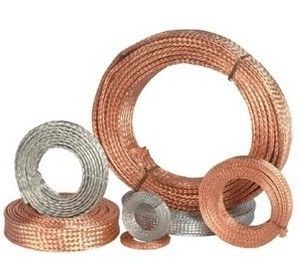

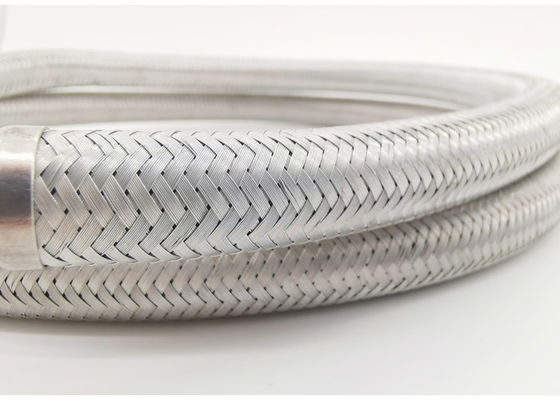

100MM Metal Braided Shielding Copper Sleeve Wiring Harness Bushing

100MM Metal Braided Shielding Copper Sleeve Wiring Harness Bushing

100MM Metal Braided Shielding Copper Sleeve Wiring Harness Bushing
100MM Metal Braided Shielding Copper Sleeve Wiring Harness Bushing
100MM Metal Braided Shielding Copper Sleeve Wiring Harness Bushing
Product Details:
Place of Origin: Shenzhen of China
Brand Name: Huiyunhai
Certification: UL,RoHS,SGS,REACH,ISO
Model Number: HYH-STS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard export carton
Payment Terms: T/T, Western Union
Supply Ability: 3 million meters per month
Contact Now
Detailed Product Description
Product Name: Metal Braided Shielding Copper Sleeve Application: High Temperature
Rated Voltage: UL-94-V Wire Gauge: 0.10-0.25mm
Sample: Free Material: Tinned Copper/pure Copper
High Light:

100MM Metal Braided Shielding Copper Sleeve

,

2MM Metal Braided Shielding Copper Sleeve

,

100MM tinned copper braid shield

100MM Metal Braided Shielding Copper Sleeve Wiring Harness Bushing



Ground & Shield Your Wires & Cables

(Previously known as Metal Braid) Our skill with braided sleeving extends to many materials including tinned copper for a variety of applications. Our tinned copper braid is perfect for shielding on harnesses and cables.
High end automotive, heavy equipment and industrial applications have always used braided metal for secure and efficient grounding solutions. Our braided tinned copper is a perfect combination of economy and durability, and will provide many years of use even in exposed applications.
When installed, Metal Braid provides full coverage and is great for covering and protecting hoses on hot rods and motorcycles.
100MM Metal Braided Shielding Copper Sleeve Wiring Harness Bushing 0

Application:

100MM Metal Braided Shielding Copper Sleeve Wiring Harness Bushing 1



Certifications:

100MM Metal Braided Shielding Copper Sleeve Wiring Harness Bushing 2
100MM Metal Braided Shielding Copper Sleeve Wiring Harness Bushing 3

Product Specifications:
1. Width: 1mm - 100mm;
2. Length: 100m - 500m a roll for normal package OR 100ft-250ft a roll for small package
3. The extended range:50% - 150%;
4. Can provide free samples of 5 meter.

Product Parameter:

Copper braided sleeving parameters table
Standard square Exact square group*strand*sleeve/ single thread Width for reference Thickness for reference Material
2 2 24*5*1/0.15 5 1 Bare copper/tinned copper
2.5 2.5 24*6*1 /0.15 6 1 Bare copper/tinned copper
3.5 3.5 36*5*1/0.15 8 1.5 Bare copper/tinned copper
4 4 24*10*1/0.15 7 1.5 Bare copper/tinned copper
6 6 36*10*1/0.15 11 1.5 Bare copper/tinned copper
8 8 48*10*1/0.15 13 1.2 Bare copper/tinned copper
10 10 40*15*1/0.15 15 2 Bare copper/tinned copper
10.18 48*12*1/0.15 16 1.5 Bare copper/tinned copper
12 12-12.72 48*15*1/0.15 18 1.8 Bare copper/tinned copper
16 16-16.96 48*20*1/0.15 22 2 Bare copper/tinned copper
20 20-21.20 48*25*1/0.15 25 2 Bare copper/tinned copper
25 25-25.45 48*30*1/0.15 28 3 Bare copper/tinned copper
25.45 48*15*2/0.15 20 3.5 Bare copper/tinned copper
35 33-33.93 64*30*1/0.15 40 2.2 Bare copper/tinned copper
33.93 48*20*2/0.15 26 3.2 Bare copper/tinned copper
50 50-50.87 64*45*1/0.15 50 3 Bare copper/tinned copper
50.87 48*30*2/0.15 30 3.2 Bare copper/tinned copper
50.89 48*20*3/0.15 28 4.8 Bare copper/tinned copper
75 75-76.34 96*45*1/0.15 32 3.5 Bare copper/tinned copper
76.34 48*30*3/0.15 36 5 Bare copper/tinned copper
95 95-95 48*28*4/0.15 35 6 Bare copper/tinned copper
100 100-100.09 96*59*1/0.15 80 4 Bare copper/tinned copper
120 120-127.23 48*30*5/0.15 42 7 Bare copper/tinned copper


Storage:
1. Please keep the copper braided sleeve in a dry environment. If conditions permit, desiccant can be put into the copper braided sleeve’s spool when it is received.

2. Although the copper braided sleeve has a long storage life, it may turn black due to oxidation. Please use it on the product as soon as possible to maintain a uniform color.

Packing And Shipping:

Copper braided sleeve is heavy, generally recommended by sea, if the customer needs,find us to pay custom plastic disk so that the transport process will not burst.

FAQ:

  • What is your MOQ?
    Normally our MOQ for each size is 500 meters. If you think it is too much, we can discuss according to your requirement in details.
    2. Can you offer free sample?
    Yes, we can provide free samples of 5m.


3. What is your delivery time?
We will deliver in 15-20 work days.
4. Can you accept mixed products in one container?
Yes, we accept for sure.
