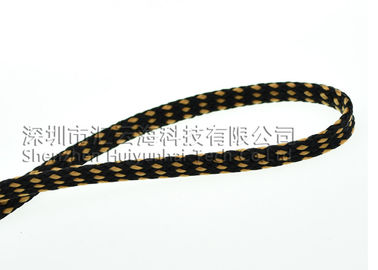

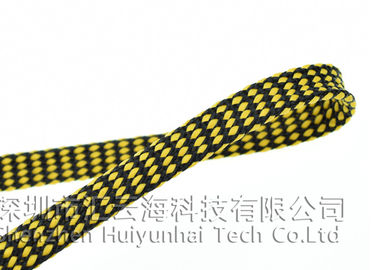

Cable Shielding Halogen Free Cotton Braided Cable Sleeve for Snakeskin Audio Power Cable
Application
Widely used in bounding and protecting of electrical cables, automobile and aviation sectors.
It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment,
1. Automobile wires protection
2. Structured cabling system
3. A/V cables & HDMI cables
4. Industrial hoses & tubes protection
Introduction
Cotton braided sleeve is mainly used in the industry bundle of wires,protection of hose cable in automation,heavy machinery,automaobile and marine industries.In addition, there're widely used in the computer cable,automation,fiber opticable,audio,video,submersible cables,pipelines and military products etc.It protects the line from abrasion and plays a very good role in prolonging the service life of the line.
Sizes:
Nominal
Size |
Product
Part # |
Expansion Range |
Standard Spool Put-Ups |
| Min. |
Max. |
Bulk |
Shop |
1/8"
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
1"
1 1/4"
1 1/2"
1 3/4" |
CS0.13
CS0.25
CS0.31
CS0.38
CS0.50
CS0.63
CS0.75
CS1.00
CS1.25
CS1.50
CS1.75 |
1/16"
1/8"
7/32"
1/4"
5/16"
7/16"
9/16"
3/4"
1"
7/8"
1 3/4" |
1/4"
5/16"
7/16"
1/2"
5/8"
7/8"
1"
1 1/8"
2"
1 21/32"
1 55/64" |
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100' |
25'
25'
25'
25'
25'
25'
25'
25'
25'
25'
25' |
