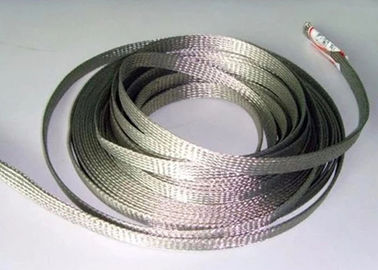

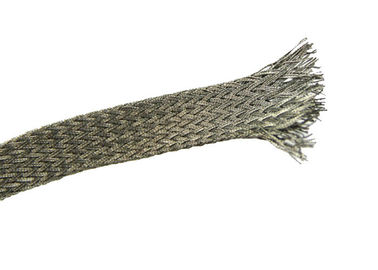

Custom Diameter Tinned Copper Braid Shield For Cable Wire Grounding Harness

Custom Diameter Tinned Copper Braid Shield For Cable Wire Grounding Harness

    • Custom Diameter Tinned Copper Braid Shield For Cable Wire Grounding Harness
    • Custom Diameter Tinned Copper Braid Shield For Cable Wire Grounding Harness
  • Custom Diameter Tinned Copper Braid Shield For Cable Wire Grounding Harness

    Product Details:

    Place of Origin: Shenzhen of China
    Brand Name: Huiyunhai
    Certification: UL, RoHS, REACH, SGS, ISO
    Model Number: HYH-TS

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiable
    Packaging Details: standard export carton,special packing
    Contact Now
    Detailed Product Description
    Product Name: Tinned Copper Braided Sleeving Diameter: Custom
    Usage: Cable Shielding And Conducting Type: Insulation Sleeve
    Feature 1: Shielding And Conducting Feature 2: Halogen Free

    Insulation Tinned Copper Braided Sleeving For Cable Wire Grounding Harness





    Application of tinned copper braided sleeving:

    It is Mainly used for communication system,electronic medical equipments,military equipments as well.
    It's great for applications where light weight and high performance are needed. Such applications may include computer systems, electronic office equipment, medical electronics, communications systems and many more.



    metal tinned copper braided sleeving:



    Copper foil shielding sleeving is wowen with copper foil filament,it is used for various electrical and insustrial fields where EMI shielding,excellent protection and lightweight are required.It is lighter and more flexible than tinned cooper braided sleeving,it is a perfect combination of economy and durability,it can be used as connectors with highly flexible and easily to install.



    braided copper wire used for the flexible conductor of electric installation,switch gear,electric frunace,storage battery,etc.



    Attention:If you have any other special specifications, please provide drawings or samples, our company can customize the products according to your request.


    Application of tinner copper braided sleeve



    1. copper braided sleeve used for the flexible conductor of electric installation,switch gear,electric frunace,storage battery,etc.



    2. Tinned copper braided wire is used as flexible jointing wire of electric appliance, switch appliance electric stove and storage battery etc. such as Cable, CRT Assembly Wire, Television, Computer Monitor.ETC signal pickup instruments. Braided copper wire can be provided rolled flat or in tubular form. Flat braids are generally used for flexible connections, electrical leads and grounding straps.





    Protection Sleeve:



    1) Multi-purpose metal braid provides shielding and grounding for equipment or wire harnesses , to protect your investment.

    2) Expandable design allows for quick and easy installation of cable or wire bundles

    3) Quality tinned copper braid can be easily soldered to connectors and used for custom-length earth straps.

    4) Resists chemicals and the elements for use in rugged or exposed applications

    5) Durable construction provides superior protection from accidental cuts or consistent abrasion

    6) Easily cuts with shears, however heat shrink or electrical tape is recommended to terminate ends, to prevent them from fraying.



    Technical data:



    Material: Copper filament
    Operating range - 40°C - +150°C
    Flammability VW-1
    Standard colour Tinned colour
    Certificate ROHS
    Cutting tool Scissors





    Functions of Tinned Copper Braided Sleeving:







    HYH-012 12.0 8.0---20.0 100m/spool
    HYH-015 15.0 10.0---23.0 100m/spool
    HYH-020 20.0 13.0---28.0 100m/spool
    HYH-025 25.0 18.0---32.0 100m/spool
    HYH-030 30.0 20.0---40.0 100m/spool
    HYH-040 40.0 30.0---50.0 50m/spool
    HYH-050 50.0 40.0---60.0 50m/spool
            Unit:mm









    NAME 3/4" Tinned Copper Metal PET Expandable Braided Sleeving For Cable Harness
    Introduction

    6MM Stainless steel 304 metal braided sleeving is a high temperature, heat and flame resistant thermal insulating sleeve that will stand 900°C continuous exposure. The base high temperature braided fiberglass sleeve is fabricated from high quality type E fiberglass that will not burn. The sleeve is then coated with a vermiculite dispersant adds abrasion resistance and anti-fray properties



    TYPE EMI, RFI, ESD Protection
    Material Tinned Copper
    Application

    EMI, RFI, ESD protection

    Grounding straps

    Engine dress-up

    Military applications

    Extreme blowout protection

    Expands for easy installation



    Specification By customers design
