Polyester High Temp Braided Sleeving Good Flame Retardancy For Protecting Wire

Polyester High Temp Braided Sleeving Good Flame Retardancy For Protecting Wire

  • Polyester High Temp Braided Sleeving Good Flame Retardancy For Protecting Wire
  • Polyester High Temp Braided Sleeving Good Flame Retardancy For Protecting Wire
Polyester High Temp Braided Sleeving Good Flame Retardancy For Protecting Wire
Product Details:
Place of Origin: Shenzhen of China
Brand Name: Huiyunhai
Certification: UL, RoHS, REACH
Model Number: HYH
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Supply Ability: 500,000 meters per month
Contact Now
Detailed Product Description
Name: Electrical Braided Sleeving Color: Colorful
Function: Cable Protection Working Temperature: 150 Degree
Feature: High Temperature Resistant Material: Pet
High Light:

braided electrical sleeving

,

high temperature braided sleeving

Polyester PET Expandable Electrical Braided Sleeving For Wire Protection





The product has smooth surface, bright color and various patterns. It is an ideal product for line management and bundle application of electronics, automobiles, airplanes, ships, industry and home. For example, DVI wire mesh sets, HDMI wire net sets, motor vehicle engine line dressing, home theater wire management, computer chassis wire layout, office line management, car wiring harness, water tube protection and so on.





Application range:



☆ The softness is good, it is easy to bend, it can be tight, easy to lead, good stretchability, elasticity and wear resistance, it can keep soft in a wide temperature range, can inhibit chemical corrosion, UV protection and friction.



☆  The unique mesh features have good ventilation and instant diffusion of wire heat.





Product feacture:



The braided sleeve is made of environmentally-friendly PET silk, which has good flexibility, flame retardancy, wear resistance and heat insulation. The product has a smooth surface, bright color and a variety of patterns. Products are widely used in computer power lines, audio and video lines, automotive, aviation, wire and cable industries, to protect and beautify.


1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.





Technical data:


1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey. Other colors upon request.
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife



PET Expandable Tube is braided from polyethylene terepthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.



Dimensions:



Width Expandable range Packing
(m/roll)
Inch mm Min. Max.
1/8 3 1 6 500
1/4 6 3 9 500
5/16 8 5 16 400
3/8 10 7 19 400
1/2 12 8 24 300
5/8 15 10 27 300
3/4 20 14 30 250
1 25 18 35 200
1 1/4 30 20 50 150
1 1/2 40 30 60 100
1 3/4 45 35 75 100
2 50 40 80 100
2 1/2 64 45 105 100
3 76 64 120 100




Notes:



1.  Nominal size indicates the flat width.

2.  The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3.  This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4.  Special packing, sizes, and colors can be supplied upon request.

5.  All numerical data are average or typical values, not including customized sizes.

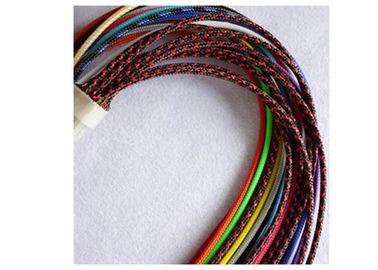

Polyester High Temp Braided Sleeving Good Flame Retardancy For Protecting Wire 0

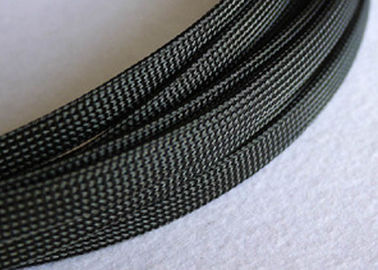

Polyester High Temp Braided Sleeving Good Flame Retardancy For Protecting Wire 1
