|Place of Origin:||Shenzhen of China|
|Certification:||UL, RoHS, REACH, SGS, ISO|
|Minimum Order Quantity:||1000 meters|
|Packaging Details:||standard export carton|
|Supply Ability:||3 million meters per month|
|Color:||Custom||Cutting Tool:||Hot Cutting Knife|
|Feature:||Cable Wires Protection||Certificates:||UL CSA ROHS REACH|
self wrapping braided sleeving,
split braided wire loom

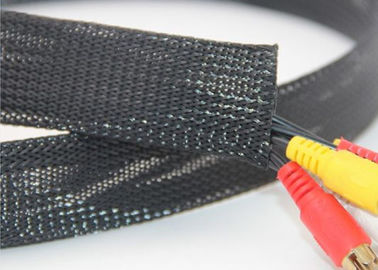

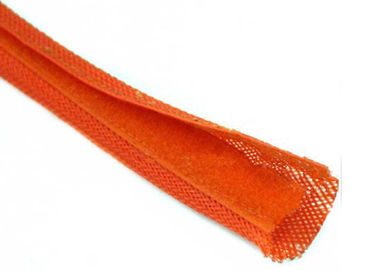

5mm Flame Retardant Self Wrapping Split Braided Sleeving For Cable Harness
What's the special of this cable sleeve
1. Flame-retardant and halogen-free.
2. It offers durable abrasion resistance in a wide range of industrial applications.
3. The open weave construction allows an easy installation on a bundle of hoses
and cables, even if some with bulky or large connectors.
Self-Closing Braided Sleeving is made of PET monofilament and PET multifilament or PET monofilament and Nylon multifilament,and then it is naturally rolled into a roll by a special process.The winding coverage can reach 25%.Easy to install and remove,beautiful,flame retardant,anti-wear.Mainly used for wiring of automobiles,military,ship, communication cable.
Application of braided sleeving
Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.
Dose not trap heat or humidity Rot-free , Self-fitting over many shapes and sizes Self-extinguishing when used to encase typical non-flammable wires or cable Fray resistant.
1. Material: Polyester
2. Operating range: - 50ºC - +150ºC
3. Melt Point: 250ºC+-5ºC
4. Flammability: VW-1
Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.
Description of self closing braided sleeving
The open self- closing braided sleeve is made of VO grade polyester monofilament, which has the characteristics of heat dissipation, wear resistance, acid resistance, dust resistance, softness, simple operation, convenience and quickness. The structure is beneficial to protect the maintenance, reassembly and overhaul of the internal wiring harness.
PET White Self Wrapping Split Braided Sleeving for cable management (PET woven mesh tube) is braided by environment friendly polyester monofil. PET, PA6, PA66, PPS are with good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving are smooth surface, bright color, various patterns.
self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.
flexible semi-rigid wrappable split PET braided cable sleeving is a perfect solution to protect wires, cables, wire harnesses where ease of installation is paramount. With a 25% overlap, this sleeving wraps securely to itself eliminating the need to secure the sleeving opening with any other method.
Our data description:
|Max. Bundle Dia.||Packing
|HYH-006||6.0 mm||25||7.0 mm||100m|
|HYH-009||9.0 mm||10.0 mm||100m|
|HYH-013||13.0 mm||14.0 mm||50m|
|HYH-019||19.0 mm||20.0 mm||25m|
|HYH-025||25.0 mm||26.0 mm||25m|
|HYH-032||32.0 mm||33.0 mm||25m|
|HYH-038||38.0 mm||40.0 mm||25m|
|HYH-050||50.0 mm||52.0 mm||25m|
