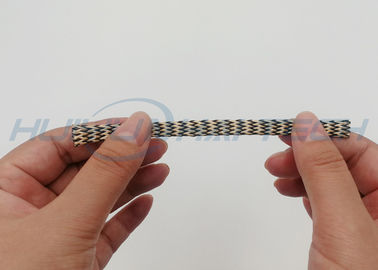

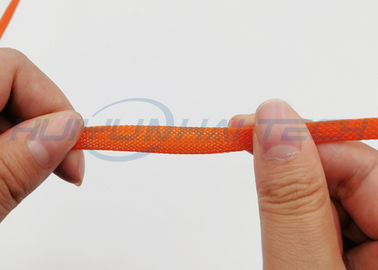

Cross Pattern Flexible Braided Wire Covering Sleeves Reduce Harness Weight

Cross Pattern Flexible Braided Wire Covering Sleeves Reduce Harness Weight

    • Cross Pattern Flexible Braided Wire Covering Sleeves Reduce Harness Weight
    • Cross Pattern Flexible Braided Wire Covering Sleeves Reduce Harness Weight
  • Cross Pattern Flexible Braided Wire Covering Sleeves Reduce Harness Weight

    Product Details:

    Place of Origin: Shenzhen of China
    Brand Name: Huiyunhai
    Certification: UL, RoHS, REACH, SGS, ISO
    Model Number: HYH-HC

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiable
    Packaging Details: standard export carton
    Payment Terms: T/T, Western Union
    Supply Ability: 3 million meters per month
    Contact Now
    Detailed Product Description
    Product Name: Expandable Braided Sleeving Diameter: Custom
    Feature: Heavy Duty And Flexible Color: Optional, Custom
    Function: Reduce Harness Weight Certificates: UL, CSA, ROHS, REACH

    Cross Pattern Flexible Braided Wire Covers Sleeves For Cable Harness Covers



    PET Expandable Braided Sleeving is designed from durable environment friendly PET monofilament yarns and the unique braided construction enables quick and easy installation over large connectors. These sleevings are used in wire harnessing in industries, hose and cable protection for the automotive, heavy equipment and marine industries. And generally commercial applications such as personal computers, automotive, motorcycling, bicycling, flyfishing and scuba diving.



    Product description of braided sleeves



    Flame Resistant Thermal Wire Insulation PET Braided Sleeve is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.





    Features of braided sleeves



    >  Flame-retardant
    >  Easy, Cost & Labor Effective Installation
    >  More Flexible Than Split Convoluted or Spiral Wrap
    >  Cuts easily with hot knife or scissor
    >  Cut & abrasion resistant
    >  25% Edge Overlap
    >  Chemical inert
    >  ROHS compliant
    >  UV resistant
    >  Cost effective wrap around solution
    >  Retains shape & rigidity throughout operating temperature range (-40°C to 125°C)
    >  Melt Temp 230°C





    Technical Data:





    Mono filament Thickness 0.25mm or 0.20mm
    Recommended Cutting Hot Knife
    Tensile Strength 100,000psi
    Elongation 20%
    Max Temperature 155C
    Melt Temperature 250C
    Copper rust

    No Effect











    Sizes of Braided Sleeves:





    Model Natural
    OD(MM)
    Max Expand
    OD(MM)
    N.W(g) Packing
    (M/spool)
      Model Natural
    OD(MM))
    Max Expand
    OD(MM)
    N.W(g) Packing
    (M/spool)
    161020 1 2 2.5 1000   641025 8 16 7 500
    161025 1 2 2.5 1000   642020 12 25 10.5 500
    162020 2 4 3 1000   642025 14 30 12 500
    162025 3 6 3 1000   643020 16 32 14 500
    163020 3 6 4 1000   643025 18 35 17 250
    163025 4 8 4 1000   721020 8 16 6.5 800
    241020 2 4 3 1000   721025 9 18 7.5 800
    241025 2 4 3 1000   722020 14 28 12 500
    242020 3 6 4.5 1000   722025 16 32 14 500
    242025 4 8 4.5 1000   723020 18 35 16 300
    243020 4 8 5 800   723025 23 45 19 200
    243025 5 10 5.5 500   961020 10 20 8 500
    321020 3 6 3 1000   961025 11 22 9 560
    321025 3 6 3 1000   962020 20 40 14 500
    322020 5 10 4.5 500   962025 25 50 16 500
    322025 6 12 4.5 500   963020 28 55 18 300
    323020 6 12 6 500   963025 35 70 25 100
    323025 7 14 7.5 500   964020 30 60 26 100
    401020 4 8 3.5 800   964025 36 72 28 100
    401025 4 8 3.5 800   965025 40 80 46 100
    402020 6 12 5.5 500   1201020 10 20 10 300
    402025 8 14 6 500   1201025 12 22 13 300
    403020 8 16 7 600   1202020 22 45 15 200
    403025 10 20 10 400   1202025 26 32 18 100
    481020 5 10 4 1000   1203020 32 65 26 100
    481025 6 12 4.5 500   1203025 38 75 32 100
    482020 8 16 5.5 500   1204020 40 80 30 100
    482025 10 20 7.5 500   1204025 45 90 40 100
    483020 10 20 8.5 600   1205025 50 100 50g 50
    483025 12 25 12 300   1206025 64 130 60g 50
    561020 6 12 5 1000   1207025 76 150 70g 50
    561025 7 14 6 800   1486025 80 160 80g 50
    562020 10 20 8.5 500   1487025 90 180 90g 50
    562025 12 25 10 500   1488025 100 200 100g 50
    563020 14 30 11 500   flat1053020
    563025 16 32 15 250   flat1053025
    641020 7 14 6 1000   flat1054025









    Cross Pattern Flexible Braided Wire Covering Sleeves Reduce Harness Weight



























    Cross Pattern Flexible Braided Wire Covering Sleeves Reduce Harness Weight
