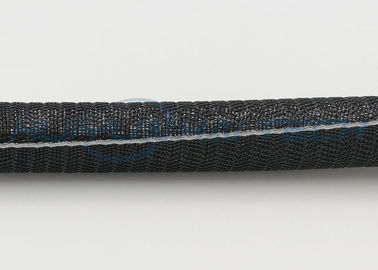

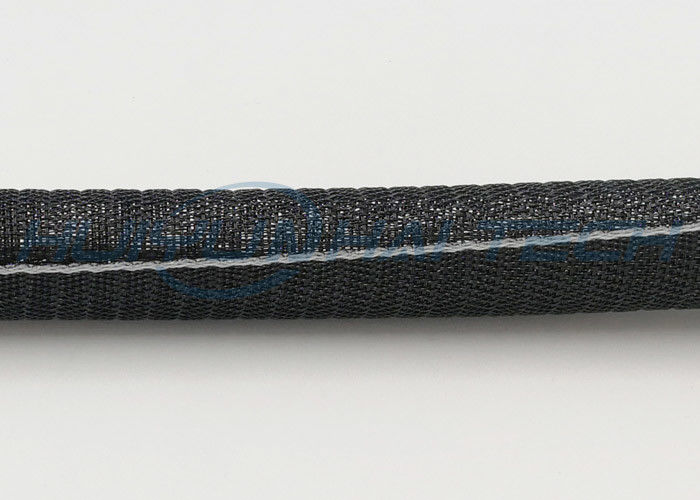

Pure PET Strong Black Self Wrapping Split Braided Sleeving Good Flexibility

Pure PET Strong Black Self Wrapping Split Braided Sleeving Good Flexibility

Pure PET Strong Black Self Wrapping Split Braided Sleeving Good Flexibility
Pure PET Strong Black Self Wrapping Split Braided Sleeving Good Flexibility

Product Details:

Place of Origin: Shenzhen of China
Brand Name: Huiyunhai
Certification: UL, RoHS, REACH, SGS, ISO
Model Number: HYH-V

Payment & Shipping Terms:

Minimum Order Quantity: 1000 meters
Packaging Details: standard export carton
Payment Terms: T/T
Supply Ability: 3 million meters per month
Contact Now
Detailed Product Description
Material: PET, Pp Size: Custom
Color: Custom Cutting Tool: Hot Cutting Knife
Feature: Cable Wires Protection Certificates: UL CSA ROHS REACH
High Light:

self wrapping braided sleeving

,

split braided wire loom



Pure PET Strong Black Self Wrapping Braided Sleeving , Split Closing Wire Sleeve



PET Wrap provides the same flexibility and abrasion resistance as the PET Expandable Braided Sleeving but with the added feature of a hook and loop closure running the length of the material.

This allows you to work on segments of the cabling, rather than having to remove the entire covering and re-run all of its contents.



Application



Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.





Technical data:


1. Material: Polyester

2. Operating range: - 50ºC - +150ºC

3. Melt Point: 250ºC+-5ºC

4. Flammability: VW-1



Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.



Description of self closing braided sleeving



The open self- closing braided sleeve is made of VO grade polyester monofilament, which has the characteristics of heat dissipation, wear resistance, acid resistance, dust resistance, softness, simple operation, convenience and quickness. The structure is beneficial to protect the maintenance, reassembly and overhaul of the internal wiring harness.



PET White Self Wrapping Split Braided Sleeving for cable management (PET woven mesh tube) is braided by environment friendly polyester monofil. PET, PA6, PA66, PPS are with good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving are smooth surface, bright color, various patterns.



self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.



flexible semi-rigid wrappable split PET braided cable sleeving is a perfect solution to protect wires, cables, wire harnesses where ease of installation is paramount. With a 25% overlap, this sleeving wraps securely to itself eliminating the need to secure the sleeving opening with any other method.





Our data :



Open Type Self Closing Woven Sleeve



sleeve diameter(mm): 5,8,10,13,16,19,25,29,32,38,50,60,70.



















Pure PET Strong Black Self Wrapping Split Braided Sleeving Good Flexibility 0

























Pure PET Strong Black Self Wrapping Split Braided Sleeving Good Flexibility 1
