Full PET Heat Resistant Wire Sleeve , Split Closing Cable Sleeve Eco - Friendly

Full PET Heat Resistant Wire Sleeve , Split Closing Cable Sleeve Eco - Friendly

  • Full PET Heat Resistant Wire Sleeve , Split Closing Cable Sleeve Eco - Friendly
  • Full PET Heat Resistant Wire Sleeve , Split Closing Cable Sleeve Eco - Friendly
Full PET Heat Resistant Wire Sleeve , Split Closing Cable Sleeve Eco - Friendly
Product Details:
Place of Origin: Shenzhen of China
Brand Name: Huiyunhai
Certification: UL, RoHS, REACH, SGS, ISO
Model Number: HYH-V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard export carton
Payment Terms: T/T
Supply Ability: 3 million meters per month
Contact Now
Detailed Product Description
Material: PET, Pp Size: Custom
Color: Custom Cutting Tool: Hot Cutting Knife
Feature: Cable Wires Protection Certificates: UL CSA ROHS REACH
High Light:

self wrapping braided sleeving

,

split braided wire loom



Black Full PET Self Wrapping Braided Sleeving , Split Closing Cable Sleeve





Application



Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.



Dose not trap heat or humidity Rot-free , Self-fitting over many shapes and sizes Self-extinguishing when used to encase typical non-flammable wires or cable Fray resistant.





Description of self closing braided sleeving



The open self- closing braided sleeve is made of VO grade polyester monofilament, which has the characteristics of heat dissipation, wear resistance, acid resistance, dust resistance, softness, simple operation, convenience and quickness. The structure is beneficial to protect the maintenance, reassembly and overhaul of the internal wiring harness.



PET White Self Wrapping Split Braided Sleeving for cable management (PET woven mesh tube) is braided by environment friendly polyester monofil. PET, PA6, PA66, PPS are with good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving are smooth surface, bright color, various patterns.



self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.



flexible semi-rigid wrappable split PET braided cable sleeving is a perfect solution to protect wires, cables, wire harnesses where ease of installation is paramount. With a 25% overlap, this sleeving wraps securely to itself eliminating the need to secure the sleeving opening with any other method.





Technical data:


1. Material: Polyester

2. Operating range: - 50ºC - +150ºC

3. Melt Point: 250ºC+-5ºC

4. Flammability: VW-1





Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.





Our data description:





Part No.

I.D

(d)

Overlap

(%)

Max. Bundle Dia. Packing
(L)
HYH-006 6.0 mm 25 7.0 mm 100m
HYH-009 9.0 mm   10.0 mm 100m
HYH-013 13.0 mm   14.0 mm 50m
HYH-016 16.0 mm   17.0mm 25m
HYH-019 19.0 mm   20.0 mm 25m
HYH-025 25.0 mm   26.0 mm 25m
HYH-032 32.0 mm   33.0 mm 25m
HYH-038 38.0 mm   40.0 mm 25m
HYH-050 50.0 mm   52.0 mm 25m

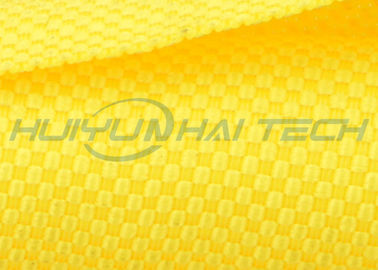

Full PET Heat Resistant Wire Sleeve , Split Closing Cable Sleeve Eco - Friendly 0

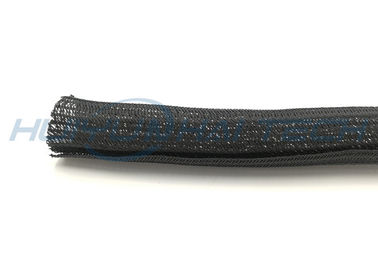

Full PET Heat Resistant Wire Sleeve , Split Closing Cable Sleeve Eco - Friendly 1
