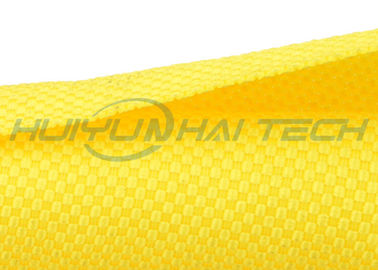

Yellow Color Self Wrapping Sleeving PET Cable Sleeve Self Closing Harness

Yellow Color Self Wrapping Sleeving PET Cable Sleeve Self Closing Harness

    • Yellow Color Self Wrapping Sleeving PET Cable Sleeve Self Closing Harness
    • Yellow Color Self Wrapping Sleeving PET Cable Sleeve Self Closing Harness
  • Yellow Color Self Wrapping Sleeving PET Cable Sleeve Self Closing Harness

    Product Details:

    Place of Origin: Shenzhen of China
    Brand Name: Huiyunhai
    Certification: UL, RoHS, REACH, SGS, ISO
    Model Number: HYH-V

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 meters
    Packaging Details: standard export carton
    Payment Terms: T/T
    Supply Ability: 3 million meters per month
    Contact Now
    Detailed Product Description
    Material: PET, Pp Size: Custom
    Color: Custom Cutting Tool: Hot Cutting Knife
    Feature: Cable Wires Protection Certificates: UL CSA ROHS REACH



    Yellow Self Wrapping Braided Sleeving , PET Cable Sleeve Self Closing Harness





    Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.





    Technical data:


    1. Material: Polyester

    2. Operating range: - 50ºC - +150ºC

    3. Melt Point: 250ºC+-5ºC

    4. Flammability: VW-1



    Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.



    Description of self closing braided sleeving



    The open self- closing braided sleeve is made of VO grade polyester monofilament, which has the characteristics of heat dissipation, wear resistance, acid resistance, dust resistance, softness, simple operation, convenience and quickness. The structure is beneficial to protect the maintenance, reassembly and overhaul of the internal wiring harness.



    PET White Self Wrapping Split Braided Sleeving for cable management (PET woven mesh tube) is braided by environment friendly polyester monofil. PET, PA6, PA66, PPS are with good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving are smooth surface, bright color, various patterns.



    self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.



    flexible semi-rigid wrappable split PET braided cable sleeving is a perfect solution to protect wires, cables, wire harnesses where ease of installation is paramount. With a 25% overlap, this sleeving wraps securely to itself eliminating the need to secure the sleeving opening with any other method.





    Our data description:


    Open Type Pure pet self closing sleeve with little white line



    sleeve diameter(mm): 5,8,10,13,16,19,25,29,38,50,60,70.











    Yellow Color Self Wrapping Sleeving PET Cable Sleeve Self Closing Harness



































    Yellow Color Self Wrapping Sleeving PET Cable Sleeve Self Closing Harness
