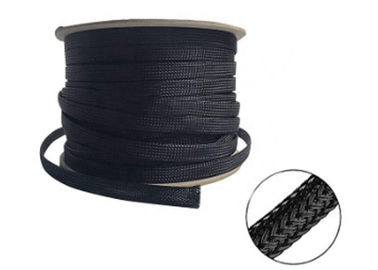

15mm Heat Resistant Wire Sleeve , Expandable Braided Sleeving Black For Cable Management

15mm Heat Resistant Wire Sleeve , Expandable Braided Sleeving Black For Cable Management

    • 15mm Heat Resistant Wire Sleeve , Expandable Braided Sleeving Black For Cable Management
    • 15mm Heat Resistant Wire Sleeve , Expandable Braided Sleeving Black For Cable Management
  • 15mm Heat Resistant Wire Sleeve , Expandable Braided Sleeving Black For Cable Management

    Product Details:

    Place of Origin: Shenzhen of China
    Brand Name: Huiyunhai
    Certification: UL, RoHS, REACH
    Model Number: HYH

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 meters
    Price: negotiable
    Packaging Details: Standard export carton
    Supply Ability: 500,000 meters per month
    Contact Now
    Detailed Product Description
    Name: Expandable Braided Sleeving Lead Time: 6 Days
    Function: Cable Protection Feature 1: Wear Resistant
    Feature 2: Flame Proof Material: Pet



    15mm Flame Resistance Electrical Braided Sleeving For Cable Management





    Application of braided sleeving


    It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.





    1. Automobile wires protection



    2. Structured cabling system



    3. A/V cables & HDMI cables



    4. Industrial hoses & tubes protection





    Main Advantages of PET material:



    1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
    2. Braided of 0.25mm / 0.2mm / 0.12 silk monofilament.

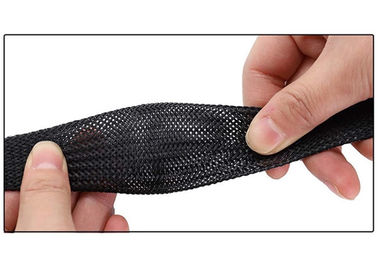

    3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
    4. Totally expanded the sleeving can reach twice than the initial dimension.
    5. Logo printing is available.
    6. Customized,Special package is willing to accepted,can be product according to customers requirements.





    Multi-purpose metal braid provides shielding and grounding for equipment or wire harnesses , to protect your investment

    Aesthetically pleasing design is commonly used to decorate or conceal hoses and wires in automotive applications

    Expandable design allows for quick and easy installation of cable or wire bundles

    Quality tinned copper braid can be easily soldered to connectors and used for custom-length earth straps



    Resists chemicals and the elements for use in rugged or exposed applications

    Durable construction provides superior protection from accidental cuts or consistent abrasion







    15mm Heat Resistant Wire Sleeve , Expandable Braided Sleeving Black For Cable Management


    What is the Special of our PET Expandable Braided Sleeve?



    1. Braided from 10 mil polyethylene terepthalate (PET) monofilament yarns.
    2. It expands to 2 times the original size.
    3. Excellent cut through and abrasion resistance
    4. High quality alternative to Bentley Harris Expando, Alpha GRP-110, PET sleeving
    5. Continuous use temperature of -70°C to 125°C (-103°F to 257°F)
    6. Melt temperature of 260°C (500°F)
    7. Expands up to three times its resting diameter
    8. Halogen Free, ROHS compliant







    Notes:



    1. Nominal size indicates the flat width.

    2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

    3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

    4. Special packing, sizes, and colors can be supplied upon request.

    5. All numerical data are average or typical values, not including customized sizes.




    Application Fields Electronics, automotive, marine and industrial wire harnessing application
    Sleeve Material 0.25mm PET monofilament
    Working Temperature -70°C to 125°C (-103°F to 257°F)
    Melt Point 260°C (500°F)
    Flame Retardant Yes
    Flammability Class UL 94 V1
    Size 20mm
    Available Size 3mm~100mm
    Standard Color Black,White,Grey
    Available Color 64 colors available, accorcing to our color guide
    Packaging 200m/Roll,4 rolls/ctn
    Carton size: 52*52*18cm or customized
    Container: 2000 rolls or 500 cartons for one 20' container
    Full Size Sample Lead time: As usual 3-7 working days
    Production Lead time: 7~10 days


















    15mm Heat Resistant Wire Sleeve , Expandable Braided Sleeving Black For Cable Management



























    15mm Heat Resistant Wire Sleeve , Expandable Braided Sleeving Black For Cable Management
