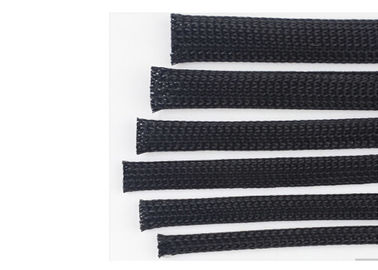

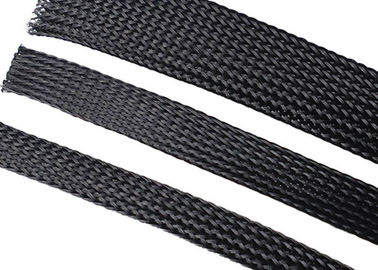

Flexo PET Eexpandable Braided Sleeving Custom For Fireproof Wire Cable Management

Flexo PET Eexpandable Braided Sleeving Custom For Fireproof Wire Cable Management

    • Flexo PET Eexpandable Braided Sleeving Custom For Fireproof Wire Cable Management
    • Flexo PET Eexpandable Braided Sleeving Custom For Fireproof Wire Cable Management
  • Flexo PET Eexpandable Braided Sleeving Custom For Fireproof Wire Cable Management

    Product Details:

    Place of Origin: Shenzhen of China
    Brand Name: Huiyunhai
    Certification: UL, RoHS, REACH
    Model Number: HYH

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 meters
    Price: negotiable
    Packaging Details: Standard export carton
    Supply Ability: 500,000 meters per month
    Contact Now
    Detailed Product Description
    Name: Pet Braided Sleeving Material: Pet,nylon
    Size: Custom Fuction: Wear Resistant
    Lead Time: 5 Days Usage: Cable Harness

    Flexo PET Eexpandable Braided Sleeving For Fireproof Wire Cable Management



    What is the Special of our Flexo PET Eexpandable Braided Sleeving ?

    1. Braided from 10 mil polyethylene terepthalate (PET) monofilament yarns.
    2. It expands to 2 times the original size.
    3. Excellent cut through and abrasion resistance
    4. High quality alternative to Bentley Harris Expando, Alpha GRP-110, PET sleeving
    5. Continuous use temperature of -70°C to 125°C (-103°F to 257°F)
    6. Melt temperature of 260°C (500°F)
    7. Expands up to three times its resting diameter
    8. Halogen Free, ROHS compliant

    Main Properties for Flexo PET Eexpandable Braided Sleeving

    1. Operating temperature: -50°C~150°C

    2. Melting point: 250±5°C.

    3.Flammability: UL VW-1
    4.Standard color: White, Black, Gray, Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern

    5.Cutting tool: Hot knife
    6. Certificate: RoHS, MSDS



    Flexo PET Eexpandable Braided Sleeving :

    1. Automobile wires protection

    2. Structured cabling system

    3. A/V cables & cables

    4.Industrial hoses & tubes protection


    Product feactures of Flexo PET Eexpandable Braided Sleeving


    1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
    2. Braided of 0.25mm / 0.2mm Pet monofilament.
    3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
    4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
    5. Logo printing is available.
    6. Customized,Special package is willing to accepted,can be product according to customers requirements.






    Application Fields Electronics, automotive, marine and industrial wire harnessing application
    Sleeve Material 0.25mm PET monofilament
    Working Temperature -70°C to 125°C (-103°F to 257°F)
    Melt Point 260°C (500°F)
    Flame Retardant Yes
    Flammability Class UL 94 V1
    Size 20mm
    Available Size 3mm~100mm
    Standard Color Black,White,Grey
    Available Color 64 colors available, accorcing to our color guide
    Packaging 200m/Roll,4 rolls/ctn
    Carton size: 52*52*18cm or customized
    Container: 2000 rolls or 500 cartons for one 20' container
    Full Size Sample Lead time: As usual 3-7 working days
    Production Lead time: 7~10 days




    Notes for Flexo PET Eexpandable Braided Sleeving

    Huiyunhai nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight , highly flexible and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft, slick surface resisting snags when dragged over rough surface.


    The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.
    The environmentally friendly braided sleeve is mainly used in computer power cords, audio video cables, automobiles, aviation, wire and cable industries, etc. It plays a protective and beautifying role and has certain shielding performance. It is most suitable for the audio medical industry, economical and easy to organize. At the same time, it has very good wear and corrosion resistance, suitable for wire harness protection, wear, corrosion, decoration and storage in various mechanical and electronic industries.
    The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.

    Properties: Excellent flexibility, can be loosely, easy to lead wires, excellent contractility, elasticity and abrasive resistance.





    Specifications of Flexo PET Eexpandable Braided Sleeving


    Model Natural
    OD(MM)
    Max Expand
    OD(MM)
    N.W(g) Packing
    (M/spool)
      Model Natural
    OD(MM))
    Max Expand
    OD(MM)
    N.W(g) Packing
    (M/spool)
    161020 1 2 2.5 1000   641025 8 16 7 500
    161025 1 2 2.5 1000   642020 12 25 10.5 500
    162020 2 4 3 1000   642025 14 30 12 500
    162025 3 6 3 1000   643020 16 32 14 500
    163020 3 6 4 1000   643025 18 35 17 250
    163025 4 8 4 1000   721020 8 16 6.5 800
    241020 2 4 3 1000   721025 9 18 7.5 800
    241025 2 4 3 1000   722020 14 28 12 500
    242020 3 6 4.5 1000   722025 16 32 14 500
    242025 4 8 4.5 1000   723020 18 35 16 300
    243020 4 8 5 800   723025 23 45 19 200
    243025 5 10 5.5 500   961020 10 20 8 500
    321020 3 6 3 1000   961025 11 22 9 560
    321025 3 6 3 1000   962020 20 40 14 500
    322020 5 10 4.5 500   962025 25 50 16 500
    322025 6 12 4.5 500   963020 28 55 18 300
    323020 6 12 6 500   963025 35 70 25 100
    323025 7 14 7.5 500   964020 30 60 26 100
    401020 4 8 3.5 800   964025 36 72 28 100
    401025 4 8 3.5 800   965025 40 80 46 100
    402020 6 12 5.5 500   1201020 10 20 10 300
    402025 8 14 6 500   1201025 12 22 13 300
    403020 8 16 7 600   1202020 22 45 15 200
    403025 10 20 10 400   1202025 26 32 18 100
    481020 5 10 4 1000   1203020 32 65 26 100
    481025 6 12 4.5 500   1203025 38 75 32 100
    482020 8 16 5.5 500   1204020 40 80 30 100
    482025 10 20 7.5 500   1204025 45 90 40 100
    483020 10 20 8.5 600   1205025 50 100 50g 50
    483025 12 25 12 300   1206025 64 130 60g 50
    561020 6 12 5 1000   1207025 76 150 70g 50
    561025 7 14 6 800   1486025 80 160 80g 50
    562020 10 20 8.5 500   1487025 90 180 90g 50
    562025 12 25 10 500   1488025 100 200 100g 50
    563020 14 30 11 500   flat1053020
    563025 16 32 15 250   flat1053025
    641020 7 14 6 1000   flat1054025







    Notes for Flexo PET Eexpandable Braided Sleeving



    1. Nominal size indicates the flat width.

    2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

    3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

    4. Special packing, sizes, and colors can be supplied upon request.

    5. All numerical data are average or typical values, not including customized sizes.
