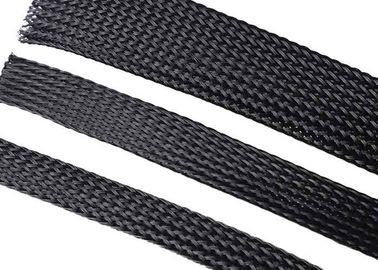

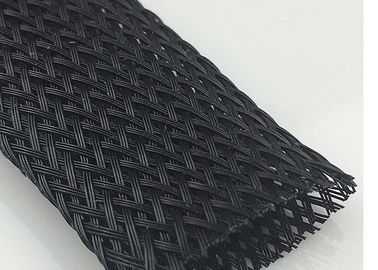

Black Electrical High Temperature Braided Sleeving Flame Proof For Wire Bundles

Black Electrical High Temperature Braided Sleeving Flame Proof For Wire Bundles

    • Black Electrical High Temperature Braided Sleeving Flame Proof For Wire Bundles
    • Black Electrical High Temperature Braided Sleeving Flame Proof For Wire Bundles
  • Black Electrical High Temperature Braided Sleeving Flame Proof For Wire Bundles

    Product Details:

    Place of Origin: Shenzhen of China
    Brand Name: Huiyunhai
    Certification: UL, RoHS, REACH
    Model Number: HYH

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 meters
    Price: negotiable
    Packaging Details: Standard export carton
    Supply Ability: 500,000 meters per month
    Contact Now
    Detailed Product Description
    Name: Expandable Braided Sleeving Lead Time: 5 Days
    Function: Cable Protection Feature 1: Wear Resistant
    Feature 2: Flame Proof Material: Pet

    Black Electrical Braided Sleeving Wire Flame Proof For Wire Bundles

    Description of braided sleeving
    Material: PET
    Diameter: 8mm, custom
    Length: 10 M/393.7inches
    Expanding Ratio: 150%
    Color: White
    Melting point: 230 °C ± 5
    Tinting strength: 100 ± 5 °C
    Fireproofing grade: UL94V-2
    Temperature endurance: -50 °C~ +150 °C
    Features:
    Excellent softness, easy bending, can loose to close, easy to operation, lead good scalability, elasticity and abrasion resistance
    Purpose:
    The power cord wire protection and tighten

    Application of Electrical Braided Sleeving
    It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.


    1. Automobile wires protection

    2. Structured cabling system

    3. A/V cables & HDMI cables

    4. Industrial hoses & tubes protection

    product description of Electrical Braided Sleeving

    The PET braided sleeving can be easily expanded to 150% and easily grips irregularly shaped objects.
    The braided sleeving can be kept soft in a wide temperature range, can inhibit chemical corrosion, UV protection and friction. Its unique mesh features also have good ventilation and instant diffusion of wire heat function. The product has smooth surface, bright color and various patterns.

    Multi-purpose metal braid provides shielding and grounding for equipment or wire harnesses , to protect your investment
    Aesthetically pleasing design is commonly used to decorate or conceal hoses and wires in automotive applications
    Expandable design allows for quick and easy installation of cable or wire bundles
    Quality tinned copper braid can be easily soldered to connectors and used for custom-length earth straps

    Resists chemicals and the elements for use in rugged or exposed applications
    Durable construction provides superior protection from accidental cuts or consistent abrasion





    Main Advantages of PET Electrical Braided Sleeving

    1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
    2. Braided of 0.25mm / 0.2mm / 0.12 silk monofilament.
    3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
    4. Totally expanded the sleeving can reach twice than the initial dimension.
    5. Logo printing is available.
    6. Customized,Special package is willing to accepted,can be product according to customers requirements.


    Dimensions of cable sleeving:


    WidthExpandable rangePacking
    (m/roll)
    InchmmMin.Max.
    1/8316500
    1/4639500
    5/168516400
    3/810719400
    1/212824300
    5/8151027300
    3/4201430250
    1251835200
    1 1/4302050150
    1 1/2403060100
    1 3/4453575100
    2504080100
    2 1/26445105100
    37664120100


    Notes:


    1. Nominal size indicates the flat width.

    2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

    3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

    4. Special packing, sizes, and colors can be supplied upon request.

    5. All numerical data are average or typical values, not including customized sizes.
