Light Weight Self Wrapping Split Braided Sleeving , Pet Wrap Braided Sleeving

Light Weight Self Wrapping Split Braided Sleeving , Pet Wrap Braided Sleeving

    • Light Weight Self Wrapping Split Braided Sleeving , Pet Wrap Braided Sleeving
    • Light Weight Self Wrapping Split Braided Sleeving , Pet Wrap Braided Sleeving
  • Light Weight Self Wrapping Split Braided Sleeving , Pet Wrap Braided Sleeving

    Product Details:

    Place of Origin: Shenzhen of China
    Brand Name: Huiyunhai
    Certification: UL, RoHS, REACH, SGS, ISO
    Model Number: HYH-V

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 meters
    Packaging Details: standard export carton
    Payment Terms: T/T
    Supply Ability: 3 million meters per month
    Contact Now
    Detailed Product Description
    Material: PET, Pp Size: Custom
    Color: Custom Cutting Tool: Hot Cutting Knife
    Feature: Cable Wires Protection Certificates: UL CSA ROHS REACH

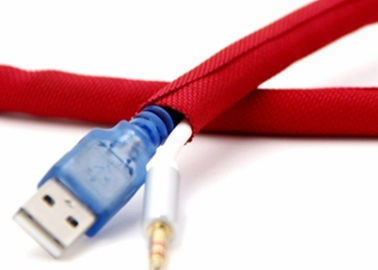

    PET Self Wrapping Split Braided Sleeving , Pet Wrap Braided Sleeving





    Application of heat resistant f6 self wrapping split braided sleeving



    It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.





    1. Automobile wires protection



    2. Structured cabling system



    3. A/V cables & HDMI cables



    4. Industrial hoses & tubes protection







    Description of f6 self wrapping split braided sleeving

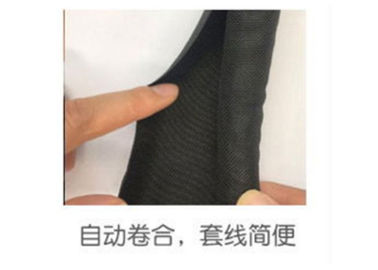

    self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.



    flexible semi-rigid wrappable split PET braided cable sleeving is a perfect solution to protect wires, cables, wire harnesses where ease of installation is paramount. With a 25% overlap, this sleeving wraps securely to itself eliminating the need to secure the sleeving opening with any other method.



    The open self- closing braided sleeve is made of VO grade polyester monofilament, which has the characteristics of heat dissipation, wear resistance, acid resistance, dust resistance, softness, simple operation, convenience and quickness. The structure is beneficial to protect the maintenance, reassembly and overhaul of the internal wiring harness.



    PET White Self Wrapping Split Braided Sleeving for cable management (PET woven mesh tube) is braided by environment friendly polyester monofil. PET, PA6, PA66, PPS are with good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving are smooth surface, bright color, various patterns.





    Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.





    self wrapping split braided sleeving is braided of environmentally friendly PET filament and tetoron

    filament. Its light weight, good flame resistance, abrasion resistence and heat insulation provides the

    perfect solution to manage wires and cables safely and effectively. Compared with other cable protector, it is more cost effective and has a wider scope of protection.



    Inner Diameter:3mm to 50mm

    Delivery Time: 5-10 working day





    Technical data of Polyester f6 self wrapping split braided sleeving


    1. Material: Polyester

    2. Operating range: - 50ºC - +150ºC

    3. Melt Point: 250ºC+-5ºC

    4. Flammability: VW-1







    Light Weight Self Wrapping Split Braided Sleeving , Pet Wrap Braided Sleeving

































    Light Weight Self Wrapping Split Braided Sleeving , Pet Wrap Braided Sleeving
