Wire Harness F6 Self Wrapping Split Braided Sleeving UL CSA ROHS Certificated

Wire Harness F6 Self Wrapping Split Braided Sleeving UL CSA ROHS Certificated

    • Wire Harness F6 Self Wrapping Split Braided Sleeving UL CSA ROHS Certificated
    • Wire Harness F6 Self Wrapping Split Braided Sleeving UL CSA ROHS Certificated
  • Wire Harness F6 Self Wrapping Split Braided Sleeving UL CSA ROHS Certificated

    Product Details:

    Place of Origin: Shenzhen of China
    Brand Name: Huiyunhai
    Certification: UL, RoHS, REACH, SGS, ISO
    Model Number: HYH-V

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 meters
    Packaging Details: standard export carton
    Payment Terms: T/T
    Supply Ability: 3 million meters per month
    Contact Now
    Detailed Product Description
    Material: PET, Pp Size: Custom
    Color: Custom Cutting Tool: Hot Cutting Knife
    Feature: Cable Wires Protection Certificates: UL CSA ROHS REACH

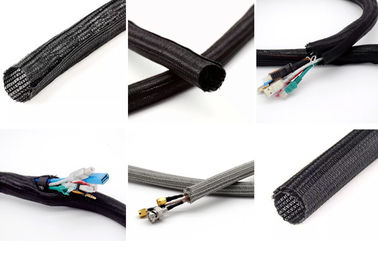

    Black f6 Self Wrapping Split Braided Sleeving For Wire Harness





    Feature of braided sleeving



    •  Easy, cost and labor effective installation
    •  More flexible than split convoluted or spiral wrap
    •  25% edge overlap
    •  Cut and abrasion resistant
    •  Halogen free
    •  Retains shape and rigidity throughout -50°C to 150°C temperature range
    •  Smelt temp. 250°C



    Braided Wrap Around Sleeving



    1. Braided Wrap Around Sleeving offers innovative solutions for the protection of breakout areas

    and provides easy removal when is necessary an inspection or maintenance of cables.

    2. The special open structure allows to be installed after other components, for example copper terminals and connectors.

    3. A strong resilience protects wires and cables and meanwhile provides exceptional abrasion and flame resistance.



    PET Wrap provides the same flexibility and abrasion resistance as the PET Expandable Braided Sleeving but with the added feature of a hook and loop closure running the length of the material.

    This allows you to work on segments of the cabling, rather than having to remove the entire covering and re-run all of its contents.



    Description of self closing braided sleeving



    The open self- closing braided sleeve is made of VO grade polyester monofilament, which has the characteristics of heat dissipation, wear resistance, acid resistance, dust resistance, softness, simple operation, convenience and quickness. The structure is beneficial to protect the maintenance, reassembly and overhaul of the internal wiring harness.



    PET White Self Wrapping Split Braided Sleeving for cable management (PET woven mesh tube) is braided by environment friendly polyester monofil. PET, PA6, PA66, PPS are with good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving are smooth surface, bright color, various patterns.



    self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.



    flexible semi-rigid wrappable split PET braided cable sleeving is a perfect solution to protect wires, cables, wire harnesses where ease of installation is paramount. With a 25% overlap, this sleeving wraps securely to itself eliminating the need to secure the sleeving opening with any other method.



    Application



    Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.





    Technical data:


    1. Material: Polyester

    2. Operating range: - 50ºC - +150ºC

    3. Melt Point: 250ºC+-5ºC

    4. Flammability: VW-1



    Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.





    Our braided sleeve data :



    Open Type Self Closing Woven Sleeve



    sleeve diameter(mm): 5,8,10,13,16,19,25,29,32,38,50,60,70.
