Halogen Free Polyester Self Wrap Split Braided Sleeving

Halogen Free Polyester Self Wrap Split Braided Sleeving

    • Halogen Free Polyester Self Wrap Split Braided Sleeving
    • Halogen Free Polyester Self Wrap Split Braided Sleeving
  • Halogen Free Polyester Self Wrap Split Braided Sleeving

    Product Details:

    Place of Origin: Shenzhen of China
    Brand Name: Huiyunhai
    Certification: UL, RoHS, REACH, SGS, ISO
    Model Number: HYH-V

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 meters
    Packaging Details: standard export carton
    Payment Terms: T/T
    Supply Ability: 3 million meters per month
    Contact Now
    Detailed Product Description
    Material: PET, Pp Size: Custom
    Color: Custom Cutting Tool: Hot Cutting Knife
    Feature: Cable Wires Protection Certificates: UL CSA ROHS REACH
    High Light:

    Halogen Free Braided Split Sleeving

    ,

    PET Self Wrapping Braided Sleeving

    Black Self Wrap Split Braided Sleeving For Cable Harness



    Technical data of Self Wrap Split Braided Sleeving


    1. Material: Polyester

    2. Operating range: - 50ºC - +150ºC

    3. Melt Point: 250ºC+-5ºC

    4. Flammability: VW-1



    Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.




    1. Material: Polyester

    2. Operating range: - 50ºC - +150ºC

    3. Melt Point: 250ºC+-5ºC

    4. Flammability: VW-1



    Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.





    What's the special of Black Self Wrap Split Braided Sleeving For Cable Harness

    1. Flame-retardant and halogen-free.

    2. It offers durable abrasion resistance in a wide range of industrial applications.

    3. The open weave construction allows an easy installation on a bundle of hoses
    and cables, even if some with bulky or large connectors.



    Self-Closing Braided Sleeving is made of PET monofilament and PET multifilament or PET monofilament and Nylon multifilament,and then it is naturally rolled into a roll by a special process.The winding coverage can reach 25%.Easy to install and remove,beautiful,flame retardant,anti-wear.Mainly used for wiring of automobiles,military,ship, communication cable.



    Application of Self Wrap Split Braided Sleeving



    Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.



    Dose not trap heat or humidity Rot-free , Self-fitting over many shapes and sizes Self-extinguishing when used to encase typical non-flammable wires or cable Fray resistant.





    Description of Self Wrap Split Braided Sleeving



    The open self- closing braided sleeve is made of VO grade polyester monofilament, which has the characteristics of heat dissipation, wear resistance, acid resistance, dust resistance, softness, simple operation, convenience and quickness. The structure is beneficial to protect the maintenance, reassembly and overhaul of the internal wiring harness.



    PET White Self Wrapping Split Braided Sleeving for cable management (PET woven mesh tube) is braided by environment friendly polyester monofil. PET, PA6, PA66, PPS are with good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving are smooth surface, bright color, various patterns.

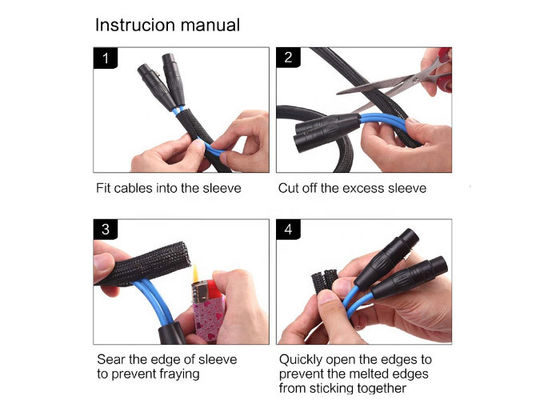

    self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.



    flexible semi-rigid wrappable split PET braided cable sleeving is a perfect solution to protect wires, cables, wire harnesses where ease of installation is paramount. With a 25% overlap, this sleeving wraps securely to itself eliminating the need to secure the sleeving opening with any other method.





    Our data description of Self Wrap Split Braided Sleeving





    Part No.

    I.D

    (d)

    Overlap

    (%)

    Max. Bundle Dia. Packing
    (L)
    HYH-006 6.0 mm 25 7.0 mm 100m
    HYH-009 9.0 mm   10.0 mm 100m
    HYH-013 13.0 mm   14.0 mm 50m
    HYH-016 16.0 mm   17.0mm 25m
    HYH-019 19.0 mm   20.0 mm 25m
    HYH-025 25.0 mm   26.0 mm 25m
    HYH-032 32.0 mm   33.0 mm 25m
    HYH-038 38.0 mm   40.0 mm 25m
    HYH-050 50.0 mm   52.0 mm 25m

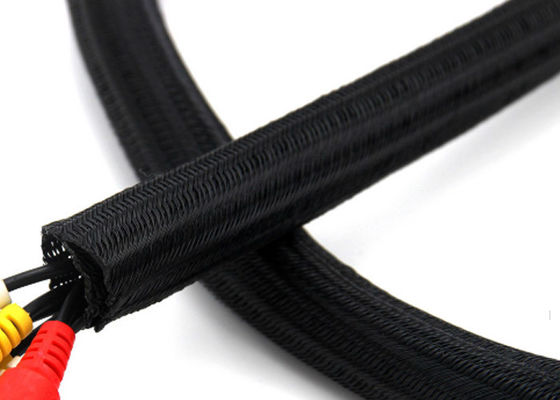

    Halogen Free Polyester Self Wrap Split Braided Sleeving 0







































    Halogen Free Polyester Self Wrap Split Braided Sleeving 1
