Wiring Harness Protective PET Expandable Braided Sleeving 3.0mm 15.0mm Thickness

Wiring Harness Protective PET Expandable Braided Sleeving 3.0mm 15.0mm Thickness

Wiring Harness Protective PET Expandable Braided Sleeving 3.0mm 15.0mm Thickness
Wiring Harness Protective PET Expandable Braided Sleeving 3.0mm 15.0mm Thickness

Product Details:

Place of Origin: China
Brand Name: HYH
Certification: UL,REACH,ROHS.Halogen free
Model Number: 003-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: USD+0.076-0.189+Meter
Packaging Details: 500meters/rool,100meters/roll, 100FT/roll
Delivery Time: 3-5work days
Payment Terms: T/T, D/P
Supply Ability: 10000+meter+3days
Contact Now
Detailed Product Description
Name: PET Braided Sleeve Material: PET
Size: 1mm-120mm Color: Colorful
Feature: Protection And Beautification MOQ: 500 Meters
High Light:

3.0mm PET Expandable Braided Sleeving

,

UL PET Expandable Braided Sleeving

,

ODM Electrical Wire Protective Sleeves

Customized PET braided sleeve for wiring harness 3.0mm-15.0mm

Product Details:

The PET braided expandable sleeving (HYH-BS) is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs. HYH-BS can be found in applications ranging from small office/home office to high tech wire and cable harnesses.



The wide range of available colors and sizes allows easy and systematic color coding in complex wiring and cabling schemes.



HYH-BS is braided from 10 mil polyethylene terephthalate (PET) monofilament yarns. The material has a wide operating temperature range(-25--+125°C), is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.

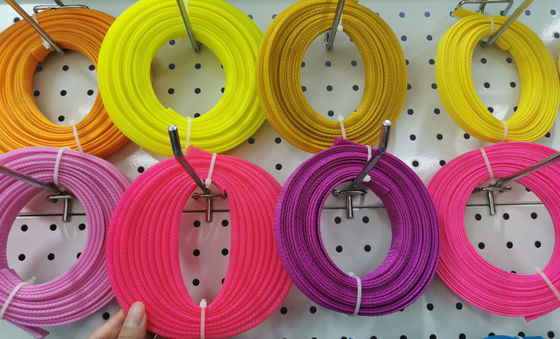

Wiring Harness Protective PET Expandable Braided Sleeving 3.0mm 15.0mm Thickness 0



Application:



Wiring Harness Protective PET Expandable Braided Sleeving 3.0mm 15.0mm Thickness 1



Certifications:

Wiring Harness Protective PET Expandable Braided Sleeving 3.0mm 15.0mm Thickness 2

Wiring Harness Protective PET Expandable Braided Sleeving 3.0mm 15.0mm Thickness 3





Product Specifications:

1. Width: 1mm - 150mm;


2. Length: 100m - 500m a roll for normal package OR 100ft-250ft a roll for small package


3. The extended range:50% - 100%;


4. Can provide free samples of 5-15 meter.



Product Parameter:

Product Sizes

Size Part Number Expansion Max Expansion Min Bulk Spool Shop Spool Lbs / 100'
1/16" HYH-BS-2 3/32" 3/64" 1,000' 250' 0.22
1/8" HYH-BS-3 1/4" 3/32" 1,000' 225' 0.2
1/4" HYH-BS-6 7/16" 1/8" 1,000' 200' 0.3
5/16" HYH-BS-8 15/32" 5/32" 500' 150' 0.5
3/8" HYH-BS-10 1/2" 3/16" 500' 125' 0.57
7/16" HYH-BS-11 5/8" 7/32" 500 125 0.68
1/2" HYH-BS-12 3/4" 1/4" 500' 100' 0.77
5/8" HYH-BS-16 1" 3/8" 500' 100' 0.95
3/4" HYH-BS-24 1 1/4" 1/2" 250' 75' 1.2
1" HYH-BS-19 1 5/8" 5/8" 250' 65' 1.34
1 1/4" HYH-BS-32 1 3/4" 3/4" 250' 50' 1.6
1 1/2" HYH-BS-38 2 1/8" 1" 200' 40' 1.96
1 3/4" HYH-BS-45 2 3/4" 1 1/4" 200' 30' 2.45
2" HYH-BS-50 3 1/2" 1 1/2" 200' 50' 2.6
2 1/2" HYH-BS-63 3 5/8" 1 3/4" 200' 50' 3.8
3" HYH-BS-76 4 3/4" 2 1/2" 100' 50' 3.8

1,Other specifications can also be customized.

2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm.
The larger the size, the larger the margin of error.

3,Please inquire for details according to each specification.



Storage:

1.The PET braided sleeving are suggested to be stored in the warehouse with temperature about 23℃, if in hot season, putting on air conditioning or other solution to cool down the warehouse should be taken.



2. The PET braided sleeving storage period is 12months. Please try to use up within 12 months while they are at perfect condition.



Packing And Shipping:



1. Over the sea: The sleeves are suggested to be shipped with reefer container. If less than container loading, anti-heat material is advised to be used for packing to protect the films.



3. Container over the land: The truck with electronic power should be used for moving the container between port and factory to keep the reefer container working.



FAQ:

1. What is your MOQ?
Normally our MOQ for each size is 1000 meters. If you think it is too much, we can discuss according to your requirement in details.

2. Can you offer free sample?
Yes, we can provide free samples of 5m - 15m.

3. What is your delivery time?
We will deliver in 15-20 work days.

4. Can you accept mixed products in one container?
Yes, we accept for sure.

Tag:

cotton braided sleeving, tinned cooper braided sleeving,Stainless steel braided sleeving.

Wiring Harness Protective PET Expandable Braided Sleeving 3.0mm 15.0mm Thickness 4

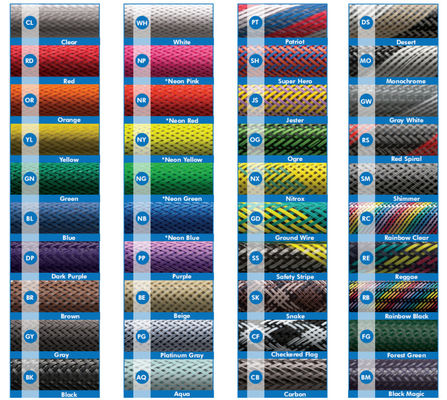

Also contact an account representative for relevant details regarding custom orders. See the web for the complete list of colors
