   Braided Sleeving, Colorful Life

Home ProductsElectrical Braided Sleeving

Single Layer Flat Tape PET Velcro Braided Wire Sleeve Red With Zipper

Single Layer Flat Tape PET Velcro Braided Wire Sleeve Red With Zipper

Single Layer Flat Tape PET Velcro Braided Wire Sleeve Red With Zipper
Single Layer Flat Tape PET Velcro Braided Wire Sleeve Red With Zipper
Single Layer Flat Tape PET Velcro Braided Wire Sleeve Red With Zipper
Product Details:
Place of Origin: China
Brand Name: HYH
Certification: REACH, ROHS,Halogen free, UL
Model Number: 3MM-100MM
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 500meters/roll. 100meters/roll, 100FT/roll
Delivery Time: 5-8 work days
Payment Terms: D/P, T/T
Supply Ability: 99999+METERS+PER MONTH
Contact Now
Detailed Product Description
Material: PET Color: Black,red,and Others
MOQ: 500meters Usage: Protection And Beautification
Special: Flame Retardant Materials Can Be Selected Expansion: Double
High Light:

PET Velcro Braided Wire Sleeve

,

Flat Tape Braided Wire Sleeve

,

Braided Wire Sleeve With Zipper

Customized red PET braided sleeve, Single layer braided flat tape , Velcro and zipper can be added

Product Details:

The PET braided expandable sleeving (HYH-BS) is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs. HYH-BS can be found in applications ranging from small office/home office to high tech wire and cable harnesses.



The wide range of available colors and sizes allows easy and systematic color coding in complex wiring and cabling schemes.



HYH-BS is braided from 10 mil polyethylene terephthalate (PET) monofilament yarns. The material has a wide operating temperature range(-25--+125°C), is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.

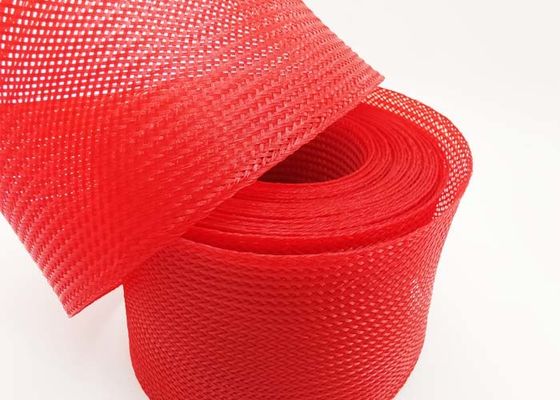

Single Layer Flat Tape PET Velcro Braided Wire Sleeve Red With Zipper 0

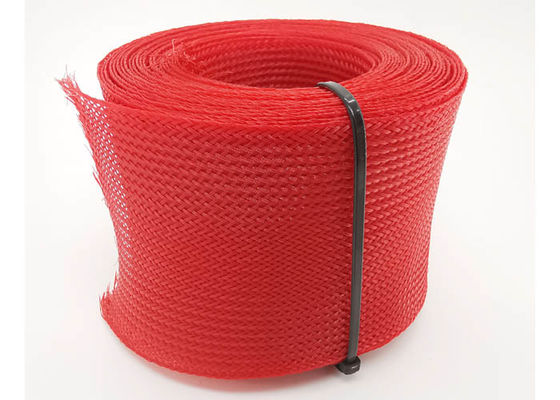

Single Layer Flat Tape PET Velcro Braided Wire Sleeve Red With Zipper 1



Application:

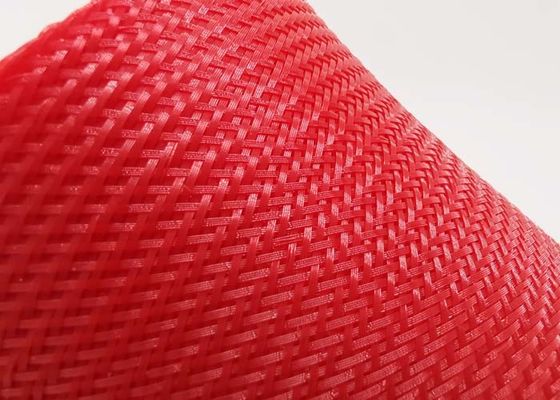

Single Layer Flat Tape PET Velcro Braided Wire Sleeve Red With Zipper 2



Certifications:

Single Layer Flat Tape PET Velcro Braided Wire Sleeve Red With Zipper 3

Single Layer Flat Tape PET Velcro Braided Wire Sleeve Red With Zipper 4





Product Specifications:

1. Width: 1mm - 150mm;


2. Length: 100m - 500m a roll for normal package OR 100ft-250ft a roll for small package


3. The extended range:50% - 100%;


4. Can provide free samples of 5-15 meter.



Product Parameter:

Product Sizes

Size Part Number Expansion Max Expansion Min Bulk Spool Shop Spool Lbs / 100'
1/16" HYH-BS-2 3/32" 3/64" 1,000' 250' 0.22
1/8" HYH-BS-3 1/4" 3/32" 1,000' 225' 0.2
1/4" HYH-BS-6 7/16" 1/8" 1,000' 200' 0.3
5/16" HYH-BS-8 15/32" 5/32" 500' 150' 0.5
3/8" HYH-BS-10 1/2" 3/16" 500' 125' 0.57
7/16" HYH-BS-11 5/8" 7/32" 500 125 0.68
1/2" HYH-BS-12 3/4" 1/4" 500' 100' 0.77
5/8" HYH-BS-16 1" 3/8" 500' 100' 0.95
3/4" HYH-BS-24 1 1/4" 1/2" 250' 75' 1.2
1" HYH-BS-19 1 5/8" 5/8" 250' 65' 1.34
1 1/4" HYH-BS-32 1 3/4" 3/4" 250' 50' 1.6
1 1/2" HYH-BS-38 2 1/8" 1" 200' 40' 1.96
1 3/4" HYH-BS-45 2 3/4" 1 1/4" 200' 30' 2.45
2" HYH-BS-50 3 1/2" 1 1/2" 200' 50' 2.6
2 1/2" HYH-BS-63 3 5/8" 1 3/4" 200' 50' 3.8
3" HYH-BS-76 4 3/4" 2 1/2" 100' 50' 3.8

1,Other specifications can also be customized.

2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm.
The larger the size, the larger the margin of error.

3,Please inquire for details according to each specification.



Storage:

1.The PET braided sleeving are suggested to be stored in the warehouse with temperature about 23℃, if in hot season, putting on air conditioning or other solution to cool down the warehouse should be taken.



2. The PET braided sleeving storage period is 12months. Please try to use up within 12 months while they are at perfect condition.



Packing And Shipping:



1. Over the sea: The sleeves are suggested to be shipped with reefer container. If less than container loading, anti-heat material is advised to be used for packing to protect the films.



3. Container over the land: The truck with electronic power should be used for moving the container between port and factory to keep the reefer container working.



FAQ:

1. What is your MOQ?
Normally our MOQ for each size is 1000 meters. If you think it is too much, we can discuss according to your requirement in details.

2. Can you offer free sample?
Yes, we can provide free samples of 5m - 15m.

3. What is your delivery time?
We will deliver in 15-20 work days.

4. Can you accept mixed products in one container?
Yes, we accept for sure.

Tag:

cotton braided sleeving, tinned cooper braided sleeving,Stainless steel braided sleeving.

Single Layer Flat Tape PET Velcro Braided Wire Sleeve Red With Zipper 5



Also contact an account representative for relevant details regarding custom orders. See the web for the complete list of colors
