Braided Sleeving, Colorful Life

|
| Place of Origin: | China |
| Brand Name: | HYH Tech |
| Certification: | UL,RoHS,SGS,REACH,ISO,IAFT16949. |
| Model Number: | HYH-SS304 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100 m/spool with export carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T 100% advanced payment |
| Supply Ability: | 3000000 meters per month |
| Material: | Stainless Steel Monofilament | Name: | Expandable Stainless Steel Braided Sleeving |
|---|---|---|---|
| Function: | Shielding And Protection | Application: | Automotive |
| Size: | 3mm - 50mm | Logo: | Customized |
| High Light: | 50mm Stainless Steel Cable Sleeve,Expandable Stainless Steel Cable Sleeve,IAFT16949 braided stainless steel sleeving |
||

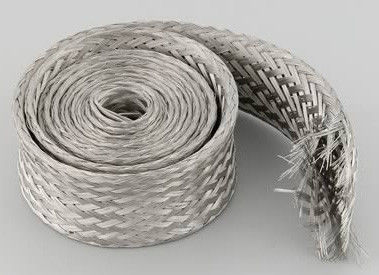

50mm Stainless Steel Cable Sleeve Abrasion Resistance For Automotive Tube Protection
Expandable Stainless Steel Braided Sleeving For Cable And Wire Protection
Composition:
1. Stainless/Tinned Copper Braid Sleeve
Description:
Stainless steel 304 metal/tinned copper braided sleeving is a high temperature, heat and flame resistant thermal insulating sleeve that will stand 900°C continuous exposure. The base high temperature braided fiberglass sleeve is fabricated from high quality type E fiberglass that will not burn. The sleeve is then coated with a vermiculite dispersant adds abrasion resistance and anti-fray properties
Application:
1. copper braided sleeve used for the flexible conductor of electric installation,switch gear,electric frunace,storage battery,etc.
2. copper braided sleeve used for the flexible conductor of electric installation,switch gear,electric frunace,storage battery,etc.
Serrated scissors are used when cutting
Color: Silver
Size: 1MM--100MM
Parameters: commonly used wire diameter 0.05MM-0.15MM silk weaving
Application

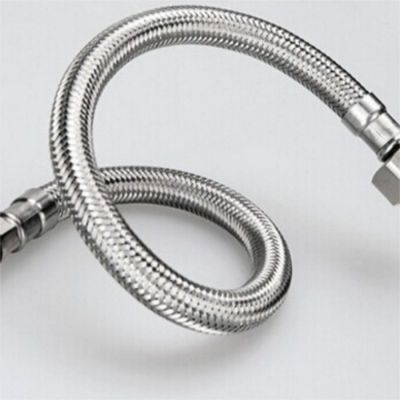

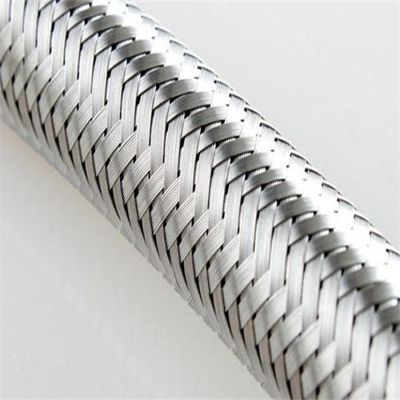

It's used to cover cables, wire harnesses, tubes, industrial hoses,where is required an additional protection.
Sizes
| Nom. Size |
Product Part # |
Wall Thick. |
Expansion Range |
Standard Spool Put-Ups |
||
| Min. | Max. | Bulk | Shop | |||
| 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" |
SSL0.06SV SSL0.13SV SSL0.25SV SSL0.38SV SSL0.50SV SSL0.75SV SSL1.00SV SSL1.25SV SSL1.50SV |
.013" .013" .013" .013" .013" .013" .025" .025" .025" |
- 1/16" 3/16" 1/4" 3/8" 1/2" 5/8" 3/4" 1" |
- 11/32" 13/32" 5/8" 3/4" 1 1/4" 1 5/16" 1 3/4" 2 1/8" |
250' 250' 250' 250' 100' 100' 100' 100' 100' |
100' 100' 100' 100' 50' 50' 50' 50' 50' |
FAQ:
Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. What is your price term?
A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.
Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can provide free samples, the customers just need to pay the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.
Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
