50mm Polyester Self Wrapping Split Braided Sleeving Flame Retardant

50mm Polyester Self Wrapping Split Braided Sleeving Flame Retardant

50mm Polyester Self Wrapping Split Braided Sleeving Flame Retardant
50mm Polyester Self Wrapping Split Braided Sleeving Flame Retardant
50mm Polyester Self Wrapping Split Braided Sleeving Flame Retardant
Product Details:
Place of Origin: China
Brand Name: HYH TECH
Certification: UL, RoHS, REACH, SGS, ISO
Model Number: HYH-304
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 100 - 500 meters/spool
Delivery Time: 5-10 working days
Payment Terms: T/T
Supply Ability: 3 million meters per month
Contact Now
Detailed Product Description
Material: PET Size: 6mm-50mm
Color: Customized Cutting Tool: Hot Cutting Knife
Feature: Flame Retardant, Cable And Wire Harnesses Protection Certificates: UL, RoHS, REACH, SGS, ISO
High Light:

Polyester Self Wrapping Split Braided Sleeving

,

50mm Self Wrapping Split Braided Sleeving

,

50mm polyester braided sleeving

50mm Polyester Self Wrapping Split Braided Sleeving Flame Retardant



Automotive Cable And Wire Harness Protection Flame Retardant PET Self Closing Wrap Split Braided Cable Sleeve





Description of PET Self Closing Wrap Braided Expandable Sleeving widly used for organizing automatic wiring harnesses and Cables

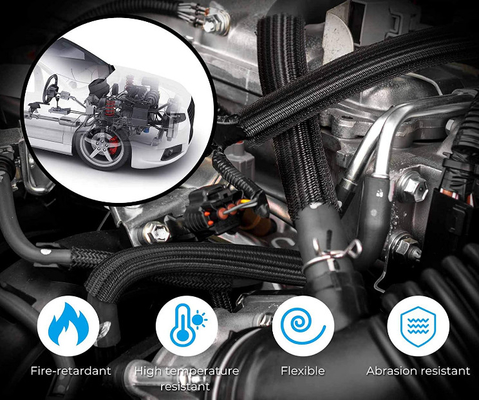

   PET Self Closing Wrap automotive Braided Cable Sleeve has been engineered from the ground up to meet the demanding specifications of today's automotive wiring harness industry.

   The combination of flame retardance, ease of installation, and complete coverage makes PET Self Closing Wrap Braided Cable Sleeve to be an ideal solution for automotive applications.





Technical data of PET Self Closing Wrap Braided Expandable Sleeving For Cable Harness


1. Material: Polyester

2. Operating range: - 50ºC - +150ºC

3. Melt Point: 250ºC+-5ºC

4. Flammability: VW-1



5. Features: Flame retardant, High temprature resistance, abrasion resistance.

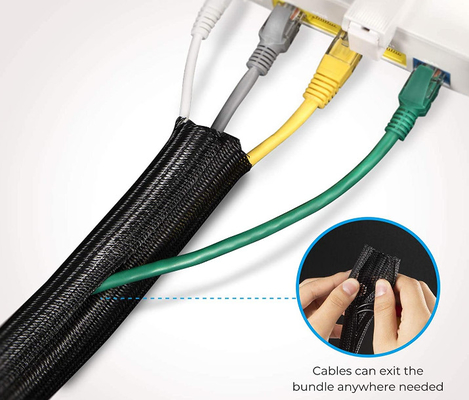

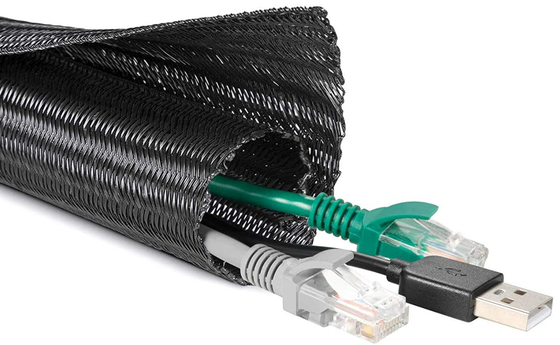

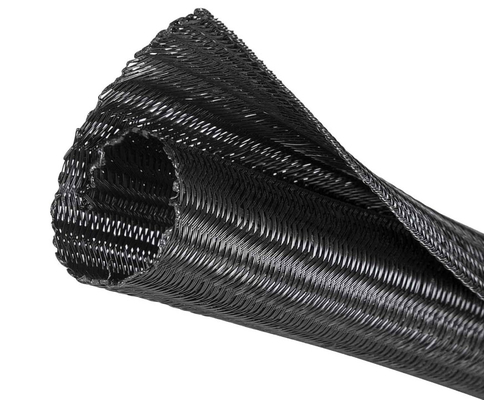

Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.





Our data description of PET Self Closing Wrap Braided Expandable Sleeving For Cable Harness





Part No.

I.D

(d)

Overlap

(%)

Max. Bundle Dia. Packing
(L)
HYH-006 6.0 mm 25 7.0 mm 100m
HYH-009 9.0 mm   10.0 mm 100m
HYH-013 13.0 mm   14.0 mm 50m
HYH-016 16.0 mm   17.0mm 25m
HYH-019 19.0 mm   20.0 mm 25m
HYH-025 25.0 mm   26.0 mm 25m
HYH-032 32.0 mm   33.0 mm 25m
HYH-038 38.0 mm   40.0 mm 25m
HYH-050 50.0 mm   52.0 mm 25m







50mm Polyester Self Wrapping Split Braided Sleeving Flame Retardant 0







50mm Polyester Self Wrapping Split Braided Sleeving Flame Retardant 1



50mm Polyester Self Wrapping Split Braided Sleeving Flame Retardant 2







FAQ:





Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.



Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
A:
We can provide free samples, the customers just need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
