Braided Sleeving, Colorful Life
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | HuiYunHai |
| Minimum Order Quantity: | 100 meters |
|---|---|
| Price: | $1.00 - $8.50/meters |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9999999 Bag/Bags per Month |
| Type: | Braided Sleeving | Halogen Free: | Yes |
|---|---|---|---|
| Melting Point: | 240°C | Size: | Custom |
| Material: | PET Monofilament | Flame Retardant: | Yes |
| Expandable: | 150%-200% | UV Resistant: | Yes |
| High Light: | Custom Color PET Expandable Sleeving,UV Resistant PET Expandable Sleeving,PET monofilament Expandable Braided Sleeving |
||

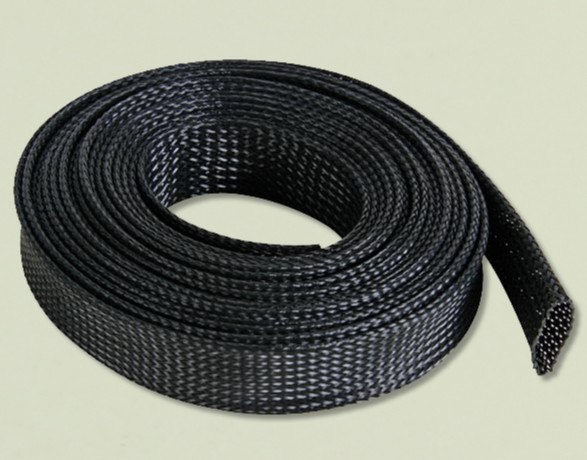

PEEK braided sleeve (PolyEtherEther-Ketone) is an advanced polymer with excellent physical properties. It is flame retardant, featuring a V-0 flammability rating, and is resistant to heat up to 500°F, acids, solvents, and bases. This material is non-toxic and environmentally friendly and is also capable of resisting damage from radiation, as well as performing in UHV (Ultra High Vacuum) environments.
PEEK braided sleeve is frequently used in the aerospace, automotive, teletronic and chemical processing industries, and even in the medical implant and biomedical industries. It can also withstand thousands of sterilization cycles with no damage or reduction in quality.
PEEK braided expandable sleeving is made of pure unfilled PEEK filaments measuring 10 mil in diameter. Once applied, the sleeving will expand to fit onto connectors and splices, as well as providing full coverage for wires, hoses and cable bundles for advanced engineering projects.
| Product Sizes | ||||||
| Size | Part Number | Expansion Max | Expansion Min | Bulk Spool | Shop Spool | Lbs / 100' |
| 1/16" | HYH-BS-2 | 3/32" | 3/64" | 1,000' | 250' | 0.22 |
| 1/8" | HYH-BS-3 | 1/4" | 3/32" | 1,000' | 225' | 0.2 |
| 1/4" | HYH-BS-6 | 7/16" | 1/8" | 1,000' | 200' | 0.3 |
| 5/16" | HYH-BS-8 | 15/32" | 5/32" | 500' | 150' | 0.5 |
| 3/8" | HYH-BS-10 | 1/2" | 3/16" | 500' | 125' | 0.57 |
| 7/16" | HYH-BS-11 | 5/8" | 7/32" | 500 | 125 | 0.68 |
| 1/2" | HYH-BS-12 | 3/4" | 1/4" | 500' | 100' | 0.77 |
| 5/8" | HYH-BS-16 | 1" | 3/8" | 500' | 100' | 0.95 |
| 3/4" | HYH-BS-24 | 1 1/4" | 1/2" | 250' | 75' | 1.2 |
| 1" | HYH-BS-19 | 1 5/8" | 5/8" | 250' | 65' | 1.34 |
| 1 1/4" | HYH-BS-32 | 1 3/4" | 3/4" | 250' | 50' | 1.6 |
| 1 1/2" | HYH-BS-38 | 2 1/8" | 1" | 200' | 40' | 1.96 |
| 1 3/4" | HYH-BS-45 | 2 3/4" | 1 1/4" | 200' | 30' | 2.45 |
| 2" | HYH-BS-50 | 3 1/2" | 1 1/2" | 200' | 50' | 2.6 |
| 2 1/2" | HYH-BS-63 | 3 5/8" | 1 3/4" | 200' | 50' | 3.8 |
| 3" | HYH-BS-76 | 4 3/4" | 2 1/2" | 100' | 50' | 3.8 |
| 1,Other specifications can also be customized. | ||||||
|
2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm. 3,Please inquire for details according to each specification. |
||||||
HuiYunHai, a leading supplier from Guangdong, China, provides Pet Expandable Braided Sleeving with unbeatable quality and price. The PET expandable sleeving is suitable for automotive wire sheathing and other applications. It has excellent UV resistance and high abrasion resistance, making it optimal for use in harsh environment. The material is made of PET and PolyEtherEther-Ketone, which has an operating temperature range of -40°C to 125°C. It is easy to cut with scissors or hot knife.
The minimum order quantity for Pet Expandable Braided Sleeving is 100 meters. The price range is from $1.00 to $8.50 per meter. Payment terms include L/C, D/A, D/P, T/T, Western Union, MoneyGram. HuiYunHai is capable of supplying up to 9999999 Bag/Bags per Month.
Choose Pet Expandable Braided Sleeving from HuiYunHai for superior performance and affordability.
PET Expandable Braided Sleeving technical support and service includes:
FAQ:
Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. What is your price term?
A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.
Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can provide free samples, the customers just need to pay the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.
Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
