Tinned Copper Braided Sleeving
>
High Abrasion - Resistant Tinned Copper Braided Sleeving For Flexible Electric Installation

High Abrasion - Resistant Tinned Copper Braided Sleeving For Flexible Electric Installation

Brand Name: Huiyunhai
Model Number: HYH-TS
MOQ: Negotiable
Price: Negotiable
Packaging Details: standard export carton,special packing
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, REACH, SGS, ISO
Product Name:
Tinned Copper Braided Sleeving
Size:
Custom
Usage:
For Shielding
Material:
Tinned Copper
Sample:
Available
Feature:
High Abrasion- Resistant
High Light:

cable shielding wrap

,

metallic braided sleeving

Product Description

High Abrasion- resistant Tinned Copper Braided Sleeving For Flexible Electric Installation





Tinned copper braided sleeve/ tinned copper braided belt/ copper braided wire, is braided by multi-strand (example: 13s, 16s, 24s, 36s, 40s, 48s, 64s, 96s) high quality round copper wire or tinned soft round copper wire with the way of single layer or multilayer.



The outer diameter size of the copper wire: 0.1mm, 0.12mm, 0.15mm, 0.20mm.


The DC resistance ( 20℃ )of copper braided wire is not more than 0.22 Ωmm2 /m ; the DC resistance ( 20℃ )of tinned copper braided wire is not more than 0.0234Ω mm2 /m.



Application of tinner copper braided sleeve



1. copper braided sleeve used for the flexible conductor of electric installation,switch gear,electric frunace,storage battery,etc.



2. Tinned copper braided wire is used as flexible jointing wire of electric appliance, switch appliance electric stove and storage battery etc. such as Cable, CRT Assembly Wire, Television, Computer Monitor.ETC signal pickup instruments. Braided copper wire can be provided rolled flat or in tubular form. Flat braids are generally used for flexible connections, electrical leads and grounding straps.



3.  The braided copper tape is made by braiding a number of spindles(24,36,48) of best quality round



wires(0.10, 0.15, 0.20) or soft Sn-coated wires(0.10, 0.15) to become single layer or multi layers type.



4.  DC resistivity of the copper braided tape (20°C) is less than 0.022Ω.mm2/m



Features of The Sleeves:



1).  Nominal Voltage: 600V.
2).  Temperature Range: -60°C to +1500°C
3).  O.D.Allowance: ±0.10mm.



Details:



1) Multi-purpose metal braid provides shielding and grounding for equipment or wire harnesses , to protect your investment.

2) Expandable design allows for quick and easy installation of cable or wire bundles

3) Quality tinned copper braid can be easily soldered to connectors and used for custom-length earth straps.

4) Resists chemicals and the elements for use in rugged or exposed applications

5) Durable construction provides superior protection from accidental cuts or consistent abrasion

6) Easily cuts with shears, however heat shrink or electrical tape is recommended to terminate ends, to prevent them from fraying.



Description of metal tinned copper braided sleeving



Copper foil shielding sleeving is wowen with copper foil filament,it is used for various electrical and insustrial fields where EMI shielding,excellent protection and lightweight are required.It is lighter and more flexible than tinned cooper braided sleeving,it is a perfect combination of economy and durability,it can be used as connectors with highly flexible and easily to install.



braided copper wire used for the flexible conductor of electric installation,switch gear,electric frunace,storage battery,etc.







Sizes of the sleeves:





High Abrasion - Resistant Tinned Copper Braided Sleeving For Flexible Electric Installation 0









Technical data:



Material: Copper filament
Operating range - 40°C - +150°C
Flammability VW-1
Standard colour Tinned colour
Certificate ROHS
Cutting tool Scissors





Functions of Tinned Copper Braided Sleeving:







NAME 3/4" Tinned Copper Metal PET Expandable Braided Sleeving For Cable Harness
Introduction

6MM Stainless steel 304 metal braided sleeving is a high temperature, heat and flame resistant thermal insulating sleeve that will stand 900°C continuous exposure. The base high temperature braided fiberglass sleeve is fabricated from high quality type E fiberglass that will not burn. The sleeve is then coated with a vermiculite dispersant adds abrasion resistance and anti-fray properties



TYPE EMI, RFI, ESD Protection
Material Tinned Copper
Application

EMI, RFI, ESD protection

Grounding straps

Engine dress-up

Military applications

Extreme blowout protection

Expands for easy installation



Specification By customers design

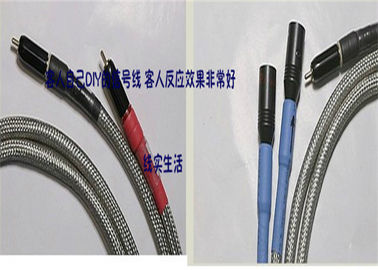

High Abrasion - Resistant Tinned Copper Braided Sleeving For Flexible Electric Installation 1

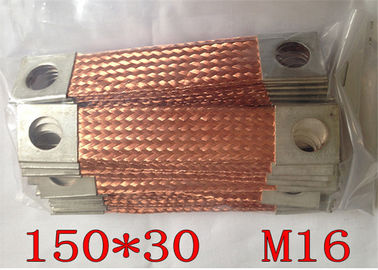

High Abrasion - Resistant Tinned Copper Braided Sleeving For Flexible Electric Installation 2
