| Brand Name: | Huiyunhai |
| Model Number: | HYH |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Standard export carton |

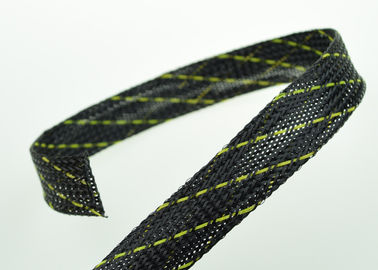

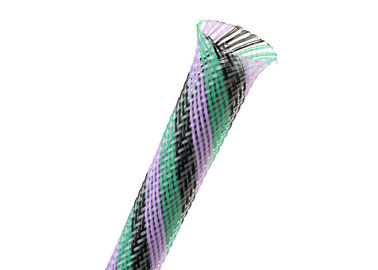

Colorful PET Expandable Braided Sleeving For Cable Harness
PET Eexpandable Braided Cable Sleeving
The environmentally friendly braided sleeve is mainly used in computer power cords, audio video cables, automobiles, aviation, wire and cable industries, etc. It plays a protective and beautifying role and has certain shielding performance. It is most suitable for the audio medical industry, economical and easy to organize. At the same time, it has very good wear and corrosion resistance, suitable for wire harness protection, wear, corrosion, decoration and storage in various mechanical and electronic industries.
The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.
Braided Expandable Cable Sleeving Application:
1. Automobile wires protection
2. Structured cabling system
3. A/V cables & cables
4. Industrial hoses & tubes protection
Product feactures of PET Eexpandable Braided Cable Sleeving
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
What is the Special of our Heat Shrink PET Expandable Braided Sleeve?
1. Braided from 10 mil polyethylene terepthalate (PET) monofilament yarns.
2. It expands to 2 times the original size.
3. Excellent cut through and abrasion resistance
4. High quality alternative to Bentley Harris Expando, Alpha GRP-110, PET sleeving
5. Continuous use temperature of -70°C to 125°C (-103°F to 257°F)
6. Melt temperature of 260°C (500°F)
7. Expands up to three times its resting diameter
8. Halogen Free, ROHS compliant
Description of braided sleeving
Material: PET
Diameter: 8mm
Length: 10 M/393.7inches
Expanding Ratio: 150%
Color: White
Melting point: 230 °C ± 5
Tinting strength: 100 ± 5 °C
Fireproofing grade: UL94V-2
Temperature endurance: -50 °C~ +150 °C
Main Properties for Heat Shrink PET Eexpandable Braided Cable Sleeving
1. Operating temperature: -50°C~150°C
2. Melting point: 250±5°C.
3. Flammability: UL VW-1
4. Standard color: White, Black, Gray, Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern
5. Cutting tool: Hot knife
6. Certificate: RoHS, MSDS
Specifications of expandable braided sleeve
| Model | Natural OD(MM) |
Max Expand OD(MM) |
N.W(g) | Packing (M/spool) |
Model | Natural OD(MM)) |
Max Expand OD(MM) |
N.W(g) | Packing (M/spool) |
|
| 161020 | 1 | 2 | 2.5 | 1000 | 641025 | 8 | 16 | 7 | 500 | |
| 161025 | 1 | 2 | 2.5 | 1000 | 642020 | 12 | 25 | 10.5 | 500 | |
| 162020 | 2 | 4 | 3 | 1000 | 642025 | 14 | 30 | 12 | 500 | |
| 162025 | 3 | 6 | 3 | 1000 | 643020 | 16 | 32 | 14 | 500 | |
| 163020 | 3 | 6 | 4 | 1000 | 643025 | 18 | 35 | 17 | 250 | |
| 163025 | 4 | 8 | 4 | 1000 | 721020 | 8 | 16 | 6.5 | 800 | |
| 241020 | 2 | 4 | 3 | 1000 | 721025 | 9 | 18 | 7.5 | 800 | |
| 241025 | 2 | 4 | 3 | 1000 | 722020 | 14 | 28 | 12 | 500 | |
| 242020 | 3 | 6 | 4.5 | 1000 | 722025 | 16 | 32 | 14 | 500 | |
| 242025 | 4 | 8 | 4.5 | 1000 | 723020 | 18 | 35 | 16 | 300 | |
| 243020 | 4 | 8 | 5 | 800 | 723025 | 23 | 45 | 19 | 200 | |
| 243025 | 5 | 10 | 5.5 | 500 | 961020 | 10 | 20 | 8 | 500 | |
| 321020 | 3 | 6 | 3 | 1000 | 961025 | 11 | 22 | 9 | 560 | |
| 321025 | 3 | 6 | 3 | 1000 | 962020 | 20 | 40 | 14 | 500 | |
| 322020 | 5 | 10 | 4.5 | 500 | 962025 | 25 | 50 | 16 | 500 | |
| 322025 | 6 | 12 | 4.5 | 500 | 963020 | 28 | 55 | 18 | 300 | |
| 323020 | 6 | 12 | 6 | 500 | 963025 | 35 | 70 | 25 | 100 | |
| 323025 | 7 | 14 | 7.5 | 500 | 964020 | 30 | 60 | 26 | 100 | |
| 401020 | 4 | 8 | 3.5 | 800 | 964025 | 36 | 72 | 28 | 100 | |
| 401025 | 4 | 8 | 3.5 | 800 | 965025 | 40 | 80 | 46 | 100 | |
| 402020 | 6 | 12 | 5.5 | 500 | 1201020 | 10 | 20 | 10 | 300 | |
| 402025 | 8 | 14 | 6 | 500 | 1201025 | 12 | 22 | 13 | 300 | |
| 403020 | 8 | 16 | 7 | 600 | 1202020 | 22 | 45 | 15 | 200 | |
| 403025 | 10 | 20 | 10 | 400 | 1202025 | 26 | 32 | 18 | 100 | |
| 481020 | 5 | 10 | 4 | 1000 | 1203020 | 32 | 65 | 26 | 100 | |
| 481025 | 6 | 12 | 4.5 | 500 | 1203025 | 38 | 75 | 32 | 100 | |
| 482020 | 8 | 16 | 5.5 | 500 | 1204020 | 40 | 80 | 30 | 100 | |
| 482025 | 10 | 20 | 7.5 | 500 | 1204025 | 45 | 90 | 40 | 100 | |
| 483020 | 10 | 20 | 8.5 | 600 | 1205025 | 50 | 100 | 50g | 50 | |
| 483025 | 12 | 25 | 12 | 300 | 1206025 | 64 | 130 | 60g | 50 | |
| 561020 | 6 | 12 | 5 | 1000 | 1207025 | 76 | 150 | 70g | 50 | |
| 561025 | 7 | 14 | 6 | 800 | 1486025 | 80 | 160 | 80g | 50 | |
| 562020 | 10 | 20 | 8.5 | 500 | 1487025 | 90 | 180 | 90g | 50 | |
| 562025 | 12 | 25 | 10 | 500 | 1488025 | 100 | 200 | 100g | 50 | |
| 563020 | 14 | 30 | 11 | 500 | flat1053020 | |||||
| 563025 | 16 | 32 | 15 | 250 | flat1053025 | |||||
| 641020 | 7 | 14 | 6 | 1000 | flat1054025 |
Advantages of Braided Sleeving
The thermal class covers: B, F, H, N,and C , the enterprise is managed strictly according to ISO9001 system (Registered No.: E03817Q01957R2M), and passed UL approval ( File No. : E345432) ,all products comply with IEC standard and ROHS as well as REACH test.
|
|
