| Brand Name: | Huiyunhai |
| Model Number: | HYH |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Standard export carton |

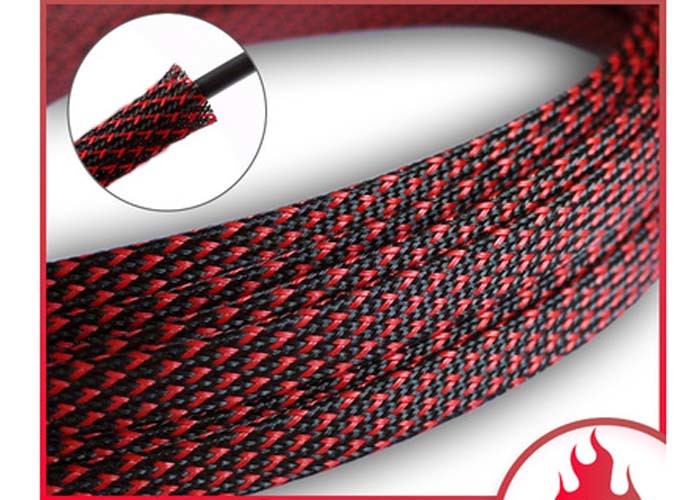

PET Expandable Braided Sleeving, Flexo Braided Sleeving
Product feactures of PET Eexpandable Braided Cable Sleeving
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
What is the Special of our Heat Shrink PET Expandable Braided Sleeve?
1. Braided from 10 mil polyethylene terepthalate (PET) monofilament yarns.
2. It expands to 2 times the original size.
3. Excellent cut through and abrasion resistance
4. High quality alternative to Bentley Harris Expando, Alpha GRP-110, PET sleeving
5. Continuous use temperature of -70°C to 125°C (-103°F to 257°F)
6. Melt temperature of 260°C (500°F)
7. Expands up to three times its resting diameter
8. Halogen Free, ROHS compliant
Description of braided sleeving
Material: PET
Diameter: 8mm
Length: 10 M/393.7inches
Expanding Ratio: 150%
Color: White
Melting point: 230 °C ± 5
Tinting strength: 100 ± 5 °C
Fireproofing grade: UL94V-2
Temperature endurance: -50 °C~ +150 °C
Features:
Excellent softness, easy bending, can loose to close, easy to operation, lead good scalability, elasticity and abrasion resistance
Purpose: The power cord wire protection and tighten.
Braided Expandable Cable Sleeving Application:
1. Automobile wires protection
2. Structured cabling system
3.A/V cables & cables
4.Industrial hoses & tubes protection
Main Properties for Heat Shrink PET Eexpandable Braided Cable Sleeving
1. Operating temperature: -50°C~150°C
2. Melting point: 250±5°C.
3.Flammability: UL VW-1
4.Standard color: White, Black, Gray, Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern
5.Cutting tool: Hot knife
6. Certificate: RoHS, MSDS
| Application Fields | Electronics, automotive, marine and industrial wire harnessing application |
| Sleeve Material | 0.25mm PET monofilament |
| Working Temperature | -70°C to 125°C (-103°F to 257°F) |
| Melt Point | 260°C (500°F) |
| Flame Retardant | Yes |
| Flammability Class | UL 94 V1 |
| Size | 20mm |
| Available Size | 3mm~100mm |
| Standard Color | Black,White,Grey |
| Available Color | 64 colors available, accorcing to our color guide |
| Packaging | 200m/Roll,4 rolls/ctn |
| Carton size: | 52*52*18cm or customized |
| Container: | 2000 rolls or 500 cartons for one 20' container |
| Full Size Sample Lead time: | As usual 3-7 working days |
| Production Lead time: | 7~10 days |
Notes for Heat Shrink PET Eexpandable Braided Cable Sleeving
Huiyunhai nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight , highly flexible and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft, slick surface resisting snags when dragged over rough surface.
The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.
The environmentally friendly braided sleeve is mainly used in computer power cords, audio video cables, automobiles, aviation, wire and cable industries, etc. It plays a protective and beautifying role and has certain shielding performance. It is most suitable for the audio medical industry, economical and easy to organize. At the same time, it has very good wear and corrosion resistance, suitable for wire harness protection, wear, corrosion, decoration and storage in various mechanical and electronic industries.
The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.
Properties: Excellent flexibility, can be loosely, easy to lead wires, excellent contractility, elasticity and abrasive resistance.
Specifications of expandable braided sleeve
| Model | Natural OD(MM) |
Max Expand OD(MM) |
N.W(g) | Packing (M/spool) |
Model | Natural OD(MM)) |
Max Expand OD(MM) |
N.W(g) | Packing (M/spool) |
|
| 161020 | 1 | 2 | 2.5 | 1000 | 641025 | 8 | 16 | 7 | 500 | |
| 161025 | 1 | 2 | 2.5 | 1000 | 642020 | 12 | 25 | 10.5 | 500 | |
| 162020 | 2 | 4 | 3 | 1000 | 642025 | 14 | 30 | 12 | 500 | |
| 162025 | 3 | 6 | 3 | 1000 | 643020 | 16 | 32 | 14 | 500 | |
| 163020 | 3 | 6 | 4 | 1000 | 643025 | 18 | 35 | 17 | 250 | |
| 163025 | 4 | 8 | 4 | 1000 | 721020 | 8 | 16 | 6.5 | 800 | |
| 241020 | 2 | 4 | 3 | 1000 | 721025 | 9 | 18 | 7.5 | 800 | |
| 241025 | 2 | 4 | 3 | 1000 | 722020 | 14 | 28 | 12 | 500 | |
| 242020 | 3 | 6 | 4.5 | 1000 | 722025 | 16 | 32 | 14 | 500 | |
| 242025 | 4 | 8 | 4.5 | 1000 | 723020 | 18 | 35 | 16 | 300 | |
| 243020 | 4 | 8 | 5 | 800 | 723025 | 23 | 45 | 19 | 200 | |
| 243025 | 5 | 10 | 5.5 | 500 | 961020 | 10 | 20 | 8 | 500 | |
| 321020 | 3 | 6 | 3 | 1000 | 961025 | 11 | 22 | 9 | 560 | |
| 321025 | 3 | 6 | 3 | 1000 | 962020 | 20 | 40 | 14 | 500 | |
| 322020 | 5 | 10 | 4.5 | 500 | 962025 | 25 | 50 | 16 | 500 | |
| 322025 | 6 | 12 | 4.5 | 500 | 963020 | 28 | 55 | 18 | 300 | |
| 323020 | 6 | 12 | 6 | 500 | 963025 | 35 | 70 | 25 | 100 | |
| 323025 | 7 | 14 | 7.5 | 500 | 964020 | 30 | 60 | 26 | 100 | |
| 401020 | 4 | 8 | 3.5 | 800 | 964025 | 36 | 72 | 28 | 100 | |
| 401025 | 4 | 8 | 3.5 | 800 | 965025 | 40 | 80 | 46 | 100 | |
| 402020 | 6 | 12 | 5.5 | 500 | 1201020 | 10 | 20 | 10 | 300 | |
| 402025 | 8 | 14 | 6 | 500 | 1201025 | 12 | 22 | 13 | 300 | |
| 403020 | 8 | 16 | 7 | 600 | 1202020 | 22 | 45 | 15 | 200 | |
| 403025 | 10 | 20 | 10 | 400 | 1202025 | 26 | 32 | 18 | 100 | |
| 481020 | 5 | 10 | 4 | 1000 | 1203020 | 32 | 65 | 26 | 100 | |
| 481025 | 6 | 12 | 4.5 | 500 | 1203025 | 38 | 75 | 32 | 100 | |
| 482020 | 8 | 16 | 5.5 | 500 | 1204020 | 40 | 80 | 30 | 100 | |
| 482025 | 10 | 20 | 7.5 | 500 | 1204025 | 45 | 90 | 40 | 100 | |
| 483020 | 10 | 20 | 8.5 | 600 | 1205025 | 50 | 100 | 50g | 50 | |
| 483025 | 12 | 25 | 12 | 300 | 1206025 | 64 | 130 | 60g | 50 | |
| 561020 | 6 | 12 | 5 | 1000 | 1207025 | 76 | 150 | 70g | 50 | |
| 561025 | 7 | 14 | 6 | 800 | 1486025 | 80 | 160 | 80g | 50 | |
| 562020 | 10 | 20 | 8.5 | 500 | 1487025 | 90 | 180 | 90g | 50 | |
| 562025 | 12 | 25 | 10 | 500 | 1488025 | 100 | 200 | 100g | 50 | |
| 563020 | 14 | 30 | 11 | 500 | flat1053020 | |||||
| 563025 | 16 | 32 | 15 | 250 | flat1053025 | |||||
| 641020 | 7 | 14 | 6 | 1000 | flat1054025 |
Notes:
1. Nominal size indicates the flat width.
2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
4. Special packing, sizes, and colors can be supplied upon request.
5. All numerical data are average or typical values, not including customized sizes.
|
|
