| Brand Name: | Huiyunhai |
| Model Number: | HYH-TS |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export carton,special packing |

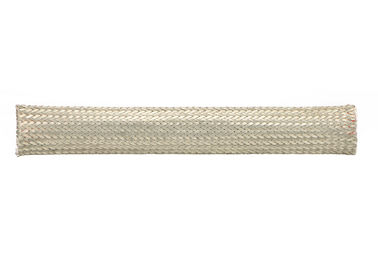

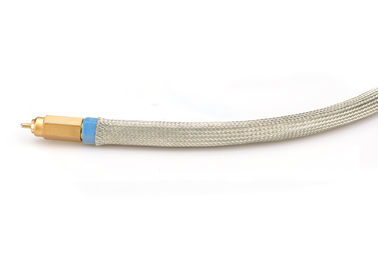

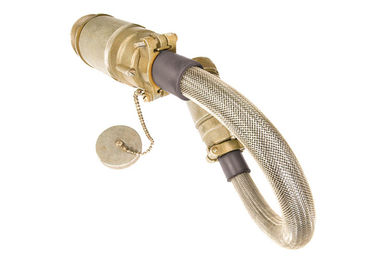

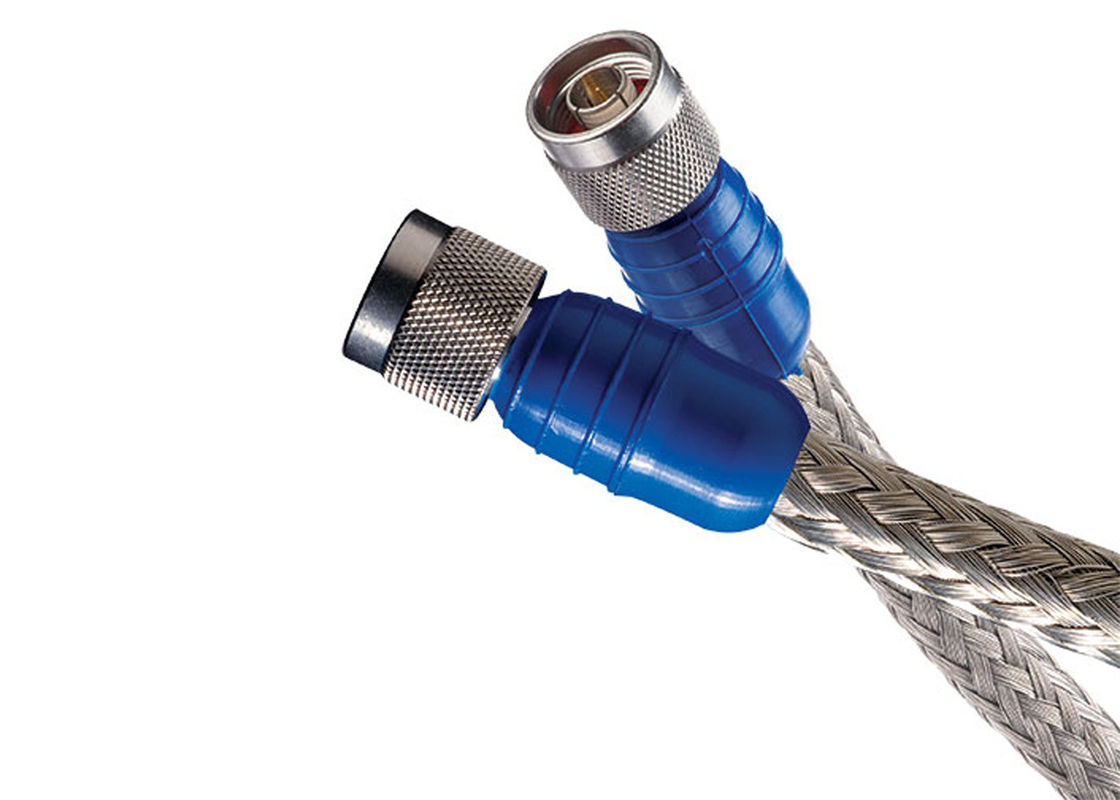

3/8" Tinned Copper Metal Braided Sleeving with Cable Connector For Protection
Description for Tinned Braided Sleeving:
(Previously known as Metal Braid) Our skill with braided sleeving extends to many materials including tinned copper for a variety of applications. Our tinned copper braid is perfect for shielding on harnesses and cables. Wire conforms to ASTM-B 33.
High end automotive, heavy equipment and industrial applications have always used braided metal for secure and efficient grounding solutions. Our braided tinned copper is a perfect combination of economy and durability, and will provide many years of use even in exposed applications.
When installed, Metal Braid provides full coverage and is great for covering and protecting hoses on hot rods and motorcycles.
Structure
Tinned copper braided expandable sleeving is braided with bundles of high quality oxygen-free copper wires. Except it has normal properties that pet expandable sleeve has (fire resistant, abrasive resistant), it also has excellent shielding property, flexible, expandable performance.
Usage
Tinned copper braided expandable sleeving is widely used in aerospace, high speed rail, metro, automobile industries.
Color: silver (other colors can be customized.)
Tinned Copper is available in Silver.
Nothing protects hoses from wear and blowout quite like real braided Stainless Steel expandable sleeving. It looks great in any application and is strong and durable. But, custom overbraided hoses are expensive, selections are often limited and production and delivery times can be an issue.
SDetailed data for tinned copper braided sleeves
| Nom. Size |
Product Part # |
Wall Thick. |
Expansion Range |
Standard Spool Put-Ups |
Lbs/ 100' |
||
| Min. | Max. | Bulk | Shop | ||||
| 1/2" 5/8" 3/4" 1" 1 1/4" 1 3/4" |
SSN0.50SV SSN0.63SV SSN0.75SV SSN1.00SV SSN1.25SV SSN1.75SV |
.025" .025" .025" .025" .035" .040" |
1/4" 3/8" 1/2" 3/4" 1" 1 1/2" |
5/8" 3/4" 1" 1 1/4" 1 1/2" 2 1/4" |
100' 100' 100' 100' 100' 100' |
25' 25' 25' 25' 25' 25' |
4 5 5 11 19 31 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .005 - .010 |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Shears |
| Colors | 1 |
| Wall Thickness | .013 - .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | |
| Abrasion Resistance | Medium |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | NA |
| CVCM | NA |
| WVR | NA |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | NA |
| Oxygen Index (ASTM D-2863) | NA |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected |
|
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Operating Temperatures | |
| Melt (ASTM D-2117) | 449°F/232°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
|
|
