PET Expandable Braided Sleeving
>

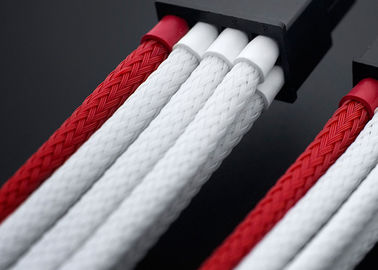

Plastic Braided Computer Cable Sleeves , Expandable Braided Cable Sleeving

Plastic Braided Computer Cable Sleeves , Expandable Braided Cable Sleeving

Brand Name: Huiyunhai
Model Number: HYH
MOQ: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Payment Terms: Western Union, T/T
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, REACH
Name:
Expandable Braided Sleeve
Print:
Multi Color
Diameter:
Available
Sample:
Stock
Delivery:
Help Deliver
Application:
Cable And Wire Protection
Supply Ability:
3 million meters per month
High Light:

expandable wire sleeving

,

braided wire loom

Product Description





Plastic PET Telescopic Expandable Braided Sleeve For Power Electric Wiring Protection





Description:


Our PET expandable sleeving is braided from 0.20MM or 0.25MM polyethylene terepthalate (PET) monofilament yarn. The sleeving easily expands up to 150% and gently constricts around irregular shapes. It remains flexible over a wide temperature range and is resistant to chemical degradation, UV radiation and abrasion.


Material: PET
Diameter: 4/6/8/10/12/15/20/25mm
Length: custom
Expanding Ratio: 150%
Color: Red&Black
Melting point: 230 °C ± 5
Tinting strength: 100 ± 5 °C
Fireproofing grade: UL94V-2
Temperature endurance: -50 °C~ +150 °C
Purpose: The power cord wire protection and tighten;



Features:





Color :  can be customized as needed



Size :  1MM--100MM



Parameters :  single silk, double silk, three or more silk braided wire


Excellent softness, easy bending, can loose to close, easy to operation, lead good scalability, elasticity and abrasion resistance.



Application :


Wrap wires, protect the wires from erosion and moisture. And beautify the wires.



Operating Temperatures
Minimum Continuous -94°F/-70°C
Maximum Continuous (MIL-I-23053) 257°F/125°C
Melt (ASTM D-2117) 482°F/250°C







Working Temperature: -50°C ~+150°C Melting Point: 250°C
Flammability: UL VW-1 Yarn Number: One Or Three
Diameter Of Single Yarn: 0.25mm Or 0.20mm Flat Width: 3-41m















Plastic Braided Computer Cable Sleeves , Expandable Braided Cable Sleeving 0
