| Brand Name: | Huiyunhai |
| Model Number: | HYH |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Standard export carton |
| Payment Terms: | T/T, Western Union |

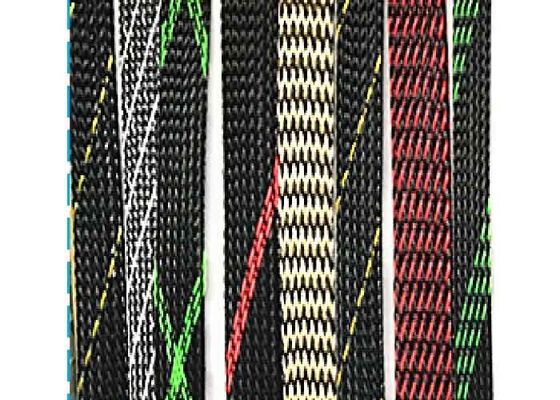

Durable Abrasion Resistance Cable Braided Sleeve For Wire Harness
Description for Cable Braided Sleeve For Wire Harness
Expandable braided sleeves is ideal for a limitless number of electronic, automotive, marine and industrial wire management and bundling applications. Examples include engine compartment dress up, home theater wire management, customizing computer case wiring, office wire management, automotive harnesses, scuba hose protection, and many more. Threads of different colors and textures could be braided into different patterns. Each of our products is tailored to the client's business and needs.

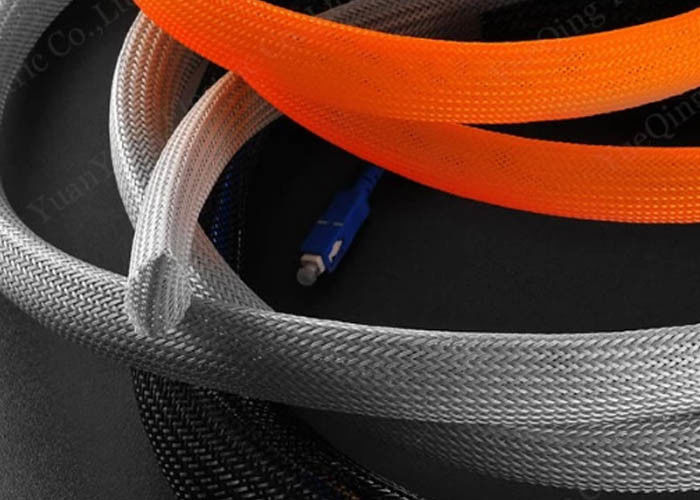

PET polyester expandable braided sleeving is flame-retardant and halogen-free. Braided sleeve offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
Totally expanded the sleeving can reach at least one point five times than the initial dimension.
PET expandable braided sleeve compiled by the Environmental Protection PET filament diameter monofilament 0.20mm or 0.25mm's made with good flexibility, flame resistance, abrasion resistance and heat resistance, network management can be easily expanded to the original 150% , and it is easy to tighten the various irregularly shaped objects, which can be maintained within a wide temperature range while maintaining a soft, can inhibit chemical corrosion, UV and friction, characterized by its unique mesh also has good ventilation, wire heat diffusion function in a timely manner.
Technical data of Cable Braided Sleeve For Wire Harness
1. Size: 3mm~ 100 mm
2. Operating range: -103F to 257F (-75C to 125C) temperature range
3. Melt Point:446F (230C)
4. Expands up to 150%
5. Available up to 4" in diameter
6. Colors:black, grey, white, red, green, blue, yellow, purple, pink, orange etc.
7. Certificate: SGS, UL, RoHS approved
8. Halogen free
Dimension Data of Cable Braided Sleeve For Wire Harness
| Nominal Size |
Product Part # |
Expansion Range | Spool Put-Ups | ||
| Min. | Max. | Bulk | Shop | ||
| 1/16" 1/8" 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2" 2 1/2" 3" |
CBS0.06 CBS0.13 CBS0.25 CBS0.38 CBS0.50 CBS0.63 CBS0.75 CBS1.00 CBS1.25 CBS1.50 CBS1.75 CBS2.00 CBS2.50 CBS3.00 |
3/64" 3/32" 1/8" 3/16" 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2 1/2" |
3/32" 1/4" 7/16" 1/2" 3/4" 1" 1 1/4" 1 5/8" 1 3/4" 2 1/8" 2 3/4" 3 1/2" 3 5/8" 4 3/4" |
1,000' 1,000' 1,000' 500' 500' 500' 250' 250' 250' 200' 200' 200' 200' 100' |
250' 225' 200' 125' 100' 100' 75' 65' 50' 40' 30' 50' 50' 50' |
| 3/4" | PTL0.75BK | 1/2" | 1 1/4" | 250' | 75' |
Detailed Description of Cable Braided Sleeve For Wire Harness
| Model Number | PET Expandable Braided Sleeving |
| Certification | UL ROHS |
| Place of Origin | Shenzhen of China |
| MOQ | 1000 meters |
| Price | Deliberate |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50000meters /day |
| Delivery Time | 5-7days |
| Packaging Details | Roll |
| Material | PET |
| Melting Point | 230C+5 |
| Temperature Range | -50C ~+150C |
| Fire Resistance Rating | VW-1 |
| Certificate | SGS, Reach And ROHS |
| Colors | Black/white/clrear/blue/pink/yellow/red/yellow |
|
|
