Green / Yellow Custom Nylon Cable Sleeve Good Flexibility Heavy Duty

Green / Yellow Custom Nylon Cable Sleeve Good Flexibility Heavy Duty

Green / Yellow Custom Nylon Cable Sleeve Good Flexibility Heavy Duty
Green / Yellow Custom Nylon Cable Sleeve Good Flexibility Heavy Duty
Green / Yellow Custom Nylon Cable Sleeve Good Flexibility Heavy Duty
Product Details:
Place of Origin: Shenzhen of China
Brand Name: Huiyunhai
Certification: UL, RoHS, REACH, SGS, ISO
Model Number: HYH-NS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard export carton
Payment Terms: T/T, Western Union
Supply Ability: 3 million meters per month
Contact Now
Detailed Product Description
Material: Nylon Size: Custom
Color: Black, White, Grey, Yellow, Blue, Etc. Usage: Wire And Cable Protection
Tensile Strength: High Strength Sample: Free
High Light:

nylon expandable braided sleeving

,

nylon braided cable wrap

,

tough abrasion resistant nylon cable sleeve

Grey Fray Resistant Nylon Braided Sleeve For HDMI Audio HDMI Cable Assembly





One of the greatest advantages sleeving has over other wire management solutions is its flexibility. When an application has to make tight turns, or snug up against existing structures, sleeving is the only workable solution. Properly installed, sleeving will not impair the flexibility of even large bundles of wires in any way, allowing it to be snaked along walls and around corners without kinking, creasing or cracking, and more importantly, without creating a dangerous tripping hazard.

Sleeving also allows individual wires to be accessed for breakouts anywhere along the length of the installation, making it much easier to create complex wire harnesses of virtually any length.

Compared to rigid products such as convoluted tubing, sleeving provides a much more flexible solution when turning managed bundles around tight corners or edges, resulting in a neater installation that doesn't present any tripping hazards.


Main characteristics and advantages:



1) Lasts longer than cable ties


2) Reduce harness weight

3) Easy access for breakouts

4) Obstraction-free cable grooming

5) Will not burn, melt or support combustion

6) Extreme abrasion resistance

7) Resistants common chemicals

8) Heavy duty and flexible

9) Superior flame, cut, and abrasion resistance

10) Super strength and abrasion resistance





Product benefits

1. Light weight&flexible
2. Tough abrasion resistant
3. Easy installation
4. Resist many chemicals

5. Abrasion Resistant and Flame redardant.
6. Totally expanded the sleeving can reach at least one point five times than the initial dimension.



Description:

Nylon PET expandable braided cable is sleeved by the ROHS polyester silk knitting .It has a good scalability, flame retardant, wear resistance and thermal insulation. Product surface are smooth, brightly-colored, great variety. Products are widely used in computer power cord, audio-video, automotive, aviation , wire and cable industries, It has protect and beautify the role. Others can be customized according to customer demands including a variety of colors,patterns and all kinds of UV fluorescence color.


Braided Sleeve Data:





Usage:Fiber Optic Cable Protection Sleeve Cable/wire Bundling & Protection Solution
FOR what Field: From small office/home office to high tech wire and cable harnesses.
SleeveMaterial 0.25mm Nylon Monofilament
Size 32mm flat width
Expandability 150%
Expanded Range 20mm~50mm
Packaging 100m/Spool,4 Spools/Ctn
Carton Size: 52*52*18cm or customized
Free Sample Available
Full Size Sample Lead time: As usual 3-7 working days
Production Lead time: 7-10 days







Item
Nylon expandable braided sleeve for cable wire harness
Material
Polyamide 6.6
Operating range
-60C to +160C
Melt point
256C +/- 10C
Flammability
VW-1
Certificate
ROHS
Standard color
Black and gray
Cutting tool
Hot knife

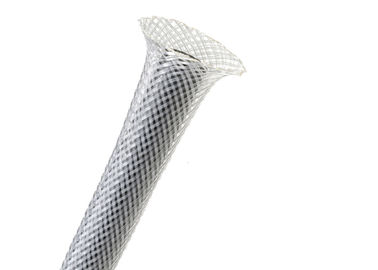

Green / Yellow Custom Nylon Cable Sleeve Good Flexibility Heavy Duty 0

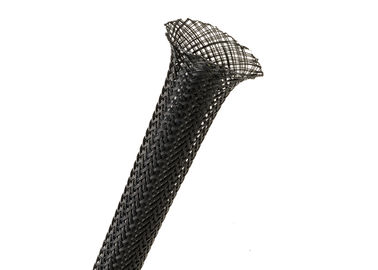

Green / Yellow Custom Nylon Cable Sleeve Good Flexibility Heavy Duty 1
