| Brand Name: | Huiyunhai |
| Model Number: | HYH-STS |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export carton |
| Payment Terms: | T/T, Western Union |

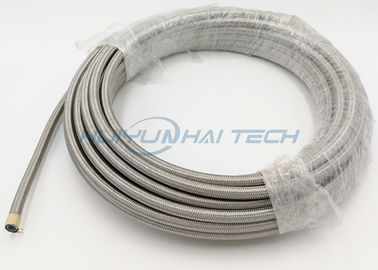

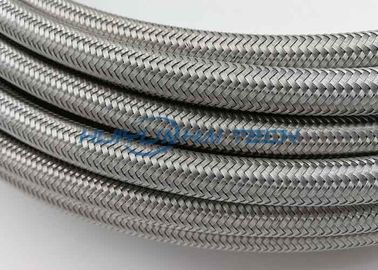

High Pressure 304 Stainless Steel Braided Sleeving For Metal Braided Hose
High physical strength with light weight and a long usage life.
1. high tensile resistant, strong vandalism resistant and strong corrosion resistant etc.
2. Reasonable construction, stable performance and superior electrical performance
3. can be installed directly, do not need preset tube or wire
4. Superior flexibility, smooth, easy for installation and position.
5. Good corrosion characteristics, resistance to high temperature, moisture, abrasion and penetration.
6. Good flexibility, absorb effectively vibration, noise, thermal expansion and contraction from pipeline system.
TYPE EMI, RFI, ESD Protection Material Stainless steel 304 Application
7. EMI, RFI, ESD protection
8. Grounding straps
9. Engine dress-up
10. Military applications
11. Extreme blowout protection
12. Expands for easy installation
Description:
Stainless Steel braided Sleeve is used as flexible jointing wire of electric appliance, switch appliance electric stove and storage battery etc. such as Cable, CRT Assembly Wire, Television, Computer Monitor, ETC signal pickup instruments. Braided copper wire can be provided rolled flat or in tubular form. Flat braids are generally used for flexible connections, electrical leads and grounding straps. The tubular braids are basically used as shielding.
Steel flexible stranded wire is made of super-quality round copper wire or tinning round copper wire , This product has passed tenacity processing, so the complete - product is soft and its outline is beautiful.
Stainless steel 304 metal braided sleeving is a high temperature, heat and flame resistant thermal insulating sleeve that will stand 900°C continuous exposure. The base high temperature braided fiberglass sleeve is fabricated from high quality type E fiberglass that will not burn. The sleeve is then coated with a vermiculite dispersant adds abrasion resistance and anti-fray properties
Composition:
1. Stainless/Tinned Copper Braid Sleeve
Size: 1MM-100MM
Parameters: commonly used wire diameter 0.05MM-0.15MM woven wire
Sizes
| Nom. Size |
Product Part # |
Wall Thick. |
Expansion Range |
Standard Spool Put-Ups |
||
| Min. | Max. | Bulk | Shop | |||
| 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" |
SSL0.06SV SSL0.13SV SSL0.25SV SSL0.38SV SSL0.50SV SSL0.75SV SSL1.00SV SSL1.25SV SSL1.50SV |
.013" .013" .013" .013" .013" .013" .025" .025" .025" |
- 1/16" 3/16" 1/4" 3/8" 1/2" 5/8" 3/4" 1" |
- 11/32" 13/32" 5/8" 3/4" 1 1/4" 1 5/16" 1 3/4" 2 1/8" |
250' 250' 250' 250' 100' 100' 100' 100' 100' |
100' 100' 100' 100' 50' 50' 50' 50' 50' |
| Product Name | Stainless Steel Braid Sleeving, SUS304 |
| Size | DN8-400 |
| Material | stainless steel |
| Grade | SUS304, SUS316, SUS316L |
| Braid | SUS304 |
|
|
