Colorful Heat Resistant Wire Sleeve Anti - Abrasion With Polyester Material

Colorful Heat Resistant Wire Sleeve Anti - Abrasion With Polyester Material

Brand Name: Huiyunhai
Model Number: HYH- C
MOQ: Negotiable
Price: Negotiable
Packaging Details: standard export carton
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, REACH, SGS, ISO
Product Name:
No Fray Clean Cut Sleeving
Diameter:
Custom
Color:
Colorful
Advantage:
Abrasive Resistance
Melt Point:
250°C±5°C
Feature:
Cable Harness
Supply Ability:
3 million meters per month
High Light:

heat resistant braided sleeving

,

heat resistant cable sleeve

Product Description





Polyester No Fray Clean Cut Sleeving For Braided Cable Protection



Clean cut sleeving can be cut with a common scissors without obvious fray. It has some more advantages than standard polyester sleeving , softer and easier to be used on the outdoor field where the power or a hot knife could not be available. It also provides the same excellent protection of anti-abrasion as standard polyester sleeving.





Application:



Outdoor field if the hot knife is not available, for example when installing telecom equipment installation in mountain areas.



Technical data:



Material: Polyester

Working temperature: -50℃~+150℃

Melting point: 240±10℃

Flammability: VW-1

Color: Black and grey

Cutting tool: Scissors

Approval:UL, RoHS



Part 1--Advantage:



1. Can be cut by scissor and not fray
2.. Light Weight & Flexible
3. Abrasion Resistant
4. Flame retardant
5. perfect for field



Part 2--Introduce



1.  Flame-retardant and halogen-free.

2. Can be cut with a common scissors without obvisous fray.

3. Softer and easier to be use on the outdoor field .

4.  It offers durable abrasion resistance in a wide range of industrial applications.

5.  The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

6.  Totally expanded the sleeving can reach at least one point five times than the initial dimension.



Dimensions:



Nominal size (W) Part No. Expandable Rang Packing (L)
Inch mm Min.(I) mm Max.(O)mm Standard spool(m)
1/8" 3 CC-003 1 5 500
1/4" 6 CC-006 3 8 500
5/16" 8 CC-008 5 10 350
3/8" 10 CC-010 7 12 350
1/2" 12 CC-012 8 14 300
5/8" 16 CC-016 10 18 250
3/4" 19 CC-019 14 23 200
1" 25 CC-025 18 28 200







Product name HYH TECH Material Polyester
Color Customized Application Automatic
Working temperature -50℃~+150℃ Certification UL , ROHS, REACH
Melting point 240±10℃ Flammability VW-1
Size 3-76mm Packing 100-1000m/spool
Port Shenzhen MOQ 1000 M
Sample free Price 0.08USD/M
Cutting tool clean knife Other Customized

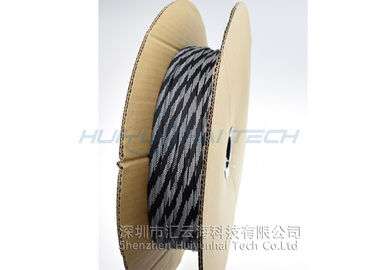

Colorful Heat Resistant Wire Sleeve Anti - Abrasion With Polyester Material 0

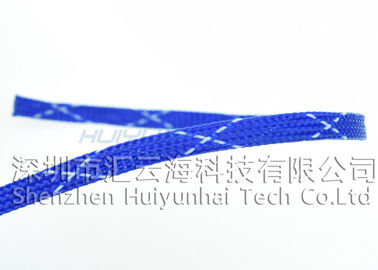

Colorful Heat Resistant Wire Sleeve Anti - Abrasion With Polyester Material 1
