| Brand Name: | Huiyunhai |
| Model Number: | HYH |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Standard export carton |

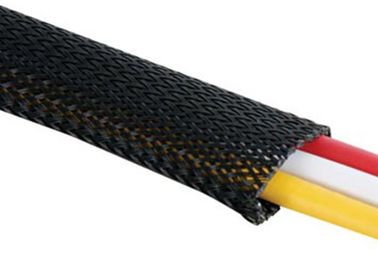

UL94V-0 Polyester High Flame - retardant Expandable Electical Braided Sleeving For Cable Management
expandable sleeving
Huiyunhai Polyester high flame-retardant expandable sleeving is manufactured from modified polyester monofilament which is in compliance with UL94V-0 requirement not only provide excellent flame retardant properties, but also has durable abrasion resistance.
Application :
It is widely used to cover the wires, cables, wire harnesses, pipes and industrial hoses where the additional protection and high flame retardant are required.
Technical data:
Material: Polyester Monofilament
Operating range:-50°C ~ +150°C
Melt point: 240±10°C
Flammability: UL94V-0
Standard colours: Black and grey
Certificate: UL, RoHS, REACH, Halogen Free
Cutting tool: Hot knife
Dimensions:
| Part No. | Nominal size (W) | Expandable Range | Packing (L) | ||
| Inch | mm | Min.(I) mm |
Max.(O) mm |

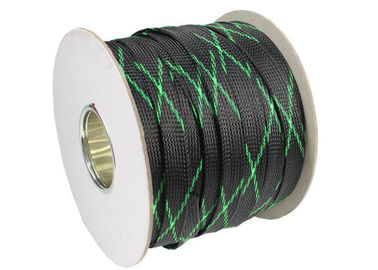

Standard spool (m) | |
| HYH-003 | 1/8'' | 3 | 1 | 6 | 1000 |
| HYH--006 | 1/4'' | 6 | 3 | 9 | 500 |
| HYH--008 | 5/16'' | 8 | 5 | 12 | 350 |
| HYH--010 | 3/8'' | 10 | 7 | 17 | 350 |
| HYH--012 | 1/2'' | 12 | 8 | 20 | 350 |
| HYH--016 | 5/8'' | 16 | 10 | 27 | 250 |
| HYH--019 | 3/4" | 19 | 14 | 30 | 200 |
| HYH--025 | 1" | 25 | 18 | 33 | 200 |
| HYH--032 | 1-1/4" | 32 | 20 | 50 | 150 |
| HYH--038 | 1-1/2" | 38 | 30 | 60 | 100 |
| HYH--045 | 1-3/4" | 45 | 35 | 75 | 100 |
| HYH--050 | 2" | 50 | 40 | 80 | 100 |
| HYH--064 | 2-1/2" | 64 | 45 | 105 | 100 |
| HYH--076 | 3" | 76 | 64 | 120 | 100 |
Notes:
1. Nominal size indicates the flat width.
2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
4. Special packing, sizes, and colors can be supplied upon request.
5. All numerical data are average or typical values, not including customized sizes.
|
|
