High Flame Proof Electrical Braided Sleeving For Automotive Cable Protecting

High Flame Proof Electrical Braided Sleeving For Automotive Cable Protecting

Brand Name: Huiyunhai
Model Number: HYH
MOQ: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, REACH
Name:
Automobile Electrical Braided Sleeving
Standard Color:
Black,grey
Function:
Automotive Cable Protecting
Flammability:
UL94V-2
Size:
Custom
Material:
Pet,nylon
High Light:

braided electrical sleeving

,

high temperature braided sleeving

Product Description

High Flame Proof Polyester Flexible Electrical Braided Sleeving For Cables Protection





Application of braided sleeve



It’s used to cover cables, wire harnesses, tubes, industrial hoses where is required an additional protection.



Technical data:

Material: Polyester

Working temperature: -50℃~+150℃

Melting point: 240±10℃

Flammability: VW-1

Color: Black and grey

Cutting tool: Hot Knife

Approval: UL , ROHS, REACH, Halogen Free





Description of electrical braided sleeve





Huiyunhai polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
Totally expanded the sleeving can reach at least 1.5 times than the initial dimension.



Huiyunhai nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight , highly flexible and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft, slick surface resisting snags when dragged over rough surface.



Nominal Size (W) Part No. Expanded Range Packing (L)
Inch mm   Min.(I) Max.(O) Standard spool Shop spool
1/8" 3 HYH-003 1 6 500 m 100 m
1/4" 6 HYH-006 3 9 500 m 100 m
5/16" 8 HYH-008 5 16 350 m 100 m
3/8" 10 HYH-010 7 19 350 m 100 m
1/2" 12 HYH-012 8 24 300 m 100 m
5/8" 15 HYH-016 10 27 250 m 100 m





3/4" 20 HYH-019 14 30 200 m 100 m
1" 25 HYH-025 18 35 200 m 100 m
1 1/4" 30 HYH-032 20 50 150 m 100 m
1 1/2" 40 HYH-038 30 60 100 m 100 m
1 3/4" 45 HYH-045 35 75 100 m 100 m
2" 50 HYH-050 40 80 100 m 100 m
2 1/2" 64 HYH-064 45 105 100 m 100 m
3" 76 HYH-076 64 120 100 m 100 m

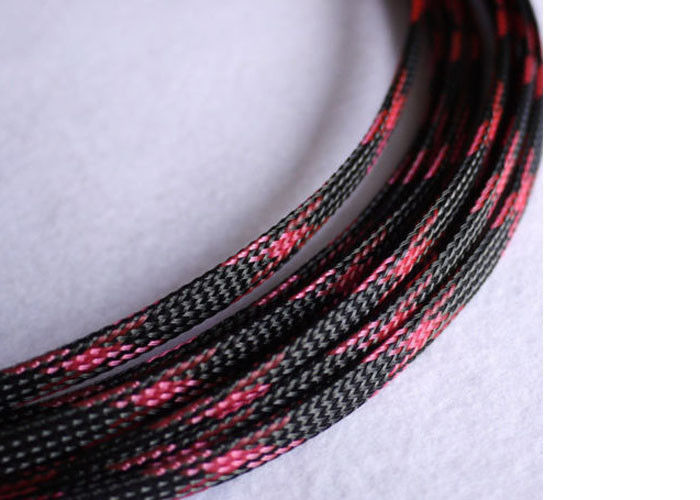

High Flame Proof Electrical Braided Sleeving For Automotive Cable Protecting 0

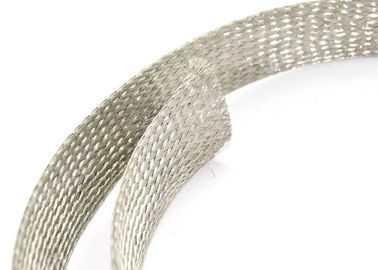

High Flame Proof Electrical Braided Sleeving For Automotive Cable Protecting 1

















Good price  online

Products Details

Home > Products >
Electrical Braided Sleeving
>
High Flame Proof Electrical Braided Sleeving For Automotive Cable Protecting

High Flame Proof Electrical Braided Sleeving For Automotive Cable Protecting

Brand Name: Huiyunhai
Model Number: HYH
MOQ: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Detail Information
Place of Origin:
Shenzhen of China
Brand Name:
Huiyunhai
Certification:
UL, RoHS, REACH
Model Number:
HYH
Name:
Automobile Electrical Braided Sleeving
Standard Color:
Black,grey
Function:
Automotive Cable Protecting
Flammability:
UL94V-2
Size:
Custom
Material:
Pet,nylon
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Packaging Details:
Standard export carton
High Light:

braided electrical sleeving

,

high temperature braided sleeving

Product Description

High Flame Proof Polyester Flexible Electrical Braided Sleeving For Cables Protection





Application of braided sleeve



It’s used to cover cables, wire harnesses, tubes, industrial hoses where is required an additional protection.



Technical data:

Material: Polyester

Working temperature: -50℃~+150℃

Melting point: 240±10℃

Flammability: VW-1

Color: Black and grey

Cutting tool: Hot Knife

Approval: UL , ROHS, REACH, Halogen Free





Description of electrical braided sleeve





Huiyunhai polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
Totally expanded the sleeving can reach at least 1.5 times than the initial dimension.



Huiyunhai nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight , highly flexible and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft, slick surface resisting snags when dragged over rough surface.



Nominal Size (W) Part No. Expanded Range Packing (L)
Inch mm   Min.(I) Max.(O) Standard spool Shop spool
1/8" 3 HYH-003 1 6 500 m 100 m
1/4" 6 HYH-006 3 9 500 m 100 m
5/16" 8 HYH-008 5 16 350 m 100 m
3/8" 10 HYH-010 7 19 350 m 100 m
1/2" 12 HYH-012 8 24 300 m 100 m
5/8" 15 HYH-016 10 27 250 m 100 m





3/4" 20 HYH-019 14 30 200 m 100 m
1" 25 HYH-025 18 35 200 m 100 m
1 1/4" 30 HYH-032 20 50 150 m 100 m
1 1/2" 40 HYH-038 30 60 100 m 100 m
1 3/4" 45 HYH-045 35 75 100 m 100 m
2" 50 HYH-050 40 80 100 m 100 m
2 1/2" 64 HYH-064 45 105 100 m 100 m
3" 76 HYH-076 64 120 100 m 100 m

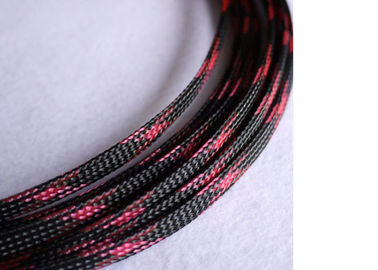

High Flame Proof Electrical Braided Sleeving For Automotive Cable Protecting 0
