PET Expandable Braided Sleeving
>
Wire Shielding PET Expandable Braided Sleeving For Cable Protection

Wire Shielding PET Expandable Braided Sleeving For Cable Protection

Brand Name: Huiyunhai
Model Number: HYH
MOQ: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, REACH
Name:
Pet Expandable Braided Sleeve
Standard Color:
Black,grey,white,red,colorful
Function:
Wire Cable Protection
Flammability:
UL94V-2
Size:
Custom
Material:
Pet,nylon
High Light:

expandable wire sleeving

,

braided wire loom

Product Description

Wire shielding PET Expandable Braided sleeving, PET shielding sleeves for Cable Protection





Usage of pet expandable braided sleeving



Expandable sleeving is widely used in bounding and protecting of electrical cables, automobile and aviation sectors.



PET cable sleeving, braided expandable sleeve is braided by environment-friendly polyester monofil. (PET(polyester) It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns. The open weave constrcture allows an easy installation on a bundle of hoses and cables,even if some with bulky or large connectors.



Product Feature:



1. PET expandable sleeving is flame-retardant and halogen-free.

2. It offers durable abrasion resistance in a wide range of industrial applications.

3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

4. Totally expanded the sleeving can reach at least one point five times than the initial dimension

Description of electrical braided sleeve





Huiyunhai polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
Totally expanded the sleeving can reach at least 1.5 times than the initial dimension.



Huiyunhai nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight , highly flexible and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft, slick surface resisting snags when dragged over rough surface.



Nominal Size (W) Part No. Expanded Range Packing (L)
Inch mm   Min.(I) Max.(O) Standard spool Shop spool
1/8" 3 HYH-003 1 6 500 m 100 m
1/4" 6 HYH-006 3 9 500 m 100 m
5/16" 8 HYH-008 5 16 350 m 100 m
3/8" 10 HYH-010 7 19 350 m 100 m
1/2" 12 HYH-012 8 24 300 m 100 m
5/8" 15 HYH-016 10 27 250 m 100 m





3/4" 20 HYH-019 14 30 200 m 100 m
1" 25 HYH-025 18 35 200 m 100 m
1 1/4" 30 HYH-032 20 50 150 m 100 m
1 1/2" 40 HYH-038 30 60 100 m 100 m
1 3/4" 45 HYH-045 35 75 100 m 100 m
2" 50 HYH-050 40 80 100 m 100 m
2 1/2" 64 HYH-064 45 105 100 m 100 m
3" 76 HYH-076 64 120 100 m 100 m

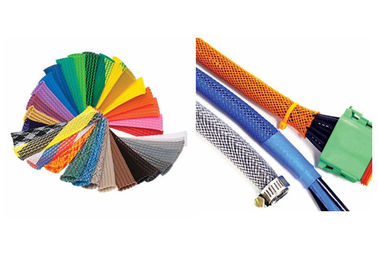

Wire Shielding PET Expandable Braided Sleeving For Cable Protection 0

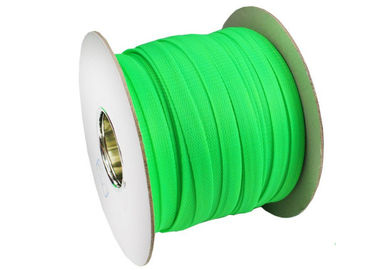

Wire Shielding PET Expandable Braided Sleeving For Cable Protection 1
