|Place of Origin:||Shenzhen of China|
|Certification:||UL, RoHS, REACH|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Standard export carton|
|Name:||Pet Expandable Braided Sleeving||Material:||Pet|
|Temperature:||-50 ℃~+125 ℃||Feature:||Expandable|
|Function:||Cable Protection||Lead Time:||5 Days|
expandable wire sleeving,
braided wire loom,
REACH pet expandable braided sleeve

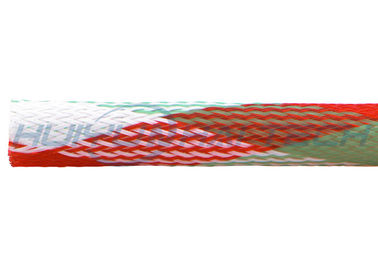

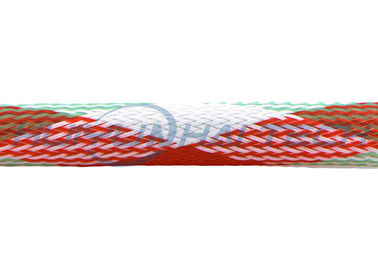

Anti- Abrasive Polyester Monofilament Pet Expandable Braided Sleeving For Cable Protection
Model : braided sleeve
Working temperature: -50ºC ~ +150ºC
Melting point: 250ºC±5 Flame resistant grade: UL VW-1
Expandable sleeving is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.
1. Description of pet expandable braided sleeve
Pet expandable braided sleeve compiled by the Environmental Protection PET filament diameter monofilament 0.20mm or 0.25mm's made with good flexibility, flame resistance, abrasion resistance and heat resistance, network management can be easily expanded to the original 150% , and it is easy to tighten the various irregularly shaped objects, which can be maintained within a wide temperature range while maintaining a soft, can inhibit chemical corrosion, UV and friction, characterized by its unique mesh also has good ventilation, wire heat diffusion function in a timely manner.
1). Flexibility, fire resistance, abrasive resistance and thermal insulation performance ;
2). The sleeving owns smooth surface, bright color, various patterns ;
3). Working temperature: -50℃~150℃
4). Melting point: 250℃±5
5). Flame resistant grade:UL VW-1
6). Standard color: Black color
Feature of pet expandable braided sleeving
1. Strong corrosion resistance,excellent flexibility, easy bending, simplify operation, good scalability, resilience and abrasion resistance.
2. Application:Products are widely used in computer power cord, audio-video, automotive, aviation, wire and cable industries. It has protect and beautify the role. Its unique mesh characteristics but also has good ventilation, and a thermal diffusion function in a timely manner.
Huiyunhai polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
Totally expanded the sleeving can reach at least 1.5 times than the initial dimension.
Huiyunhai nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight , highly flexible and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft, slick surface resisting snags when dragged over rough surface.
Specification for braided sleeves
