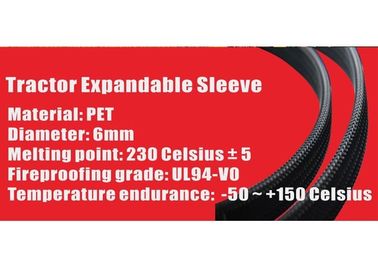

Insulation Black Automotive Braided Sleeving For Electrical Wire Harness Protection

Insulation Black Automotive Braided Sleeving For Electrical Wire Harness Protection

  • Insulation Black Automotive Braided Sleeving For Electrical Wire Harness Protection
  • Insulation Black Automotive Braided Sleeving For Electrical Wire Harness Protection
Insulation Black Automotive Braided Sleeving For Electrical Wire Harness Protection
Product Details:
Place of Origin: Shenzhen of China
Brand Name: Huiyunhai
Certification: UL, RoHS, REACH
Model Number: HYH
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Contact Now
Detailed Product Description
Name: Automobile Electrical Braided Sleeving Usage: Durable Abrasion Resistance
Function: Automobile Wires Protection Feature 1: Flexible
Feature 2: Insulation Material: Pet
High Light:

braided electrical sleeving

,

high temperature braided sleeving

Insulation Black Automotive Braided Sleeving For Electrical Wire Harness Protection





Product Description


PET polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.


1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.



Application of braided sleeving


It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.


Technical data:


1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey. Other colors upon request.
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife



PET Expandable Tube is braided from polyethylene terepthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.



Dimensions:



Width Expandable range Packing
(m/roll)
Inch mm Min. Max.
1/8 3 1 6 500
1/4 6 3 9 500
5/16 8 5 16 400
3/8 10 7 19 400
1/2 12 8 24 300
5/8 15 10 27 300
3/4 20 14 30 250
1 25 18 35 200
1 1/4 30 20 50 150
1 1/2 40 30 60 100
1 3/4 45 35 75 100
2 50 40 80 100
2 1/2 64 45 105 100
3 76 64 120 100




Notes:



1.  Nominal size indicates the flat width.

2.  The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3.  This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4.  Special packing, sizes, and colors can be supplied upon request.

5.  All numerical data are average or typical values, not including customized sizes.
