|Place of Origin:||Shenzhen of China|
|Certification:||UL, RoHS, REACH|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Standard export carton|
|Name:||Automobile Electrical Braided Sleeving||Usage:||Durable Abrasion Resistance|
|Function:||Thermal Insulation Performance||Feature 1:||Flame Retardant|
|Feature 2:||High Abrasion Resistance||Material:||Pet|
braided electrical sleeving,
high temperature braided sleeving
UV and Fire Resistance Pet Expandable Electrical Braided Sleeving For Cable Protection
Braided Sleeving Technical data:
1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey. Other colors upon request.
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife

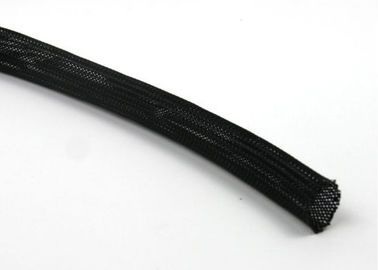

PET Expandable Tube is braided from polyethylene terepthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.
PET Expandable Sleeving used to Cover Cables for Protecting the Cables are selling all over the world now!!!
a. Protecting cover cables, wire harnesses, tubes etc.
b. used in bounding and protecting of electrical cables, automobile and aviation sectors.
a. Offering durable abrasion resistance in a wide range of industrial applications.
b. Offering kink resistance with good strength and flexibility.
PET polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Application of braided sleeving:
It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.
1. Nominal size indicates the flat width.
2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
4. Special packing, sizes, and colors can be supplied upon request.
5. All numerical data are average or typical values, not including customized sizes.
