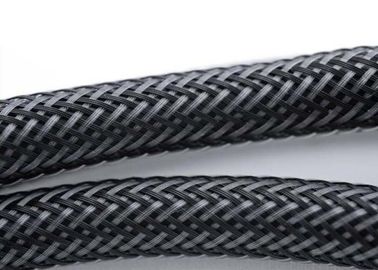

High - Density Braided Cable Sleeving UL RoHS Standard For Automatic Equipment

High - Density Braided Cable Sleeving UL RoHS Standard For Automatic Equipment

Brand Name: Huiyunhai
Model Number: HYH
MOQ: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, REACH
Name:
Electrical Braided Sleeving
Lead Time:
5 Days
Function:
Cable Protection
Feature 1:
Wear Resistant
Feature 2:
Fire- Retardant
Material:
Pet
Supply Ability:
500,000 meters per month
High Light:

braided electrical sleeving

,

high temperature braided sleeving

Product Description

UL RoHS Standard Electrical Braided Sleeving For Cable Wire Harness Protection



UL Standard cable wire harness sleeves

Feature of braided sleeving
High-density and abrasion-resistant

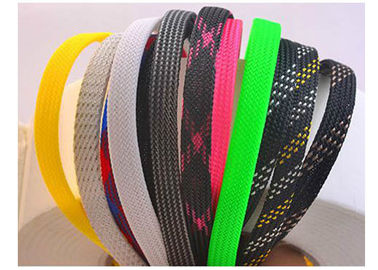

Various colors, sizes and length can be customized
Material: PET
Flammability: UL94V-0
With UL, SGS, REACH, RoHS marks

Advantage:
Commonly used in high-temperature environment
It has high-abrasion resistance, chemical resistance, high-temperature stability, low-moisture absorption, excellent dimensional stability.



Braided sleeving has smooth surface, bright color and various patterns. It is an ideal product for line management and bundle application of electronics, automobiles, airplanes, ships, industry and home. For example, DVI wire mesh sets, HDMI wire net sets, motor vehicle engine line dressing, home theater wire management, computer chassis wire layout, office line management, car wiring harness, water tube protection and so on.



Uses: protection, tightening and beautification of various wires;



Features: excellent softness, easy to bend, loose and tight, easy to lead operation, good flexibility, elasticity and wear resistance, can be expanded to 200%, that is, 20mm wide;

Recommended use: It is recommended to use a wire outer diameter range of 10-12mm, suitable for SATA data lines, etc.;

Note: Snake skin net will be shortened at the same time of expansion, please reserve enough length, it is recommended to use with Φ12-Φ14 heat shrinkable tube;

Product Overview: This product is made of environmentally friendly PET wire. It is widely used in the protection of automobile wiring, cable, light, sound, wire and other beam protection. It has strong anti-corrosion, wear resistance, flexibility, expandability, etc. Performance, its unique mesh features also have good ventilation and instant diffusion wire heat function, can be customized according to customer requirements, weaving into different sizes, different colors and different patterns with monofilament or multifilament.



This product is made of environmentally friendly pet wire. It is widely used in the protection of automobile wiring, cable, light, sound, wire and other beam protection. It has strong anti-corrosion, wear resistance, flexibility, expandability, etc. Performance, its unique sleeve features also have good ventilation and instant diffusion wire heat function, can be customized according to customer requirements, weaving into different sizes, different colors and different patterns with monofilament or multifilament.

Material: environmentally friendly non-toxic pet material

Uses: wire protection and tightening and aesthetics.



Colour: Black;

Packing: whole roll;

Temperature: –60 ° C ~ +155 ° C;

Melting point: 230 ° C ± 5 ° C;

Material: polyethylene terephthalate (English: Polyethylene terephthalate, referred to as PET);

Uses: protection, tightening and beautification of various wires;

Features: softness, easy to bend, loose and tight, easy to wire operation, good flexibility, elasticity and wear resistance;

Note: Snake skin will be shortened while expanding, please reserve enough length;





Feactures of Braided Sleeves



The braided sleeve is made of environmentally-friendly PET silk, which has good flexibility, flame retardancy, wear resistance and heat insulation. The product has a smooth surface, bright color and a variety of patterns. Products are widely used in computer power lines, audio and video lines, automotive, aviation, wire and cable industries, to protect and beautify.


1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.



Application of braided sleeving


It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.


Technical data:


1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey. Other colors upon request.
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife



PET Expandable Tube is braided from polyethylene terepthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.



Dimensions:



High - Density Braided Cable Sleeving UL RoHS Standard For Automatic Equipment 0




Notes:



1.  Nominal size indicates the flat width.

2.  The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3.  This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4.  Special packing, sizes, and colors can be supplied upon request.

5.  All numerical data are average or typical values, not including customized sizes.







High - Density Braided Cable Sleeving UL RoHS Standard For Automatic Equipment 1





















High - Density Braided Cable Sleeving UL RoHS Standard For Automatic Equipment 2
