|Place of Origin:||Shenzhen of China|
|Certification:||UL, RoHS, REACH|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Standard export carton|
|Supply Ability:||500,000 meters per month|
|Features:||Softness, Easy To Bend||Name:||Pet Braided Sleeving|
|Temperature:||-40 °C ~ +150 °C||Application:||Cable Management|
expandable braided cable sleeving,
expandable wire sleeving

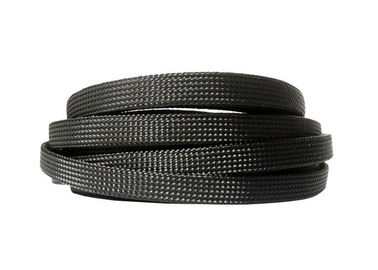

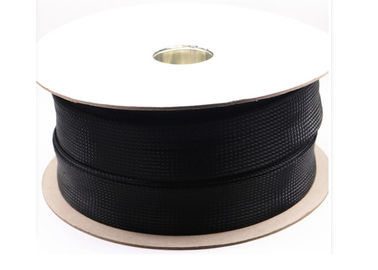

Abrasion Resistant PET Expandable Braided Sleeving For Cable Management
This braided sleeving is made of environmentally friendly pet wire. It is widely used in the protection of automobile wiring, cable, light, sound, wire and other beam protection. It has strong anti-corrosion, wear resistance, flexibility, expandability, etc. Performance, its unique sleeve features also have good ventilation and instant diffusion wire heat function, can be customized according to customer requirements, weaving into different sizes, different colors and different patterns with monofilament or multifilament.
1. Operating temperature: -50°C~150°C
2. Melting point: 250±5°C.
3. Flammability: UL VW-1
4. Standard color: White, Black, Gray,Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern
5. Cutting tool: Hot knife
6. Certificate: RoHS ,MSDS,Halogen Free
1. Automobile wires protection
2. Structured cabling system
3. A/V cables & HDMI cables
4. Industrial hoses & tubes protection
The role of environmentally friendly braided sleeve is as follows:
1 flame retardant: VW-1;
2 water absorption rate: ≤0.5%;
3 Temperature: –50~+150°C;
4 Certification: UL, RoHS, REACH 138 items
5 Material: high quality environmentally friendly PET yarn, polyester yarn, etc.
6 Cutting tools: electric scissors, electric iron, scissors + lighter, professional cutting machine and other tools
7 Features: Excellent softness, easy to bend, loose and tight, easy to wire operation, good stretchability, elasticity and wear resistance.
The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.
The environmentally friendly braided sleeve is mainly used in computer power cords, audio video cables, automobiles, aviation, wire and cable industries, etc. It plays a protective and beautifying role and has certain shielding performance. It is most suitable for the audio medical industry, economical and easy to organize. At the same time, it has very good wear and corrosion resistance, suitable for wire harness protection, wear, corrosion, decoration and storage in various mechanical and electronic industries.
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Structure of pet braided sleeving
Expandable sleeving is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.
1. Description of pet expandable braided sleeve
Pet expandable braided sleeve compiled by the Environmental Protection PET filament diameter monofilament 0.20mm or 0.25mm's made with good flexibility, flame resistance, abrasion resistance and heat resistance, network management can be easily expanded to the original 150% , and it is easy to tighten the various irregularly shaped objects, which can be maintained within a wide temperature range while maintaining a soft, can inhibit chemical corrosion, UV and friction, characterized by its unique mesh also has good ventilation, wire heat diffusion function in a timely manner.
1). Flexibility, fire resistance, abrasive resistance and thermal insulation performance ;
2). The sleeving owns smooth surface, bright color, various patterns ;
3). Working temperature: -50℃~150℃
4). Melting point: 250℃±5
5). Flame resistant grade:UL VW-1
6). Standard color: Black color
Products are widely used in computer power cord, audio-video, automotive, aviation, wire and cable industries. It has protect and beautify the role. Its unique mesh characteristics but also has good ventilation, and a thermal diffusion function in a timely manner.
Huiyunhai polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
Totally expanded the sleeving can reach at least 1.5 times than the initial dimension.
Huiyunhai nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight , highly flexible and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft, slick surface resisting snags when dragged over rough surface.
Specification for braided sleeves
