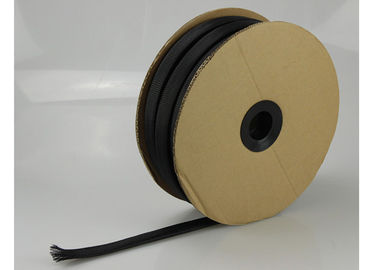

30mm PET Expandable Sleeving Halogen Free For Cable Wire Harness Protection

30mm PET Expandable Sleeving Halogen Free For Cable Wire Harness Protection

  • 30mm PET Expandable Sleeving Halogen Free For Cable Wire Harness Protection
  • 30mm PET Expandable Sleeving Halogen Free For Cable Wire Harness Protection
30mm PET Expandable Sleeving Halogen Free For Cable Wire Harness Protection
Product Details:
Place of Origin: Shenzhen of China
Brand Name: Huiyunhai
Certification: UL, RoHS, REACH
Model Number: HYH
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Supply Ability: 500,000 meters per month
Contact Now
Detailed Product Description
Name: Pet Braided Sleeving Material: Pet
Logo: Custom Feature: Cable Protection
Function: Wire Harness Sample: Free
High Light:

expandable wire sleeving

,

braided wire loom

30mm Pet Expandable Braided Sleeve For Cable Wire Harness Protection Halogen Free



Main Properties:



1.  Operating temperature: -50°C~150°C



2.  Melting point: 250±5°C.



3. Flammability: UL VW-1

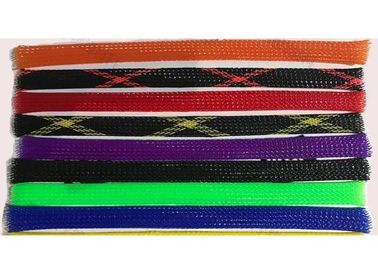

4. Standard color: White, Black, Gray,Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern



5. Cutting tool: Hot knife


6.  Certificate: RoHS ,MSDS,Halogen Free



Description of pet expandable braided sleeve



Pet expandable braided sleeve compiled by the Environmental Protection PET filament diameter monofilament 0.20mm or 0.25mm's made with good flexibility, flame resistance, abrasion resistance and heat resistance, network management can be easily expanded to the original 150% , and it is easy to tighten the various irregularly shaped objects, which can be maintained within a wide temperature range while maintaining a soft, can inhibit chemical corrosion, UV and friction, characterized by its unique mesh also has good ventilation, wire heat diffusion function in a timely manner.





Application:



Products are widely used in computer power cord, audio-video, automotive, aviation, wire and cable industries. It has protect and beautify the role. Its unique mesh characteristics but also has good ventilation, and a thermal diffusion function in a timely manner.



The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.

The environmentally friendly braided sleeve is mainly used in computer power cords, audio video cables, automobiles, aviation, wire and cable industries, etc. It plays a protective and beautifying role and has certain shielding performance. It is most suitable for the audio medical industry, economical and easy to organize. At the same time, it has very good wear and corrosion resistance, suitable for wire harness protection, wear, corrosion, decoration and storage in various mechanical and electronic industries.



Product feacture:


1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.




Structure of pet braided sleeving


Expandable sleeving is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.





Advantages:

PET expandable sleeving in expanding at the same time can be shorten, about 30%, please reserve enough length.

Huiyunhai polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
Totally expanded the sleeving can reach at least 1.5 times than the initial dimension.



Huiyunhai nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight , highly flexible and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft, slick surface resisting snags when dragged over rough surface.





Specification for braided sleeves





30mm PET Expandable Sleeving Halogen Free For Cable Wire Harness Protection 0





















30mm PET Expandable Sleeving Halogen Free For Cable Wire Harness Protection 1

































30mm PET Expandable Sleeving Halogen Free For Cable Wire Harness Protection 2
