Self Wrapping Split Braided Sleeving
>
Automotive Cable Harness Self Closing Braided Wrap Multifilament PET Material

Automotive Cable Harness Self Closing Braided Wrap Multifilament PET Material

Brand Name: Huiyunhai
Model Number: HYH-V
MOQ: Negotiable
Price: Negotiable
Packaging Details: standard export carton
Payment Terms: T/T
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, REACH, SGS, ISO
Material:
PET
Size:
Custom
Sample:
Available
Making Time:
5 Days
Feature:
Cable Wires Protection
Certificates:
UL CSA ROHS REACH
Supply Ability:
3 million meters per month
High Light:

self wrapping braided sleeving

,

split braided wire loom

Product Description

Multifilament PET Self Wrapping Split Braided Sleeving For Automotive Cable Harness





self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.



flexible semi-rigid wrappable split PET braided cable sleeving is a perfect solution to protect wires, cables, wire harnesses where ease of installation is paramount. With a 25% overlap, this sleeving wraps securely to itself eliminating the need to secure the sleeving opening with any other method.





Product Introduction of self closing braided sleeving


1. Self-closing wrap is a non-expandable sleeving woven from
monofilament (weft) and multifilament (warp) polyester yarns.



2. It provides a lightweight, cost-effective and tough solution for
the protection of a wide range of components.

3. Its inherent flexibility allows it to bend, coil and conform to irregular
shapes, while its open design allows it to be installed on completed
assemblies.



Self-Closing Braided Sleeving is made of PET monofilament and PET multifilament or PET monofilament and Nylon multifilament,and then it is naturally rolled into a roll by a special process.The winding coverage can reach 25%.Easy to install and remove,beautiful,flame retardant,anti-wear.Mainly used for wiring of automobiles,military,ship, communication cable.



Application of braided sleeving

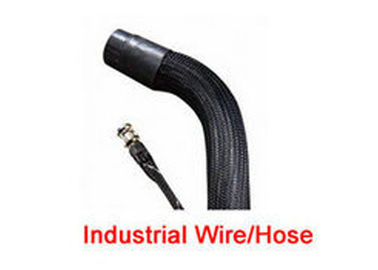

Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.



Dose not trap heat or humidity Rot-free , Self-fitting over many shapes and sizes Self-extinguishing when used to encase typical non-flammable wires or cable Fray resistant.





Technical data:


1. Material: Polyester

2. Operating range: - 50ºC - +150ºC

3. Melt Point: 250ºC+-5ºC

4. Flammability: VW-1



Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.





Description of self closing braided sleeving



The open self- closing braided sleeve is made of VO grade polyester monofilament, which has the characteristics of heat dissipation, wear resistance, acid resistance, dust resistance, softness, simple operation, convenience and quickness. The structure is beneficial to protect the maintenance, reassembly and overhaul of the internal wiring harness.



PET White Self Wrapping Split Braided Sleeving for cable management (PET woven mesh tube) is braided by environment friendly polyester monofil. PET, PA6, PA66, PPS are with good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving are smooth surface, bright color, various patterns.





Our data description:





Part No.

I.D

(d)

Overlap

(%)

Max. Bundle Dia. Packing
(L)
HYH-006 6.0 mm 25 7.0 mm 100m
HYH-009 9.0 mm   10.0 mm 100m
HYH-013 13.0 mm   14.0 mm 50m
HYH-016 16.0 mm   17.0mm 25m
HYH-019 19.0 mm   20.0 mm 25m
HYH-025 25.0 mm   26.0 mm 25m
HYH-032 32.0 mm   33.0 mm 25m
HYH-038 38.0 mm   40.0 mm 25m
HYH-050 50.0 mm   52.0 mm 25m







Automotive Cable Harness Self Closing Braided Wrap Multifilament PET Material 0











































Automotive Cable Harness Self Closing Braided Wrap Multifilament PET Material 1
