|Place of Origin:||Shenzhen of China|
|Certification:||UL, RoHS, REACH|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Standard export carton|
|Supply Ability:||500,000 meters per month|
|Name:||Electrical Braided Sleeving||Sample:||Free|
|Function:||Wire Harness||Feature 1:||Wear Resistant|
|Feature 2:||Fire- Retardant||Material:||Pet,nylon,stainless Steel|
braided electrical sleeving,
high temperature braided sleeving

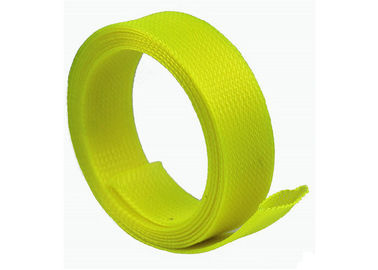

15 mm Flame retardant Electrical Braided Sleeving For Cable Harness Protection
This product is made of environmentally friendly pet wire. It is widely used in the protection of automobile wiring, cable, light, sound, wire and other beam protection. It has strong anti-corrosion, wear resistance, flexibility, expandability, etc. Performance, its unique sleeve features also have good ventilation and instant diffusion wire heat function, can be customized according to customer requirements, weaving into different sizes, different colors and different patterns with monofilament or multifilament.
Material: environmentally friendly non-toxic pet material
Uses: wire protection and tightening and aesthetics.
Feactures of Braided Sleeves
The braided sleeve is made of environmentally-friendly PET silk, which has good flexibility, flame retardancy, wear resistance and heat insulation. The product has a smooth surface, bright color and a variety of patterns. Products are widely used in computer power lines, audio and video lines, automotive, aviation, wire and cable industries, to protect and beautify.
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
What's the special of this cable sleeve
1. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
2. Suitable for constructing and protecting cable harnesses or tidying cable looms.
3. Sleeve expands to allow the cables to pass through and then automatically shrinks back.
Description of Braided Sleeving
Application of braided sleeving
It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.
1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey. Other colors upon request.
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
7. Cutting tool: Hot knife
PET Expandable Sleeving is braided from polyethylene terepthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.
Our PET braided sleeving has excellent wear resistance,elasticity,smoothness,flame retardancy and is made of industrial,high strength,environmentally friendly non-toxic 1.0 viscosity PET mono or multifilament.We can make sleevings of different widths, colors and patterns with mono or multifilament according to customer's request.Widely used for various types of automotive and aircraft wiring,consumer electronics, computers and other wire industry.
Recommended For:Nylon textile sleeve is designed to provide long-wearing abrasion protection for hoses, cables and wires. Manufactured from high tenacity multi-filament nylon yarn and woven into a flexible tubular sleeving, the nylon textile sleeve provides complete system coverage and reliable protection.
Material:high tenacity multi-filament nylon
Application:Nylon textile sleeve is mainly used for wear resistance and explosion proof mechanical equipment hydraulic hose, oil rubber hose, the trachea and other pipe fitting, especially suitable for working under the severe environment.
Temperature Range :-60ºF to +375ºF (-50ºC to +190ºC)
Material : PET,Nylon.
Feature:Diameter expands up to 150% Flexibility and Fireproof

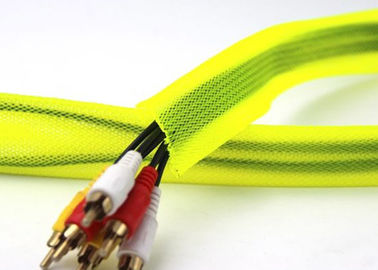

Protection of various data cable such as audio cable, video cable and any other cable.
Expandable & Flexible - Diameter can expand up to 150% to fit a wide variety of cable gauges, cables feel protected but still flexible. Ideal for installs where a some extra protection is needed.
Adjustable & Easy to Install - Protective cable covers can be cut to any length to match your organization needs. You do need to ether cut it with a HOT KNIFE to prevent fraying or melt the ends a bit with a lighter after you cut it.
Durable & Flame Resistant - Perfect solution for pets who chew electrical wires and cords, as our cable management sleeves are made with abrasion and flame resistant material which is UL | ROHS | REACH | Halogen Free.
Say goodbye to cluttered cabling eyesores that are impossible to ignore. Our expandable braided cable organizer will keep your wiring setup organized and tangle-free. Ensures that the cables behind your TV or computer remain neat and tidy. Flexible braided material ensures it won't scuff up the room either.
1, Feature:Strong corrosion resistance,excellent flexibility, easy bending, simplify operation, good scalability, resilience and abrasion resistance.
2, Application:Products are widely used in computer power cord, audio-video, automotive, aviation, wire and cable industries. It has protect and beautify the role. Its unique mesh characteristics but also has good ventilation, and a thermal diffusion function in a timely manner.
Keep the cable clean and tidy: solve the problem of cable chaos by wearing a PET case
Versatile and multi-attribute: fireproof (melt temperature: 446), anti-mouse biting and anti-wear (delay wire life)
Scalable braided sleeve: diameter is expanded to 150%, please select the correct size according to the thickness of the wire
Suitable for a variety of applications: data line protectors, wire protectors, car line covers and more
Safe and reliable: Aibole PET braided sleeves are UL, ROHS, PFOS and REACH certified and halogen free
Good flexibility, easy to bend, can loose to close, easy to operation, lead good scalability, elastic resistance and abrasion resistance
Strong corrosion resistance, abrasion resistance, scalability, such as expansion of sexual performance
Good ventilation and instant diffusion wire heat function
UL Standard cable wire harness sleeves
Feature of braided sleeving
High-density and abrasion-resistant
Various colors, sizes and length can be customized
With UL, SGS, REACH, RoHS marks
Commonly used in high-temperature environment
It has high-abrasion resistance, chemical resistance, high-temperature stability, low-moisture absorption, excellent dimensional stability.
Braided sleeving has smooth surface, bright color and various patterns. It is an ideal product for line management and bundle application of electronics, automobiles, airplanes, ships, industry and home. For example, DVI wire mesh sets, HDMI wire net sets, motor vehicle engine line dressing, home theater wire management, computer chassis wire layout, office line management, car wiring harness, water tube protection and so on.
Uses: protection, tightening and beautification of various wires;
Features: excellent softness, easy to bend, loose and tight, easy to lead operation, good flexibility, elasticity and wear resistance, can be expanded to 200%, that is, 20mm wide;
Recommended use: It is recommended to use a wire outer diameter range of 10-12mm, suitable for SATA data lines, etc.;
Note: Snake skin net will be shortened at the same time of expansion, please reserve enough length, it is recommended to use with Φ12-Φ14 heat shrinkable tube;
Product Overview: This product is made of environmentally friendly PET wire. It is widely used in the protection of automobile wiring, cable, light, sound, wire and other beam protection. It has strong anti-corrosion, wear resistance, flexibility, expandability, etc. Performance, its unique mesh features also have good ventilation and instant diffusion wire heat function, can be customized according to customer requirements, weaving into different sizes, different colors and different patterns with monofilament or multifilament.
Dimensions of braided sleeves
1. Nominal size indicates the flat width.
2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
4. Special packing, sizes, and colors can be supplied upon request.
5. All numerical data are average or typical values, not including customized sizes.
