| Brand Name: | Huiyunhai |
| Model Number: | HYH-V |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export carton |
| Payment Terms: | T/T |

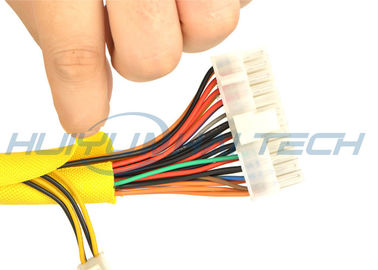

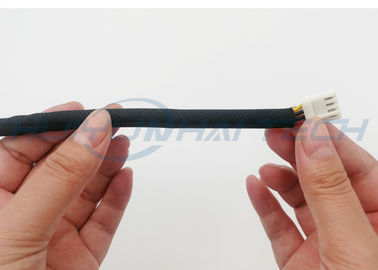

PET Self Wrapping Split Braided Sleeving For Wires / Cables Harness Management
Application
Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.
Dose not trap heat or humidity Rot-free , Self-fitting over many shapes and sizes Self-extinguishing when used to encase typical non-flammable wires or cable Fray resistant.
Technical data:
1. Material: Polyester
2. Operating range: - 50ºC - +150ºC
3. Melt Point: 250ºC+-5ºC
4. Flammability: VW-1
Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.
Description of self closing braided sleeving
The open self- closing braided sleeve is made of VO grade polyester monofilament, which has the characteristics of heat dissipation, wear resistance, acid resistance, dust resistance, softness, simple operation, convenience and quickness. The structure is beneficial to protect the maintenance, reassembly and overhaul of the internal wiring harness.
PET White Self Wrapping Split Braided Sleeving for cable management (PET woven mesh tube) is braided by environment friendly polyester monofil. PET, PA6, PA66, PPS are with good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving are smooth surface, bright color, various patterns.
self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.
flexible semi-rigid wrappable split PET braided cable sleeving is a perfect solution to protect wires, cables, wire harnesses where ease of installation is paramount. With a 25% overlap, this sleeving wraps securely to itself eliminating the need to secure the sleeving opening with any other method.
Our data description:
| Part No. |
I.D (d) |
Overlap (%) |
Max. Bundle Dia. | Packing (L) |
| HYH-006 | 6.0 mm | 25 | 7.0 mm | 100m |
| HYH-009 | 9.0 mm | 10.0 mm | 100m | |
| HYH-013 | 13.0 mm | 14.0 mm | 50m | |
| HYH-016 | 16.0 mm | 17.0mm | 25m | |
| HYH-019 | 19.0 mm | 20.0 mm | 25m | |
| HYH-025 | 25.0 mm | 26.0 mm | 25m | |
| HYH-032 | 32.0 mm | 33.0 mm | 25m | |
| HYH-038 | 38.0 mm | 40.0 mm | 25m | |
| HYH-050 | 50.0 mm | 52.0 mm | 25m |
|
|
