Durable Flexible Braided Cable Sleeving Flame Resistant For Cable Wire Harness

Durable Flexible Braided Cable Sleeving Flame Resistant For Cable Wire Harness

  • Durable Flexible Braided Cable Sleeving Flame Resistant For Cable Wire Harness
  • Durable Flexible Braided Cable Sleeving Flame Resistant For Cable Wire Harness
Durable Flexible Braided Cable Sleeving Flame Resistant For Cable Wire Harness
Product Details:
Place of Origin: Shenzhen of China
Brand Name: Huiyunhai
Certification: UL, RoHS, REACH
Model Number: HYH
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Supply Ability: 500,000 meters per month
Contact Now
Detailed Product Description
Name: Expandable Braided Sleeving Lead Time: 6 Days
Function: Cable Protection Feature 1: Wear Resistant
Feature 2: Flame Proof Material: Pet, Nylon, Tinned Copper, Stainless Steel
High Light:

braided electrical sleeving

,

high temperature braided sleeving

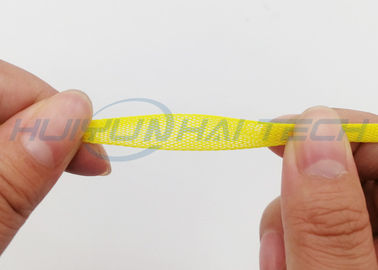

Yellow Color Flame Resistant Flexible Braided Sleeving For Cable Wire Harness











Description of Braided Sleeving



The environmentally friendly braided sleeving is mainly used in computer power cords, audio video cables, automobiles, aviation, wire and cable industries, etc. It plays a protective and beautifying role and has certain shielding performance. It is most suitable for the audio medical industry, economical and easy to organize. At the same time, it has very good wear and corrosion resistance, suitable for wire harness protection, wear, corrosion, decoration and storage in various mechanical and electronic industries.

The environmentally friendly braided sleeving is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through

environmental protection certification.





Main Advantages of PET material:



1. Operating temperature: -50°C~150°C



2. Melting point: 250±5°C.



3. Flammability: UL VW-1


4. Standard color: White, Black, Gray,Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern



5. Cutting tool: Hot knife


6. Certificate: RoHS ,MSDS,Halogen Free





The braided sleeving is made of environmentally-friendly PET/ Nylon/ Cotton/ Tinned Copper/ Stainless Stell material, which has good flexibility, flame retardancy, wear resistance and heat insulation. The product has a smooth surface, bright color and a variety of patterns. Products are widely used in computer power lines, audio and video lines, automotive, aviation, wire and cable industries, to protect and beautify the wires and cables for longer usage lifespan.

This product is made of environmentally friendly pet wire. It is widely used in the protection of automobile wiring, cable, light, sound, wire and other beam protection. It has strong anti-corrosion, wear resistance, flexibility, expandability, etc. Performance, its unique sleeve features also have good ventilation and instant diffusion wire heat function, can be customized according to customer requirements, weaving into different sizes, different colors and different patterns with monofilament or multifilament.

Material: environmentally friendly non-toxic pet material

Uses: wire protection and tightening and aesthetics.





Durable Flexible Braided Cable Sleeving Flame Resistant For Cable Wire Harness 0








1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm / 0.12 silk monofilament.

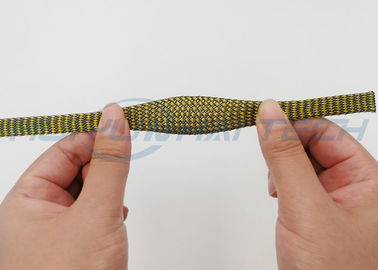

3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach twice than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.



Application of braided sleeving


It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.





1. Automobile wires protection



2. Structured cabling system



3. A/V cables & HDMI cables



4. Industrial hoses & tubes protection


Technical data of tinned copper



1.Copper filament material
2.Good EMI shielding
3.Cut and abrasion resistant
4.Flexible&easy to install





Multi-purpose metal braid provides shielding and grounding for equipment or wire harnesses , to protect your investment

Aesthetically pleasing design is commonly used to decorate or conceal hoses and wires in automotive applications

Expandable design allows for quick and easy installation of cable or wire bundles

Quality tinned copper braid can be easily soldered to connectors and used for custom-length earth straps



Resists chemicals and the elements for use in rugged or exposed applications

Durable construction provides superior protection from accidental cuts or consistent abrasion






Notes:



1.  Nominal size indicates the flat width.

2.  The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3.  This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4.  Special packing, sizes, and colors can be supplied upon request.

5.  All numerical data are average or typical values, not including customized sizes.





Model Natural
OD(MM)
Max Expand
OD(MM)
N.W(g) Packing
(M/spool)
  Model Natural
OD(MM))
Max Expand
OD(MM)
N.W(g) Packing
(M/spool)
161020 1 2 2.5 1000   641025 8 16 7 500
161025 1 2 2.5 1000   642020 12 25 10.5 500
162020 2 4 3 1000   642025 14 30 12 500
162025 3 6 3 1000   643020 16 32 14 500
163020 3 6 4 1000   643025 18 35 17 250
163025 4 8 4 1000   721020 8 16 6.5 800
241020 2 4 3 1000   721025 9 18 7.5 800
241025 2 4 3 1000   722020 14 28 12 500
242020 3 6 4.5 1000   722025 16 32 14 500
242025 4 8 4.5 1000   723020 18 35 16 300
243020 4 8 5 800   723025 23 45 19 200
243025 5 10 5.5 500   961020 10 20 8 500
321020 3 6 3 1000   961025 11 22 9 560
321025 3 6 3 1000   962020 20 40 14 500
322020 5 10 4.5 500   962025 25 50 16 500
322025 6 12 4.5 500   963020 28 55 18 300
323020 6 12 6 500   963025 35 70 25 100
323025 7 14 7.5 500   964020 30 60 26 100
401020 4 8 3.5 800   964025 36 72 28 100
401025 4 8 3.5 800   965025 40 80 46 100
402020 6 12 5.5 500   1201020 10 20 10 300
402025 8 14 6 500   1201025 12 22 13 300
403020 8 16 7 600   1202020 22 45 15 200
403025 10 20 10 400   1202025 26 32 18 100
481020 5 10 4 1000   1203020 32 65 26 100
481025 6 12 4.5 500   1203025 38 75 32 100
482020 8 16 5.5 500   1204020 40 80 30 100
482025 10 20 7.5 500   1204025 45 90 40 100
483020 10 20 8.5 600   1205025 50 100 50g 50
483025 12 25 12 300   1206025 64 130 60g 50
561020 6 12 5 1000   1207025 76 150 70g 50
561025 7 14 6 800   1486025 80 160 80g 50
562020 10 20 8.5 500   1487025 90 180 90g 50
562025 12 25 10 500   1488025 100 200 100g 50
563020 14 30 11 500   flat1053020
563025 16 32 15 250   flat1053025
641020 7 14 6 1000   flat1054025











Durable Flexible Braided Cable Sleeving Flame Resistant For Cable Wire Harness 1

































Durable Flexible Braided Cable Sleeving Flame Resistant For Cable Wire Harness 2
