| Brand Name: | Huiyunhai |
| Model Number: | HYH |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Standard export carton |

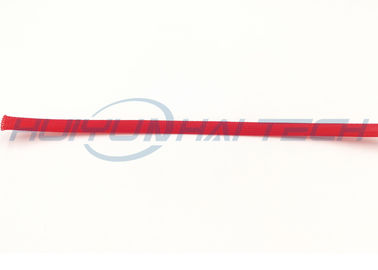

Flame Proof Red PET Electrical Braided Sleeving Expandable For Wire Cable Harness
Main Features of PET material:
1. working temperature: -50C ~ 150C
2. flame retardant: UL VW-1
3. flexible, eco-friendly, abrasive resistant, thermal insulation
Description of Braided Sleeving
Braided sleeving is made of environmentally-friendly PET/ Nylon/ Cotton/ Tinned Copper/ Stainless Stell material, which has good flexibility, flame retardancy, wear resistance and heat insulation. The product has a smooth surface, bright color and a variety of patterns. Products are widely used in computer power lines, audio and video lines, automotive, aviation, wire and cable industries, to protect and beautify the wires and cables for longer usage lifespan.
This product is made of environmentally friendly pet wire. It is widely used in the protection of automobile wiring, cable, light, sound, wire and other beam protection. It has strong anti-corrosion, wear resistance, flexibility, expandability, etc. Performance, its unique sleeve features also have good ventilation and instant diffusion wire heat function, can be customized according to customer requirements, weaving into different sizes, different colors and different patterns with monofilament or multifilament.
Material: environmentally friendly non-toxic pet material
Application of braided sleeving
It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.
1. Automobile wires protection
2. Structured cabling system
3. A/V cables & HDMI cables
4. Industrial hoses & tubes protection
Notes:
1. Nominal size indicates the flat width.
2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
4. Special packing, sizes, and colors can be supplied upon request.
5. All numerical data are average or typical values, not including customized sizes.
| Model | Natural OD(MM) |
Max Expand OD(MM) |
N.W(g) | Packing (M/spool) |
Model | Natural OD(MM)) |
Max Expand OD(MM) |
N.W(g) | Packing (M/spool) |
|
| 161020 | 1 | 2 | 2.5 | 1000 | 641025 | 8 | 16 | 7 | 500 | |
| 161025 | 1 | 2 | 2.5 | 1000 | 642020 | 12 | 25 | 10.5 | 500 | |
| 162020 | 2 | 4 | 3 | 1000 | 642025 | 14 | 30 | 12 | 500 | |
| 162025 | 3 | 6 | 3 | 1000 | 643020 | 16 | 32 | 14 | 500 | |
| 163020 | 3 | 6 | 4 | 1000 | 643025 | 18 | 35 | 17 | 250 | |
| 163025 | 4 | 8 | 4 | 1000 | 721020 | 8 | 16 | 6.5 | 800 | |
| 241020 | 2 | 4 | 3 | 1000 | 721025 | 9 | 18 | 7.5 | 800 | |
| 241025 | 2 | 4 | 3 | 1000 | 722020 | 14 | 28 | 12 | 500 | |
| 242020 | 3 | 6 | 4.5 | 1000 | 722025 | 16 | 32 | 14 | 500 | |
| 242025 | 4 | 8 | 4.5 | 1000 | 723020 | 18 | 35 | 16 | 300 | |
| 243020 | 4 | 8 | 5 | 800 | 723025 | 23 | 45 | 19 | 200 | |
| 243025 | 5 | 10 | 5.5 | 500 | 961020 | 10 | 20 | 8 | 500 | |
| 321020 | 3 | 6 | 3 | 1000 | 961025 | 11 | 22 | 9 | 560 | |
| 321025 | 3 | 6 | 3 | 1000 | 962020 | 20 | 40 | 14 | 500 | |
| 322020 | 5 | 10 | 4.5 | 500 | 962025 | 25 | 50 | 16 | 500 | |
| 322025 | 6 | 12 | 4.5 | 500 | 963020 | 28 | 55 | 18 | 300 | |
| 323020 | 6 | 12 | 6 | 500 | 963025 | 35 | 70 | 25 | 100 | |
| 323025 | 7 | 14 | 7.5 | 500 | 964020 | 30 | 60 | 26 | 100 | |
| 401020 | 4 | 8 | 3.5 | 800 | 964025 | 36 | 72 | 28 | 100 | |
| 401025 | 4 | 8 | 3.5 | 800 | 965025 | 40 | 80 | 46 | 100 | |
| 402020 | 6 | 12 | 5.5 | 500 | 1201020 | 10 | 20 | 10 | 300 | |
| 402025 | 8 | 14 | 6 | 500 | 1201025 | 12 | 22 | 13 | 300 | |
| 403020 | 8 | 16 | 7 | 600 | 1202020 | 22 | 45 | 15 | 200 | |
| 403025 | 10 | 20 | 10 | 400 | 1202025 | 26 | 32 | 18 | 100 | |
| 481020 | 5 | 10 | 4 | 1000 | 1203020 | 32 | 65 | 26 | 100 | |
| 481025 | 6 | 12 | 4.5 | 500 | 1203025 | 38 | 75 | 32 | 100 | |
| 482020 | 8 | 16 | 5.5 | 500 | 1204020 | 40 | 80 | 30 | 100 | |
| 482025 | 10 | 20 | 7.5 | 500 | 1204025 | 45 | 90 | 40 | 100 | |
| 483020 | 10 | 20 | 8.5 | 600 | 1205025 | 50 | 100 | 50g | 50 | |
| 483025 | 12 | 25 | 12 | 300 | 1206025 | 64 | 130 | 60g | 50 | |
| 561020 | 6 | 12 | 5 | 1000 | 1207025 | 76 | 150 | 70g | 50 | |
| 561025 | 7 | 14 | 6 | 800 | 1486025 | 80 | 160 | 80g | 50 | |
| 562020 | 10 | 20 | 8.5 | 500 | 1487025 | 90 | 180 | 90g | 50 | |
| 562025 | 12 | 25 | 10 | 500 | 1488025 | 100 | 200 | 100g | 50 | |
| 563020 | 14 | 30 | 11 | 500 | flat1053020 | |||||
| 563025 | 16 | 32 | 15 | 250 | flat1053025 | |||||
| 641020 | 7 | 14 | 6 | 1000 | flat1054025 |
|
|
