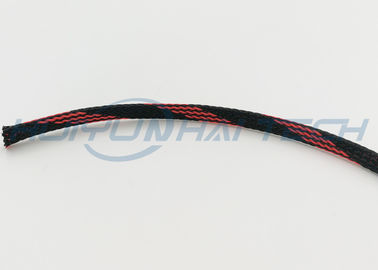

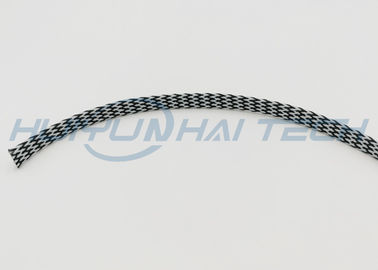

Wear Resistant Black Red Cross PET Electrical Braided Sleeving Expandable For Wires Harness
Description of Braided Sleeving ( Product NO:1203025-8 )
Parameters of products: | Product NO:1203025-8 | ||||
NO | ITEM | PARAMETER | NO | ITEM | PARAMETER |
A | CARRIERS | 120 | H | MATERIAL | PET |
B | STRANDS PER CARRIERS |
3 | I | COLOR | GREY AND BLACK |
C | STRANDS OD | 0.25 | J | SGS | SGS report |
D | MESH COUNT | 8 | K | EnvironmentalRequirement | Product complies with the EU ROHS standards |
E | NOMINAL OD | ¢40.0MM | L | management standard |
ISO9001:2016 |
F | MIN. OD | ¢40MM | M | SUPPLIER | HUIYUNHAI TECH.CO.,LTD |
Main Advantages of PET material:
1. Operating temperature: -50°C~150°C
2. Melting point: 250±5°C.
3. Flammability: UL VW-1
4. Standard color: White, Black, Gray,Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern
5. Cutting tool: Hot knife
6. Certificate: RoHS ,MSDS,Halogen Free
7. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
8. Braided of 0.25mm / 0.2mm / 0.12 silk monofilament.
9. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
10. Totally expanded the sleeving can reach twice than the initial dimension.
11. Logo printing is available.
12. Customized,Special package is willing to accepted,can be product according to customers requirements.
Application of braided sleeving
It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.
1. Automobile wires protection
2. Structured cabling system
3. A/V cables & HDMI cables
4. Industrial hoses & tubes protection
Notes:
1. Nominal size indicates the flat width.
2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
4. Special packing, sizes, and colors can be supplied upon request.
5. All numerical data are average or typical values, not including customized sizes.
Model | Natural OD(MM) |
Max Expand OD(MM) |
N.W(g) | Packing (M/spool) |
Model | Natural OD(MM)) |
Max Expand OD(MM) |
N.W(g) | Packing (M/spool) |
|
161020 | 1 | 2 | 2.5 | 1000 | 641025 | 8 | 16 | 7 | 500 | |
161025 | 1 | 2 | 2.5 | 1000 | 642020 | 12 | 25 | 10.5 | 500 | |
162020 | 2 | 4 | 3 | 1000 | 642025 | 14 | 30 | 12 | 500 | |
162025 | 3 | 6 | 3 | 1000 | 643020 | 16 | 32 | 14 | 500 | |
163020 | 3 | 6 | 4 | 1000 | 643025 | 18 | 35 | 17 | 250 | |
163025 | 4 | 8 | 4 | 1000 | 721020 | 8 | 16 | 6.5 | 800 | |
241020 | 2 | 4 | 3 | 1000 | 721025 | 9 | 18 | 7.5 | 800 | |
241025 | 2 | 4 | 3 | 1000 | 722020 | 14 | 28 | 12 | 500 | |
242020 | 3 | 6 | 4.5 | 1000 | 722025 | 16 | 32 | 14 | 500 | |
242025 | 4 | 8 | 4.5 | 1000 | 723020 | 18 | 35 | 16 | 300 | |
243020 | 4 | 8 | 5 | 800 | 723025 | 23 | 45 | 19 | 200 | |
243025 | 5 | 10 | 5.5 | 500 | 961020 | 10 | 20 | 8 | 500 | |
321020 | 3 | 6 | 3 | 1000 | 961025 | 11 | 22 | 9 | 560 | |
321025 | 3 | 6 | 3 | 1000 | 962020 | 20 | 40 | 14 | 500 | |
322020 | 5 | 10 | 4.5 | 500 | 962025 | 25 | 50 | 16 | 500 | |
322025 | 6 | 12 | 4.5 | 500 | 963020 | 28 | 55 | 18 | 300 | |
323020 | 6 | 12 | 6 | 500 | 963025 | 35 | 70 | 25 | 100 | |
323025 | 7 | 14 | 7.5 | 500 | 964020 | 30 | 60 | 26 | 100 | |
401020 | 4 | 8 | 3.5 | 800 | 964025 | 36 | 72 | 28 | 100 | |
401025 | 4 | 8 | 3.5 | 800 | 965025 | 40 | 80 | 46 | 100 | |
402020 | 6 | 12 | 5.5 | 500 | 1201020 | 10 | 20 | 10 | 300 | |
402025 | 8 | 14 | 6 | 500 | 1201025 | 12 | 22 | 13 | 300 | |
403020 | 8 | 16 | 7 | 600 | 1202020 | 22 | 45 | 15 | 200 | |
403025 | 10 | 20 | 10 | 400 | 1202025 | 26 | 32 | 18 | 100 | |
481020 | 5 | 10 | 4 | 1000 | 1203020 | 32 | 65 | 26 | 100 | |
481025 | 6 | 12 | 4.5 | 500 | 1203025 | 38 | 75 | 32 | 100 | |
482020 | 8 | 16 | 5.5 | 500 | 1204020 | 40 | 80 | 30 | 100 | |
482025 | 10 | 20 | 7.5 | 500 | 1204025 | 45 | 90 | 40 | 100 | |
483020 | 10 | 20 | 8.5 | 600 | 1205025 | 50 | 100 | 50g | 50 | |
483025 | 12 | 25 | 12 | 300 | 1206025 | 64 | 130 | 60g | 50 | |
561020 | 6 | 12 | 5 | 1000 | 1207025 | 76 | 150 | 70g | 50 | |
561025 | 7 | 14 | 6 | 800 | 1486025 | 80 | 160 | 80g | 50 | |
562020 | 10 | 20 | 8.5 | 500 | 1487025 | 90 | 180 | 90g | 50 | |
562025 | 12 | 25 | 10 | 500 | 1488025 | 100 | 200 | 100g | 50 | |
563020 | 14 | 30 | 11 | 500 | flat1053020 | |||||
563025 | 16 | 32 | 15 | 250 | flat1053025 | |||||
641020 | 7 | 14 | 6 | 1000 | flat1054025 |
