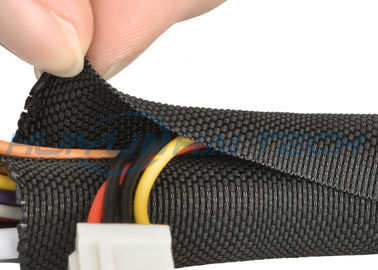

Black PET self Wrapping Split Braided Sleeving for Cable Management Harness
self wrapping split braided sleeving is braided of environmentally friendly PET filament and tetoron
filament. Its light weight, good flame resistance, abrasion resistence and heat insulation provides the
perfect solution to manage wires and cables safely and effectively. Compared with other cable protector, it is more cost effective and has a wider scope of protection.
Inner Diameter:3mm to 50mm
Delivery Time: 5-10 working day
Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.
Description of self closing braided sleeving
The open self- closing braided sleeve is made of VO grade polyester monofilament, which has the characteristics of heat dissipation, wear resistance, acid resistance, dust resistance, softness, simple operation, convenience and quickness. The structure is beneficial to protect the maintenance, reassembly and overhaul of the internal wiring harness.
PET White Self Wrapping Split Braided Sleeving for cable management (PET woven mesh tube) is braided by environment friendly polyester monofil. PET, PA6, PA66, PPS are with good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving are smooth surface, bright color, various patterns.
self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.
flexible semi-rigid wrappable split PET braided cable sleeving is a perfect solution to protect wires, cables, wire harnesses where ease of installation is paramount. With a 25% overlap, this sleeving wraps securely to itself eliminating the need to secure the sleeving opening with any other method.
Application
Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.
Technical data:
1. Material: Polyester
2. Operating range: - 50ºC - +150ºC
3. Melt Point: 250ºC+-5ºC
4. Flammability: VW-1
|
|
