PET Expandable Braided Sleeving
>
Polyester Braided Expandable Wire Sleeving For Wire Cable Organizer

Polyester Braided Expandable Wire Sleeving For Wire Cable Organizer

Brand Name: Huiyunhai
Model Number: HYH
MOQ: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, REACH
Name:
Pet Braided Sleeving
Material:
Pet,nylon
Size:
Custom
Fuction:
Wear Resistant
Lead Time:
5 Days
Usage:
Cable Harness
Supply Ability:
500,000 meters per month
High Light:

expandable wire sleeving

,

braided wire loom

Product Description

Polyester Expandable Braided Sleeving For Wire Cable Organizer





Specification:



Size Bundle Diameter Description
Inch mm Min. Max. X * Y * Z
1/8" 3.2 3/32" 1/4" 40*1*0.25
1/4" 6.4 1/8" 7/16" 32*3*0.20
3/8" 9.5 3/16" 5/8" 48*3*0.20
1/2" 12.7 1/4" 3/4" 56*3*0.20
3/4" 19.1 1/2" 1-1/4" 72*3*0.20
1" 25.4 1" 2" 96*3*0.20
1-1/4" 29.0 3/4" 1-3/4" 96*3*0.25
1-1/2" 40.0 1" 2-1/2" 96*4*0.25
1-3/4" 45.0 1-1/4" 2-3/4" 120*3*0.25
2" 50.0 1-1/2" 3-1/2" 120*4*0.25

























>  Flame-retardant

>  Easy, Cost & Labor Effective Installation

>  More Flexible Than Split Convoluted or Spiral Wrap

>  Cuts easily with hot knife or scissor



>  Cut & abrasion resistant

>  25% Edge Overlap

>  Chemical inert

>  ROHS compliant

>  UV resistant

>  Cost effective wrap around solution

>  Retains shape & rigidity throughout operating temperature range

(-40°C to 125°C)

>  Melt Temp 230°C




Product feacture:


1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.




Structure of pet braided sleeving


Expandable sleeving is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.

Our PET braided sleeving has excellent wear resistance,elasticity,smoothness,flame retardancy and is made of industrial,high strength,environmentally friendly non-toxic 1.0 viscosity PET mono or multifilament.We can make sleevings of different widths, colors and patterns with mono or multifilament according to customer's request.Widely used for various types of automotive and aircraft wiring,consumer electronics, computers and other wire industry.


The selection of this sleeve refers to following four parameters.

A- yarn number (one or three)
B- Diameter of single yarn(0.25mm or 0.20mm)
C- Strand number (48 spindles braiding machine or 72 spindles braiding machine)
D- flat width(1mm or 100mm)

Pet expandable braided sleeve compiled by the Environmental Protection PET filament diameter monofilament 0.20mm or 0.25mm's made with good flexibility, flame resistance, abrasion resistance and heat resistance, network management can be easily expanded to the original 150% , and it is easy to tighten the various irregularly shaped objects, which can be maintained within a wide temperature range while maintaining a soft, can inhibit chemical corrosion, UV and friction, characterized by its unique mesh also has good ventilation, wire heat diffusion function in a timely manner.


3. Notes:

Huiyunhai nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight , highly flexible and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft, slick surface resisting snags when dragged over rough surface.


Application:


1. Automobile wires protection

2. Structured cabling system

3. A/V cables & HDMI cables

4. Industrial hoses & tubes protection

The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.
The environmentally friendly braided sleeve is mainly used in computer power cords, audio video cables, automobiles, aviation, wire and cable industries, etc. It plays a protective and beautifying role and has certain shielding performance. It is most suitable for the audio medical industry, economical and easy to organize. At the same time, it has very good wear and corrosion resistance, suitable for wire harness protection, wear, corrosion, decoration and storage in various mechanical and electronic industries.
The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.



 polyester braided nylon pet cable protection sleeve

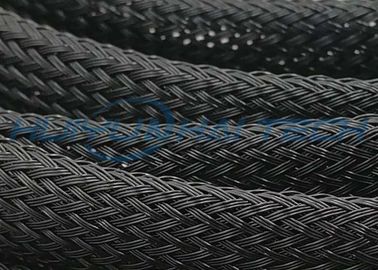

Polyester Braided Expandable Wire Sleeving For Wire Cable Organizer 0

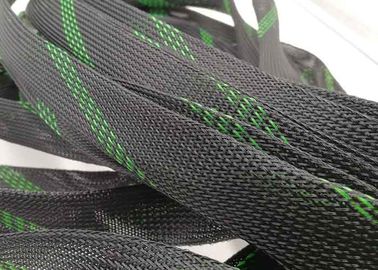

Polyester Braided Expandable Wire Sleeving For Wire Cable Organizer 1



























Polyester Braided Expandable Wire Sleeving For Wire Cable Organizer 2
