Flame Retardant Cable Sleeve
>
Mixed Weaving Various Patterns Flame Retardant Wire Loom For Wire Management

Mixed Weaving Various Patterns Flame Retardant Wire Loom For Wire Management

Brand Name: Huiyunhai
Model Number: HYH
MOQ: Negotiable
Price: Negotiable
Packaging Details: standard export carton
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, SGS, REACH, ISO
Material:
PET, Nylon, Cotton,tinned Copper
Diameter:
1mm To 100mm
Color:
Black,custom
Sample:
Free
Print:
Logo, Custom
Lead Time:
5 Days
Supply Ability:
3 million meters per month
High Light:

flame retardant wire loom

,

fire resistant cable sleeves

Product Description

Mixed Weaving Various Patterns Flame Retardant Cable Sleeve For Wire Management





product description



The PET braided mesh tube can be easily expanded to 150% and easily grips irregularly shaped objects.

The braided mesh tube can be kept soft in a wide temperature range, can inhibit chemical corrosion, UV protection and friction. Its unique mesh features also have good ventilation and instant diffusion of wire heat function. The surface of the product is smooth, bright and colorful.

Therefore, the weaving network tube is an ideal product for line management and bundling applications of electronics, automobiles, airplanes, ships, industry, and homes.



For example, DVI wire harness, HDMI wire harness protection, fiber optic lines, motorized engine lines, home theater line management, computer chassis wire layout, office line management, car wiring harness, scuba hose protection, etc.





Main Features of PET cable sleeve :



The product has smooth surface, bright color and various patterns. It is an ideal product for line management and bundle application of electronics, automobiles, airplanes, ships, industry and home. For example, DVI wire mesh sets, HDMI wire net sets, motor vehicle engine line dressing, home theater wire management, computer chassis wire layout, office line management, car wiring harness, water tube protection.



PET expandable braided sleeve for cable harness is braided by environment-friendly polyester monofil. (PET,PA66), the sleeve possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.



1. Operating temperature: -50°C~150°C



2. Melting point: 250±5°C.



3. Flammability: UL VW-1


4. Standard color: White, Black, Gray, Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern



5. Cutting tool: Hot knife


6. Certificate: RoHS, Reach,UL.



Applications:



Flame-retardant PET Expandable cable Braided Sleeve is designed from durable environment friendly PET monofilament yarns and the unique braided construction enables quick and easy installation over large connectors. These sleevings are used in wire harnessing in industries, hose and cable protection for the automotive, heavy equipment and marine industries. And generally commercial applications such as personal computers, automotive, motorcycling, bicycling, flyfishing and scuba diving.



Usage:



PET Expandable sleeve is widely used in bounding and protecting of electrical cables, automobile and aviation sectors.





Functions of cable sleeve:



To meet the requirement of wear protection in various industrial fields .it expands the diameter to 1.5 times larger than the original size with unique weaving structure.



We have one of the most extensive ranges of insulation products, expandable braided sleeving, cable ties, and accessories on the market, suitable for a wide spectrum of industries, from electrical design and construction companies, to manufacturers of electrical products and building industries. Expandable Braided Sleeves is manufactured from Polyethylene Terepthalate, or PET, which has great properties of flexibility and strength, plus a good resistance against chemicals, and when used on wire runs, it adds protection and extra insulation.





Notes:



1. Nominal size indicates the flat width.

2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4. Special packing, sizes, and colors can be supplied upon request.

5. All numerical data are average or typical values, not including customized sizes.





Model Natural
OD(MM)
Max Expand
OD(MM)
N.W(g) Packing
(M/spool)
  Model Natural
OD(MM))
Max Expand
OD(MM)
N.W(g) Packing
(M/spool)
161020 1 2 2.5 1000   641025 8 16 7 500
161025 1 2 2.5 1000   642020 12 25 10.5 500
162020 2 4 3 1000   642025 14 30 12 500
162025 3 6 3 1000   643020 16 32 14 500
163020 3 6 4 1000   643025 18 35 17 250
163025 4 8 4 1000   721020 8 16 6.5 800
241020 2 4 3 1000   721025 9 18 7.5 800
241025 2 4 3 1000   722020 14 28 12 500
242020 3 6 4.5 1000   722025 16 32 14 500
242025 4 8 4.5 1000   723020 18 35 16 300
243020 4 8 5 800   723025 23 45 19 200
243025 5 10 5.5 500   961020 10 20 8 500
321020 3 6 3 1000   961025 11 22 9 560
321025 3 6 3 1000   962020 20 40 14 500
322020 5 10 4.5 500   962025 25 50 16 500
322025 6 12 4.5 500   963020 28 55 18 300
323020 6 12 6 500   963025 35 70 25 100
323025 7 14 7.5 500   964020 30 60 26 100
401020 4 8 3.5 800   964025 36 72 28 100
401025 4 8 3.5 800   965025 40 80 46 100
402020 6 12 5.5 500   1201020 10 20 10 300
402025 8 14 6 500   1201025 12 22 13 300
403020 8 16 7 600   1202020 22 45 15 200
403025 10 20 10 400   1202025 26 32 18 100
481020 5 10 4 1000   1203020 32 65 26 100
481025 6 12 4.5 500   1203025 38 75 32 100
482020 8 16 5.5 500   1204020 40 80 30 100
482025 10 20 7.5 500   1204025 45 90 40 100
483020 10 20 8.5 600   1205025 50 100 50g 50
483025 12 25 12 300   1206025 64 130 60g 50
561020 6 12 5 1000   1207025 76 150 70g 50
561025 7 14 6 800   1486025 80 160 80g 50
562020 10 20 8.5 500   1487025 90 180 90g 50
562025 12 25 10 500   1488025 100 200 100g 50
563020 14 30 11 500   flat1053020
563025 16 32 15 250   flat1053025
641020 7 14 6 1000   flat1054025

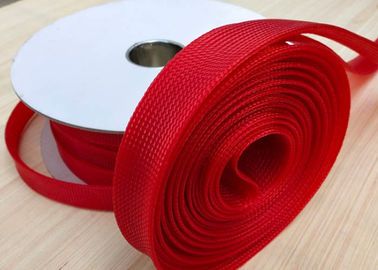

Mixed Weaving Various Patterns Flame Retardant Wire Loom For Wire Management 0

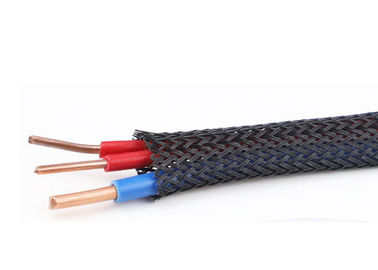

Mixed Weaving Various Patterns Flame Retardant Wire Loom For Wire Management 1
