Brand Name: | Huiyunhai |
Model Number: | HYH |
MOQ: | Negotiable |
Price: | Negotiable |
Packaging Details: | Standard export carton |

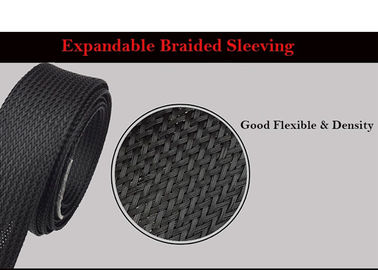

Self- extinguishing Expandable Electrical Braided Sleeving Cable Harness
Q: Are you a factory or trading company ?
A: We are an expandable braided sleeving factory ,passed UL , CUL , ROHS OEM&ODM service are available.
Q :Can you provide free samples ?
A: Yes , Free samples is available , you just need to pay for the shipping cost.
Q: What is your MOQ ?
A: Normally , 100m per a color or size.
Q What is your payment terms ?
A: By bank account and western union.
Q: What is your delivery time? Can you short it in 7days or less ?
A: 2---3days for sample , 3---20days for mass production after receiving payment (depend on quantity).
Q: How can we get my order ? How can we know you have sent the goods ?
A: We will send you the goods by UPS,DHL, TNT,Fedex,Oversea shippment or other forwarder, all with tracking number.
Q: How about your quality ?
A: Try a small order , you will have a judgement.
Application Fields | Electronics, automotive, marine and industrial wire harnessing application |
Sleeve Material | 0.25mm PET monofilament |
Working Temperature | -70°C to 125°C (-103°F to 257°F) |
Melt Point | 260°C (500°F) |
Flame Retardant | Yes |
Flammability Class | UL 94 V1 |
Size | 12mm |
Available Size | 3mm~100mm |
Standard Color | Black,White,Grey |
Available Color | 64 colors available, accorcing to our color guide |
Packaging | 3 50m/Roll,4 rolls/ctn |
Carton size: | customized |
Container: | 2000 rolls or 500 cartons for one 20' container |
Full Size Sample Lead time: | As usual 3-7 working days |
Production Lead time: | 5~10 days |
Main Advantages of PET material:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm / 0.12 silk monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach twice than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.

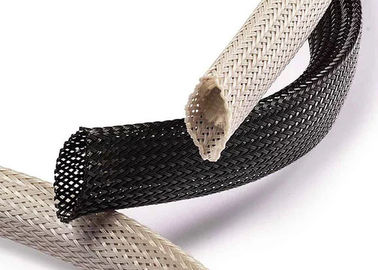

Application of braided sleeving
It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.
Black color is Good resistance to abrasion and the UV rays
Temperature maximum: 125°C
Temperature minimum: -75°C
The braided sleeving is split for quick and easy installation
No need to remove harness or remove plugs
Meet certifications of ROHS
Fire resistance: VW-1
Multi-purpose metal braid provides shielding and grounding for equipment or wire harnesses , to protect your investment
Aesthetically pleasing design is commonly used to decorate or conceal hoses and wires in automotive applications
Expandable design allows for quick and easy installation of cable or wire bundles
Quality tinned copper braid can be easily soldered to connectors and used for custom-length earth straps
Resists chemicals and the elements for use in rugged or exposed applications
Durable construction provides superior protection from accidental cuts or consistent abrasion
Notes:
1. Nominal size indicates the flat width.
2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
4. Special packing, sizes, and colors can be supplied upon request.
5. All numerical data are average or typical values, not including customized sizes.
Model | Natural OD(MM) |
Max Expand OD(MM) |
N.W(g) | Packing (M/spool) |
Model | Natural OD(MM)) |
Max Expand OD(MM) |
N.W(g) | Packing (M/spool) |
|
161020 | 1 | 2 | 2.5 | 1000 | 641025 | 8 | 16 | 7 | 500 | |
161025 | 1 | 2 | 2.5 | 1000 | 642020 | 12 | 25 | 10.5 | 500 | |
162020 | 2 | 4 | 3 | 1000 | 642025 | 14 | 30 | 12 | 500 | |
162025 | 3 | 6 | 3 | 1000 | 643020 | 16 | 32 | 14 | 500 | |
163020 | 3 | 6 | 4 | 1000 | 643025 | 18 | 35 | 17 | 250 | |
163025 | 4 | 8 | 4 | 1000 | 721020 | 8 | 16 | 6.5 | 800 | |
241020 | 2 | 4 | 3 | 1000 | 721025 | 9 | 18 | 7.5 | 800 | |
241025 | 2 | 4 | 3 | 1000 | 722020 | 14 | 28 | 12 | 500 | |
242020 | 3 | 6 | 4.5 | 1000 | 722025 | 16 | 32 | 14 | 500 | |
242025 | 4 | 8 | 4.5 | 1000 | 723020 | 18 | 35 | 16 | 300 | |
243020 | 4 | 8 | 5 | 800 | 723025 | 23 | 45 | 19 | 200 | |
243025 | 5 | 10 | 5.5 | 500 | 961020 | 10 | 20 | 8 | 500 | |
321020 | 3 | 6 | 3 | 1000 | 961025 | 11 | 22 | 9 | 560 | |
321025 | 3 | 6 | 3 | 1000 | 962020 | 20 | 40 | 14 | 500 | |
322020 | 5 | 10 | 4.5 | 500 | 962025 | 25 | 50 | 16 | 500 | |
322025 | 6 | 12 | 4.5 | 500 | 963020 | 28 | 55 | 18 | 300 | |
323020 | 6 | 12 | 6 | 500 | 963025 | 35 | 70 | 25 | 100 | |
323025 | 7 | 14 | 7.5 | 500 | 964020 | 30 | 60 | 26 | 100 | |
401020 | 4 | 8 | 3.5 | 800 | 964025 | 36 | 72 | 28 | 100 | |
401025 | 4 | 8 | 3.5 | 800 | 965025 | 40 | 80 | 46 | 100 | |
402020 | 6 | 12 | 5.5 | 500 | 1201020 | 10 | 20 | 10 | 300 | |
402025 | 8 | 14 | 6 | 500 | 1201025 | 12 | 22 | 13 | 300 | |
403020 | 8 | 16 | 7 | 600 | 1202020 | 22 | 45 | 15 | 200 | |
403025 | 10 | 20 | 10 | 400 | 1202025 | 26 | 32 | 18 | 100 | |
481020 | 5 | 10 | 4 | 1000 | 1203020 | 32 | 65 | 26 | 100 | |
481025 | 6 | 12 | 4.5 | 500 | 1203025 | 38 | 75 | 32 | 100 | |
482020 | 8 | 16 | 5.5 | 500 | 1204020 | 40 | 80 | 30 | 100 | |
482025 | 10 | 20 | 7.5 | 500 | 1204025 | 45 | 90 | 40 | 100 | |
483020 | 10 | 20 | 8.5 | 600 | 1205025 | 50 | 100 | 50g | 50 | |
483025 | 12 | 25 | 12 | 300 | 1206025 | 64 | 130 | 60g | 50 | |
561020 | 6 | 12 | 5 | 1000 | 1207025 | 76 | 150 | 70g | 50 | |
561025 | 7 | 14 | 6 | 800 | 1486025 | 80 | 160 | 80g | 50 | |
562020 | 10 | 20 | 8.5 | 500 | 1487025 | 90 | 180 | 90g | 50 | |
562025 | 12 | 25 | 10 | 500 | 1488025 | 100 | 200 | 100g | 50 | |
563020 | 14 | 30 | 11 | 500 | flat1053020 | |||||
563025 | 16 | 32 | 15 | 250 | flat1053025 | |||||
641020 | 7 | 14 | 6 | 1000 | flat1054025 |
