PET Expandable Braided Sleeving
>
Flexo PET Braided sleeving , PET Expandable Mesh Sleeving

Flexo PET Braided sleeving , PET Expandable Mesh Sleeving

Brand Name: Huiyunhai
Model Number: HYH
MOQ: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, REACH
Name:
Pet Braided Sleeving
Material:
Pet,nylon
Size:
Custom
Fuction:
Wear Resistant
Lead Time:
5 Days
Usage:
Cable Harness
Supply Ability:
500,000 meters per month
Highlight:

expandable wire sleeving

,

braided wire loom

Product Description

Flexo PET Braided sleeving , PET Expandable Mesh Sleeving



The selection of this sleeve refers to following four parameters.

A- yarn number (one or three)
B- Diameter of single yarn(0.25mm or 0.20mm)
C- Strand number (48 spindles braiding machine or 72 spindles braiding machine)
D- flat width(1mm or 100mm)

Pet expandable braided sleeve compiled by the Environmental Protection PET filament diameter monofilament 0.20mm or 0.25mm's made with good flexibility, flame resistance, abrasion resistance and heat resistance, network management can be easily expanded to the original 150% , and it is easy to tighten the various irregularly shaped objects, which can be maintained within a wide temperature range while maintaining a soft, can inhibit chemical corrosion, UV and friction, characterized by its unique mesh also has good ventilation, wire heat diffusion function in a timely manner.



Product feacture:


1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.




Structure of pet braided sleeving


Expandable sleeving is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.

Our PET braided sleeving has excellent wear resistance,elasticity,smoothness,flame retardancy and is made of industrial,high strength,environmentally friendly non-toxic 1.0 viscosity PET mono or multifilament.We can make sleevings of different widths, colors and patterns with mono or multifilament according to customer's request.Widely used for various types of automotive and aircraft wiring,consumer electronics, computers and other wire industry.



Notes:



1. Nominal size indicates the flat width.

2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4. Special packing, sizes, and colors can be supplied upon request.

5. All numerical data are average or typical values, not including customized sizes.









NO ITEM PARAMETER NO ITEM PARAMETER
A CARRIERS 96 H MATERIAL PET
B STRANDS PER
CARRIERS
3 I COLOR GREY AND BLACK
C STRANDS OD 0.25 J SGS SGS report
D MESH COUNT 8 K EnvironmentalRequirement Product complies with
the EU ROHS standards
E NOMINAL OD ¢30.0MM L management
standard
ISO9001:2016
F MIN. OD ¢30MM M SUPPLIER HUIYUNHAI TECH.CO.,LTD
G MAX. OD ¢60MM N DATE 2018.3.14

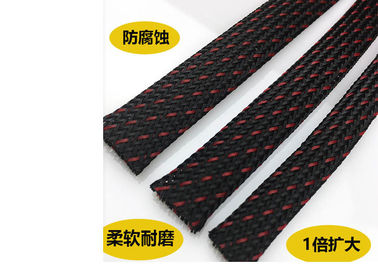

Flexo PET Braided sleeving , PET Expandable Mesh Sleeving 0

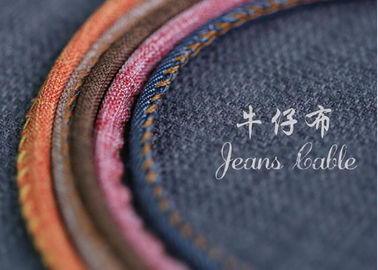

Flexo PET Braided sleeving , PET Expandable Mesh Sleeving 1
