| Brand Name: | Huiyunhai |
| Model Number: | HYH |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Standard export carton |

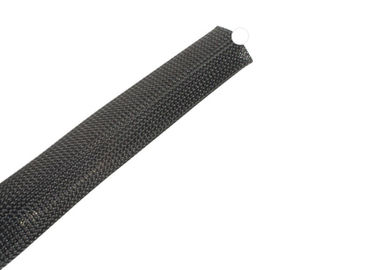

Flexo Pet Expandable Braided Cable Sleeving Fireproof Wire Harness Management
Structure of pet braided sleeving
Expandable sleeving is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.
Our PET braided sleeving has excellent wear resistance,elasticity,smoothness,flame retardancy and is made of industrial,high strength,environmentally friendly non-toxic 1.0 viscosity PET mono or multifilament.We can make sleevings of different widths, colors and patterns with mono or multifilament according to customer's request.Widely used for various types of automotive and aircraft wiring,consumer electronics, computers and other wire industry.
Pet expandable braided sleeve compiled by the Environmental Protection PET filament diameter monofilament 0.20mm or 0.25mm's made with good flexibility, flame resistance, abrasion resistance and heat resistance, network management can be easily expanded to the original 150% , and it is easy to tighten the various irregularly shaped objects, which can be maintained within a wide temperature range while maintaining a soft, can inhibit chemical corrosion, UV and friction, characterized by its unique mesh also has good ventilation, wire heat diffusion function in a timely manner.
Main Properties:
1. Operating temperature: -50°C~150°C
2. Melting point: 250±5°C.
3.Flammability: UL VW-1
4.Standard color: White, Black, Gray, Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern
5.Cutting tool: Hot knife
6. Certificate: RoHS, MSDS
| Application Fields | Electronics, automotive, marine and industrial wire harnessing application |
| Sleeve Material | 0.25mm PET monofilament |
| Working Temperature | -70°C to 125°C (-103°F to 257°F) |
| Melt Point | 260°C (500°F) |
| Flame Retardant | Yes |
| Flammability Class | UL 94 V1 |
| Size | 20mm |
| Available Size | 3mm~100mm |
| Standard Color | Black,White,Grey |
| Available Color | 64 colors available, accorcing to our color guide |
| Packaging | 200m/Roll,4 rolls/ctn |
| Carton size: | 52*52*18cm or customized |
| Container: | 2000 rolls or 500 cartons for one 20' container |
| Full Size Sample Lead time: | As usual 3-7 working days |
| Production Lead time: | 7~10 days |

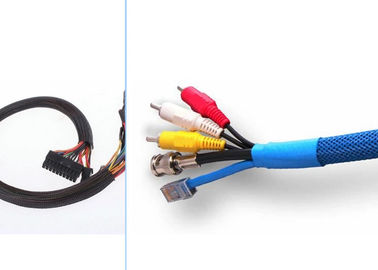

Braided Expandable Cable Sleeving Application:
1. Automobile wires protection
2. Structured cabling system
3.A/V cables & cables
4.Industrial hoses & tubes protection
Product feactures:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Notes:
Huiyunhai nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight , highly flexible and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft, slick surface resisting snags when dragged over rough surface.
The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.
The environmentally friendly braided sleeve is mainly used in computer power cords, audio video cables, automobiles, aviation, wire and cable industries, etc. It plays a protective and beautifying role and has certain shielding performance. It is most suitable for the audio medical industry, economical and easy to organize. At the same time, it has very good wear and corrosion resistance, suitable for wire harness protection, wear, corrosion, decoration and storage in various mechanical and electronic industries.
The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.
Properties: Excellent flexibility, can be loosely, easy to lead wires, excellent contractility, elasticity and abrasive resistance.
Specification:
| Size | Bundle Diameter | Description | ||
| Inch | mm | Min. | Max. | X * Y * Z |
| 1/8" | 3.2 | 3/32" | 1/4" | 40*1*0.25 |
| 1/4" | 6.4 | 1/8" | 7/16" | 32*3*0.20 |
| 3/8" | 9.5 | 3/16" | 5/8" | 48*3*0.20 |
| 1/2" | 12.7 | 1/4" | 3/4" | 56*3*0.20 |
| 3/4" | 19.1 | 1/2" | 1-1/4" | 72*3*0.20 |
| 1" | 25.4 | 1" | 2" | 96*3*0.20 |
| 1-1/4" | 29.0 | 3/4" | 1-3/4" | 96*3*0.25 |
| 1-1/2" | 40.0 | 1" | 2-1/2" | 96*4*0.25 |
| 1-3/4" | 45.0 | 1-1/4" | 2-3/4" | 120*3*0.25 |
| 2" | 50.0 | 1-1/2" | 3-1/2" | 120*4*0.25 |
|
|
